3 Product Description
Product System Overview
This product can provide industrial and commercial users with a complete solution of
outdoor integrated PV& energy storage system（the following will be referred to as
“PV+ESS”). The product can realize the management, storage and utilization of electric
energy through battery storage technology, which can help balance the energy
fluctuation between supply and demand and improve the efficiency of energy utilization.
Its main function is to distribute photovoltaic DC power or grid AC power to the storage
battery and inverter output. This enables users to benefit from services such as peak
shaving & load shifting, capacity & demand reduction, new energy upgrading and
consumption, demand response and backup power, etc. It can be widely used in
scenarios such as charging stations, factories, industrial parks, and commercial buildings.
This product can realize integrated delivery, intelligent operation and maintenance
management and all-round security assurance.

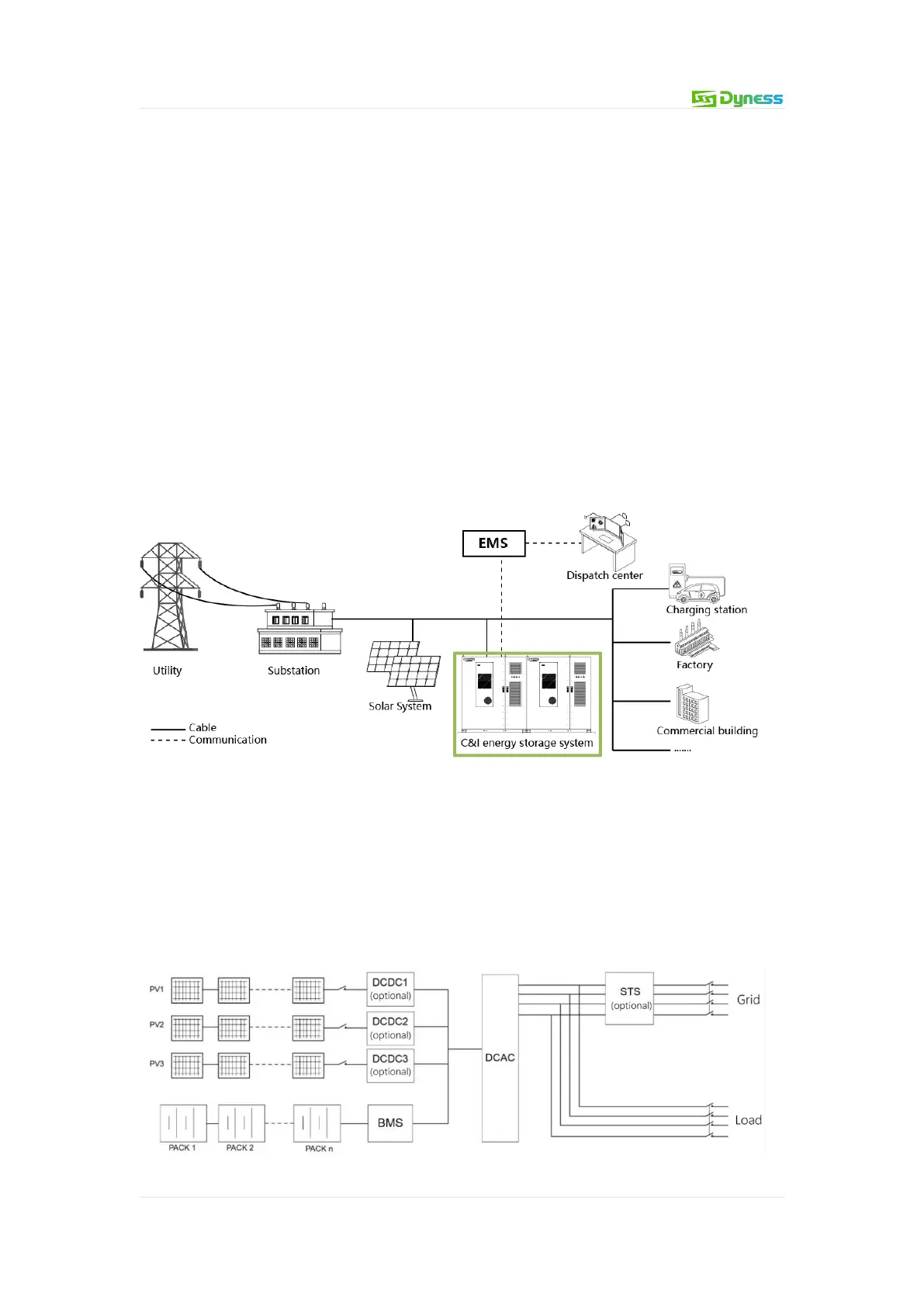

Figure 3-1 System working principle diagram
This product is a combination of high-voltage DC and three-phase AC system, the system
are modularized design and the capacity can be flexibly configured. The systematic safety
design ensures the efficient and long-life operation of the battery. The product can
achieve an integrated on-grid and off-grid solution, supporting seamless switching
between the two mode. The system has a storage capacity of 215 kWh.
Figure 3-2 System schematic topology diagram
