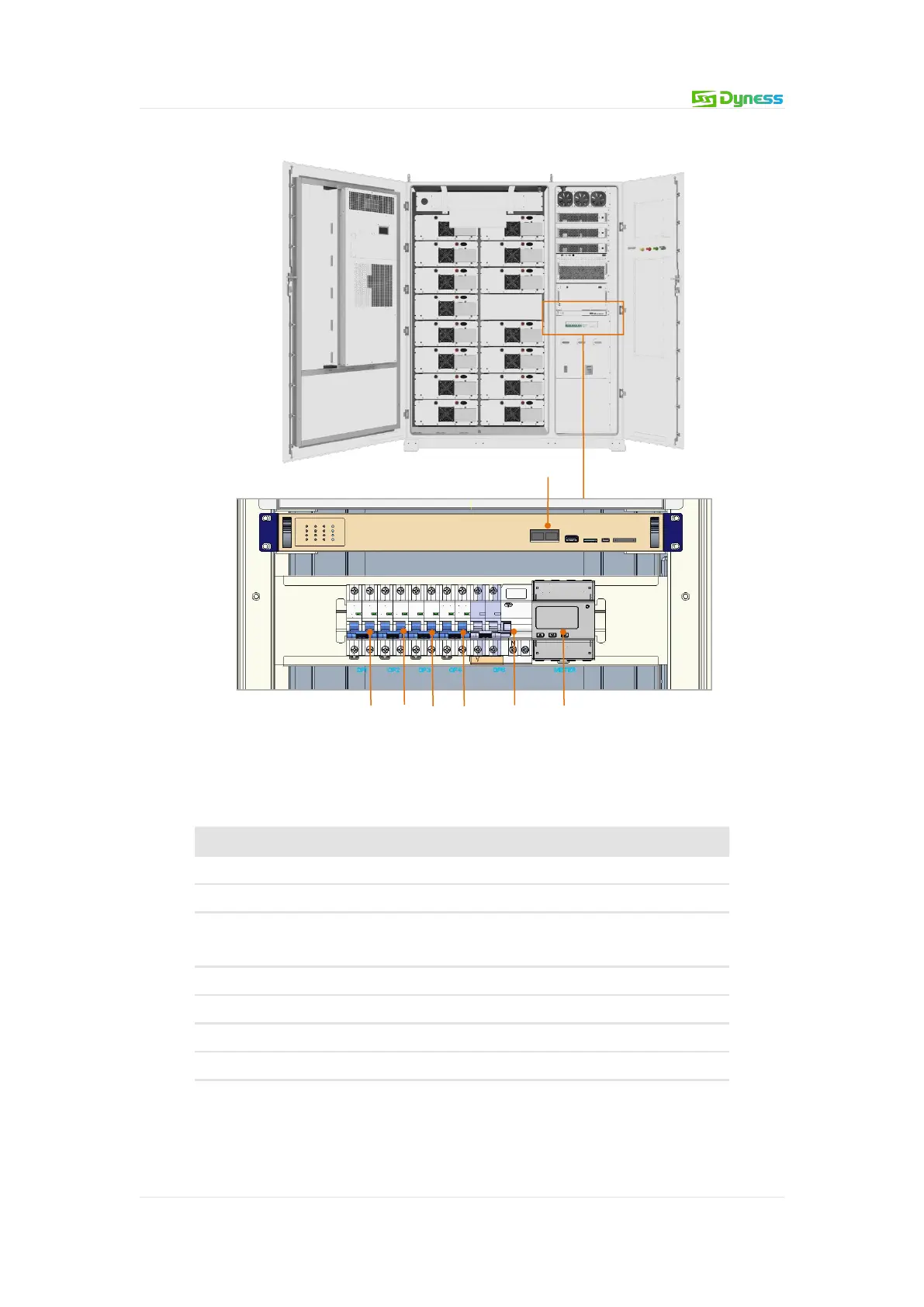

The BESS secondary electrical switches and external Ethernet ports are as follows:
1 2 3 4 5 6
7
Figure 3-6 BESS secondary switch
Table 3-7 Ethernet Port Function Terminal
NO,
Name
Functionality
1
QF1
UPS input switch
2
QF2
Battery fan power switch
3
QF3
System secondary power supply
switch
4
QF4
Socket switch
5
QF5
Air conditioning switch
6
METER
Three-phase meter
7
LAN1
Ethernet port
