Fitting notes

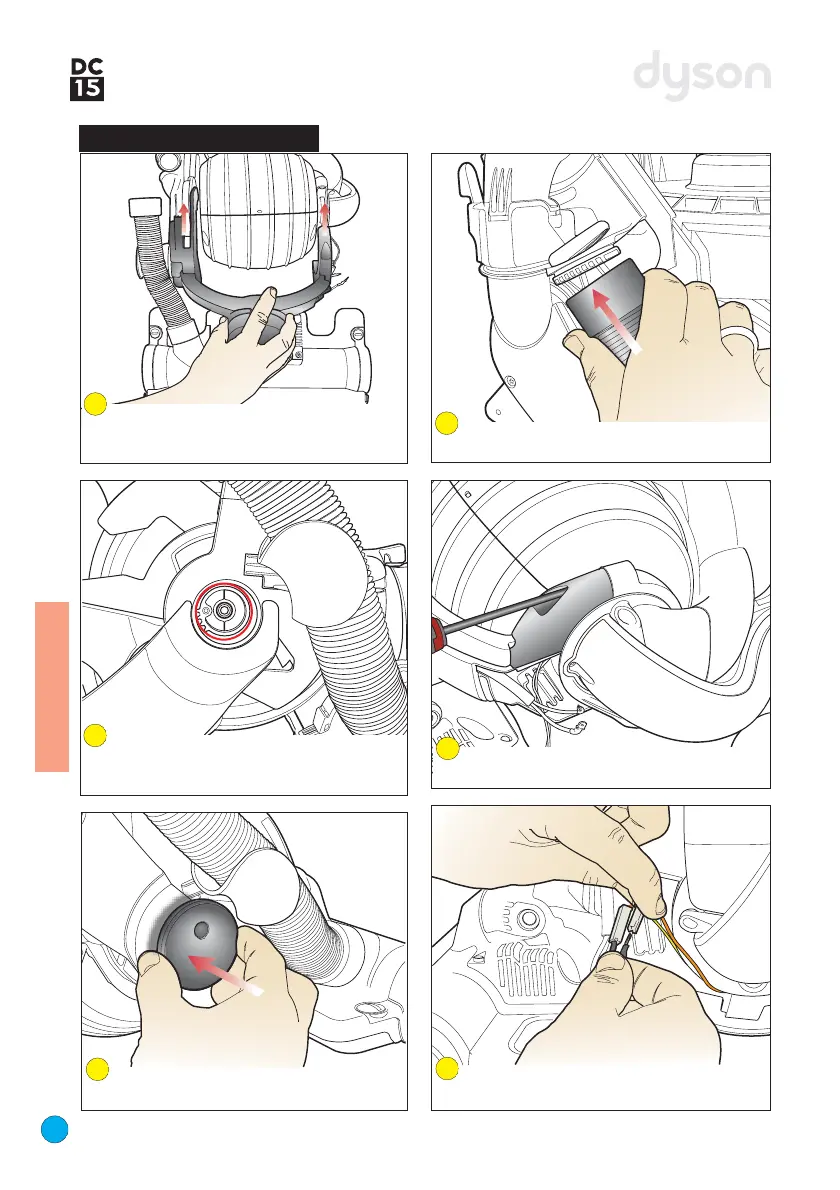

Refitting the cleanerhead
Locate the side of the yoke between the ball
and valve assembly. Push the cleanerhead into
position.
The cleanerhead is positioned correctly
when the hole in the side of the yoke assembly
surrounds the detail on the valve assembly.
Refit the cleanerhead hose onto the underside
of the valve assembly.
Refit the screw that attaches the top of the
yoke to the yoke bracket.
Locate the yoke spigot onto the end of the
motor bucket axle. Refit the screw.
Carefully reconnect the wires of the yoke
loom to the PCB to yoke loom.
