Dyson DC15 Service Manual

service manual
Issued 05/05
8
Fitting notes

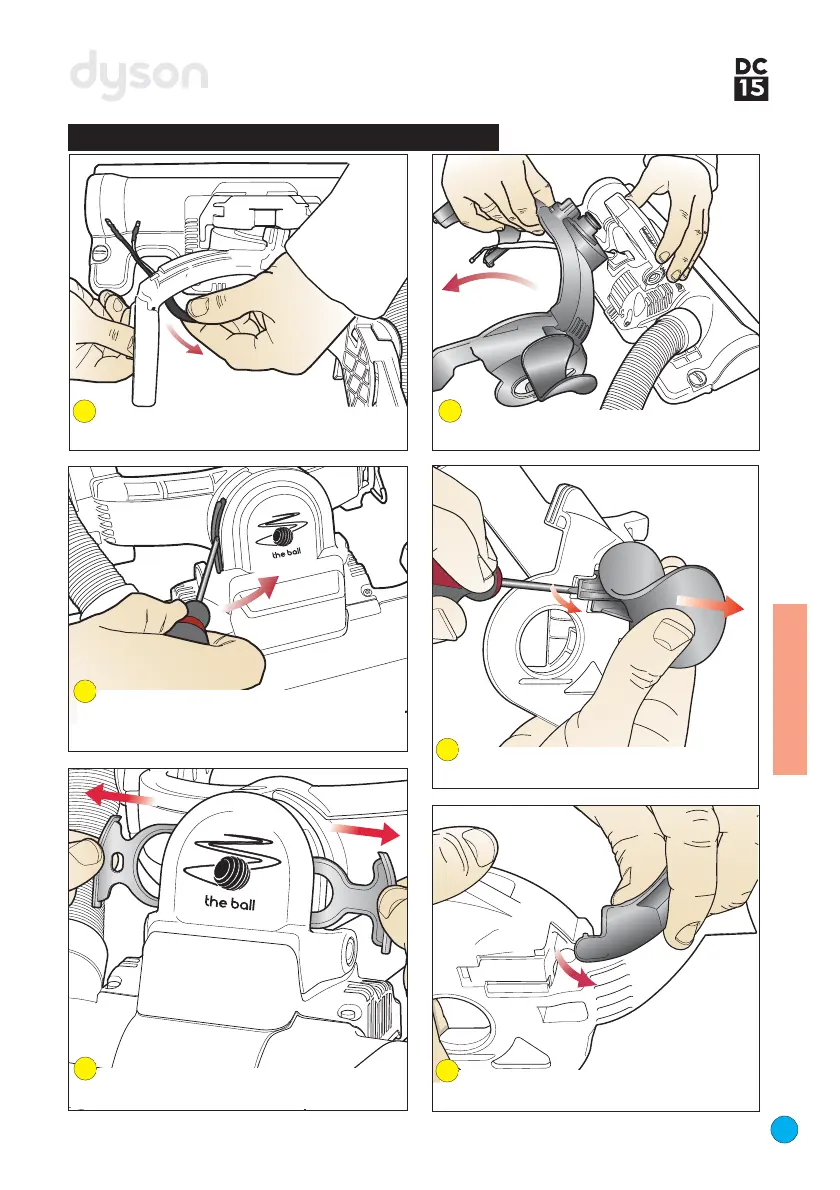

Removing and dismantling the yoke assembly
Release the yoke loom from the back of the
yoke assembly.
Remove both gimble clips from either side
of the cleanerhead top hinge.
Prise the large and small gimble clips out of
either side of the cleanerhead top hinge using a
thin flat bladed screwdriver.
Push the end of the gimble lock arm
assembly out of the same side of the yoke.
Prise the rear of the hose guard out of the
yoke using a thin flat bladed screwdriver.
Remove the yoke assembly from the rear
of the cleanerhead top hinge.
9
10
11
14
13
12

Dyson DC15 Specifications

General

Type	Upright
Ball Technology	Yes
Cord Length	35 ft
Filter Type	HEPA
Filter	Lifetime HEPA
Special Features	Ball technology
Cyclone Technology	Root Cyclone™ technology
