service manual
Issued 05/05
28
Fitting notes

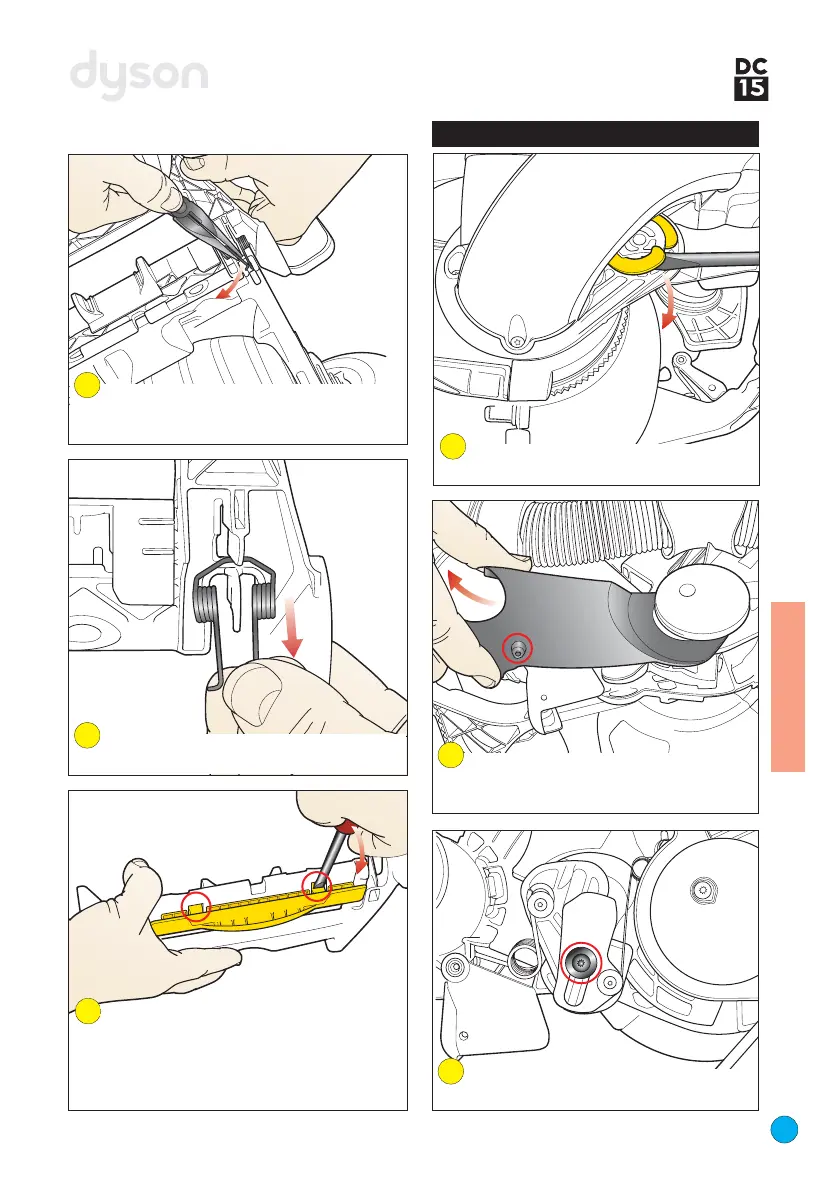

Removing the stabiliser
Carefully release both legs of the axlestand
spring from the stabiliser using a pair of long
nosed pliers.
Prise the stabiliser circlip off the end of the
stabiliser using a large flat bladed screwdriver.
Release the axle stand spring from the rear
of the axlestand.
Remove the screw in the static cover.
Slide the static cover out from under the yoke
spigot.
Undo the screw and washer from the
spring mount assembly.
To separate the pedal and pedal spring
from the axlestand, firmly release the catches
using a large flat bladed screwdriver. Once
released lift the pedal off the axlestand.
Remove the pedal spring from the cruciform.
