service manual
Issued 05/05
31
Fitting notes

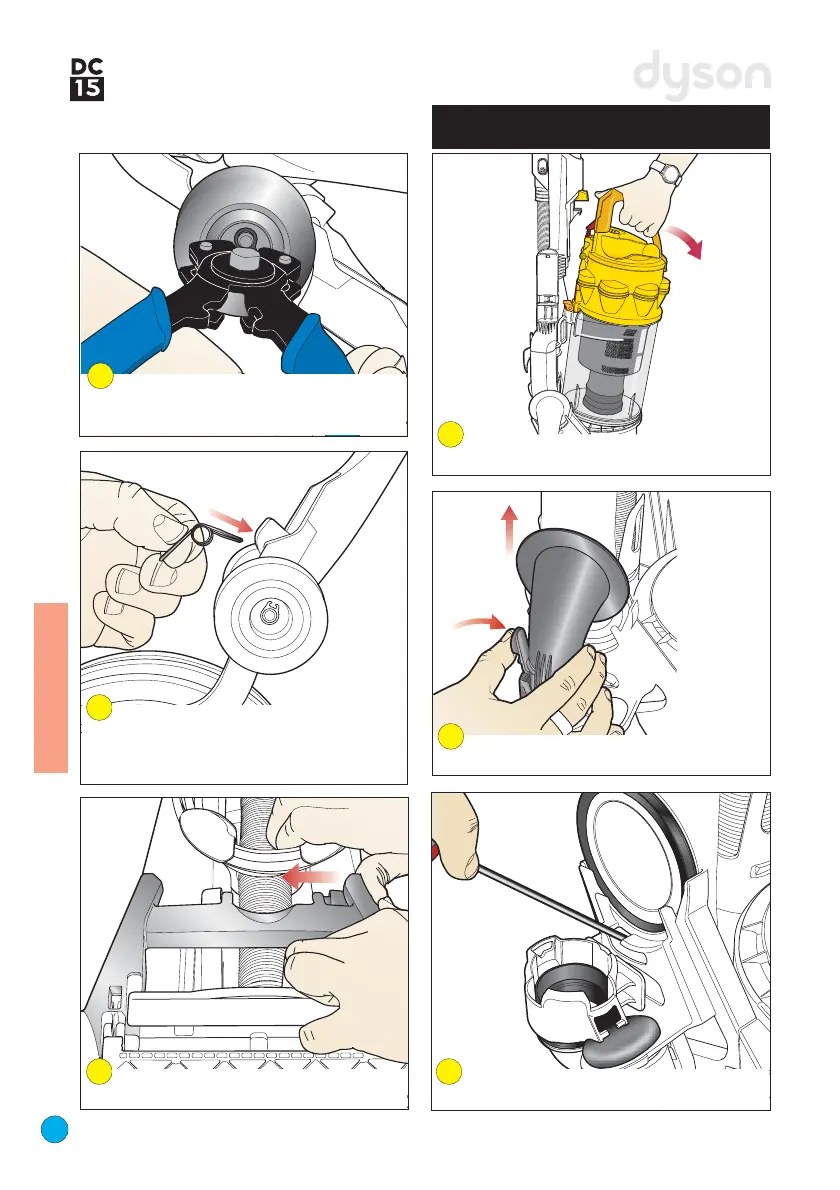

Removing and dismantling the
valve cuff and valve seal
Slide another washer, the second stabiliser
wheel and then the last washer onto the end of
the stabiliser axle. Carefully refit the circlip.
Press the release catch inwards and remove
the valve pipe from the valve assembly.
Refit the axlestand spring onto the hook
in the axlestand in the direction shown. Then
carefully refit both legs into the holes in the
stabiliser.
Firmly push the top of the axle stand into
the channel on the rear of the duct.
Press the cyclone release catch to remove
the cyclone and bin assembly from the product.
137
138
136
135
134
Locate a thin flat bladed screwdriver into the
channel below the duct valve seal.
139
