Dyson DC15 Service Manual

service manual
Issued 05/05
9
Fitting notes

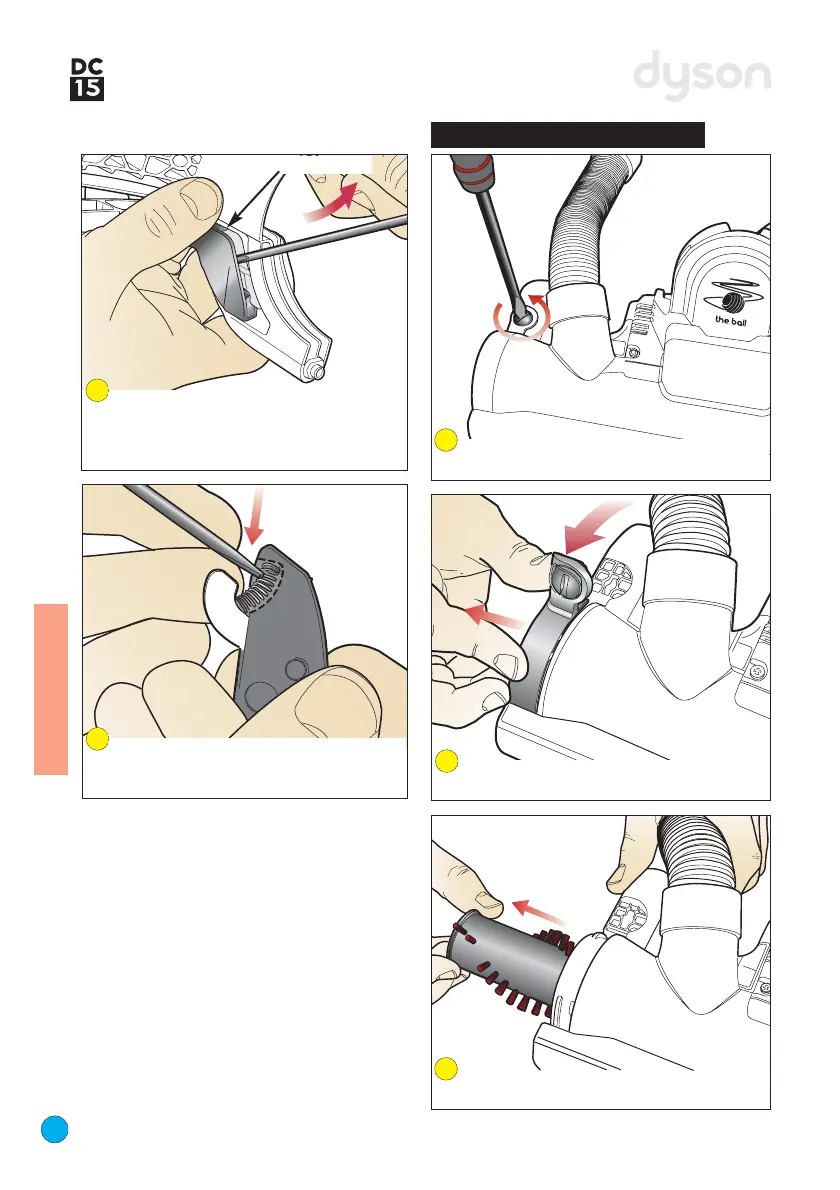

Prise the other end of the gimble lock arm
assembly out of the yoke using a thin flat
bladed screwdriver, ensuring that you retain the
gimble lock arm spring.
Carefully remove the actuator arm spring
from the gimble lock arm using a thin flat
bladed screwdriver.
Dismantling the cleanerhead
Undo the two fasteners on the rear of the
end cap assemblies.
Untwist both end cap assemblies and pull
from the side of the brush housing.
Pull both halves of the brushbar assembly
out of the brush housing.
15
16
19
18
17
gimble lock arm spring

Dyson DC15 Specifications

General

Type	Upright
Ball Technology	Yes
Cord Length	35 ft
Filter Type	HEPA
Filter	Lifetime HEPA
Special Features	Ball technology
Cyclone Technology	Root Cyclone™ technology
