service manual
Issued 05/05
38

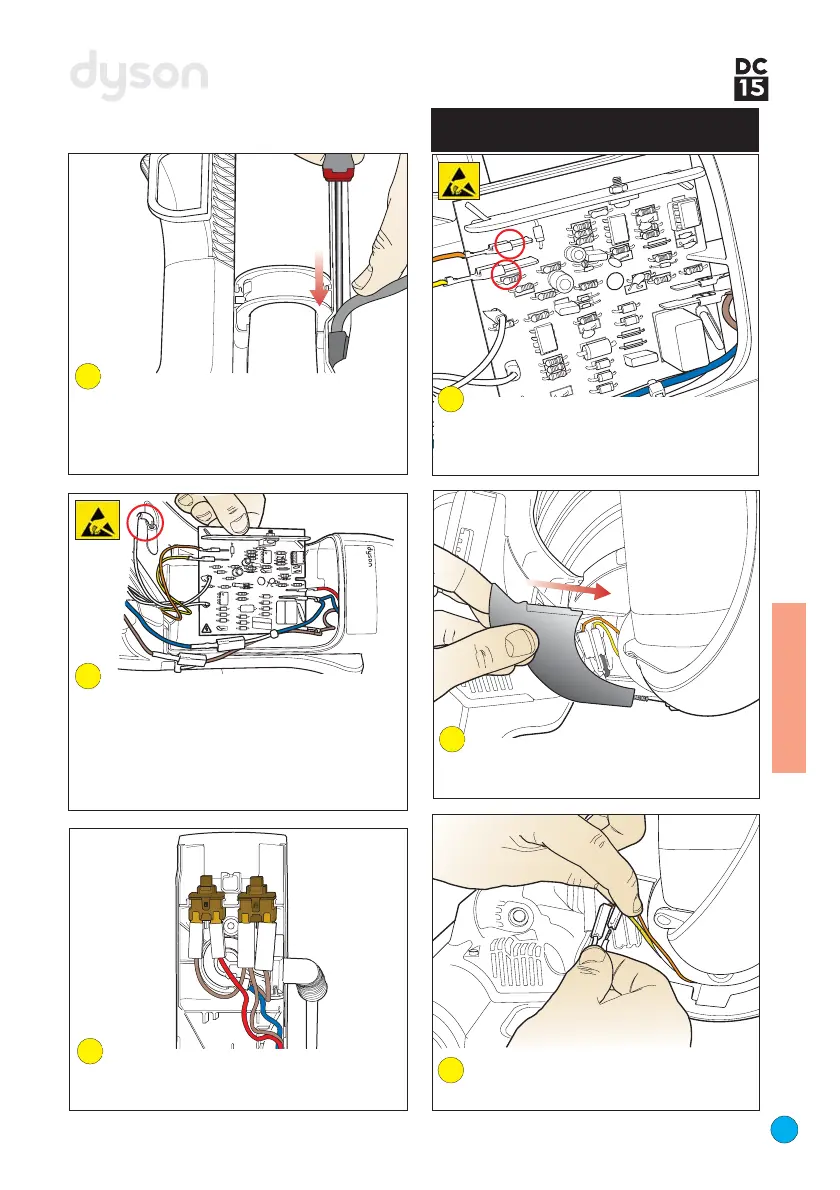

Fitting notes
Removing and refitting the PCB to
yoke loom
Locate the end of the internal cable into the
side of the duct. Push the grommet into the
duct. Important: ensure that the grommet is
adequately sealed within the duct as this is an
airway.
Rewire the internal cable (as previously
shown). Refit the switch cover, switch buttons
and screws.
Remove the duct cover and duct seal.
Carefully snip the 3 cable ties that hold the
looms together. Detach the PCB to yoke loom
from the PCB.
Undo the two screws that hold the yoke
assembly onto the yoke bracket. Slide the
yoke cover off of the yoke.
Disconnect the PCB to yoke loom from the
yoke loom.
Re-attach the internal cable to the PCB.
Connect the live and neutral wires to the vac
motor loom. Hold the wires together with a
cable tie. Dress all wires neatly into the duct.
IImmppoorrttaanntt::
ensure the upright switch loom is
seated under the screw boss. Refit the duct
cover and seal.
175
176
178
179
180
177
