service manual
Issued 05/05
35

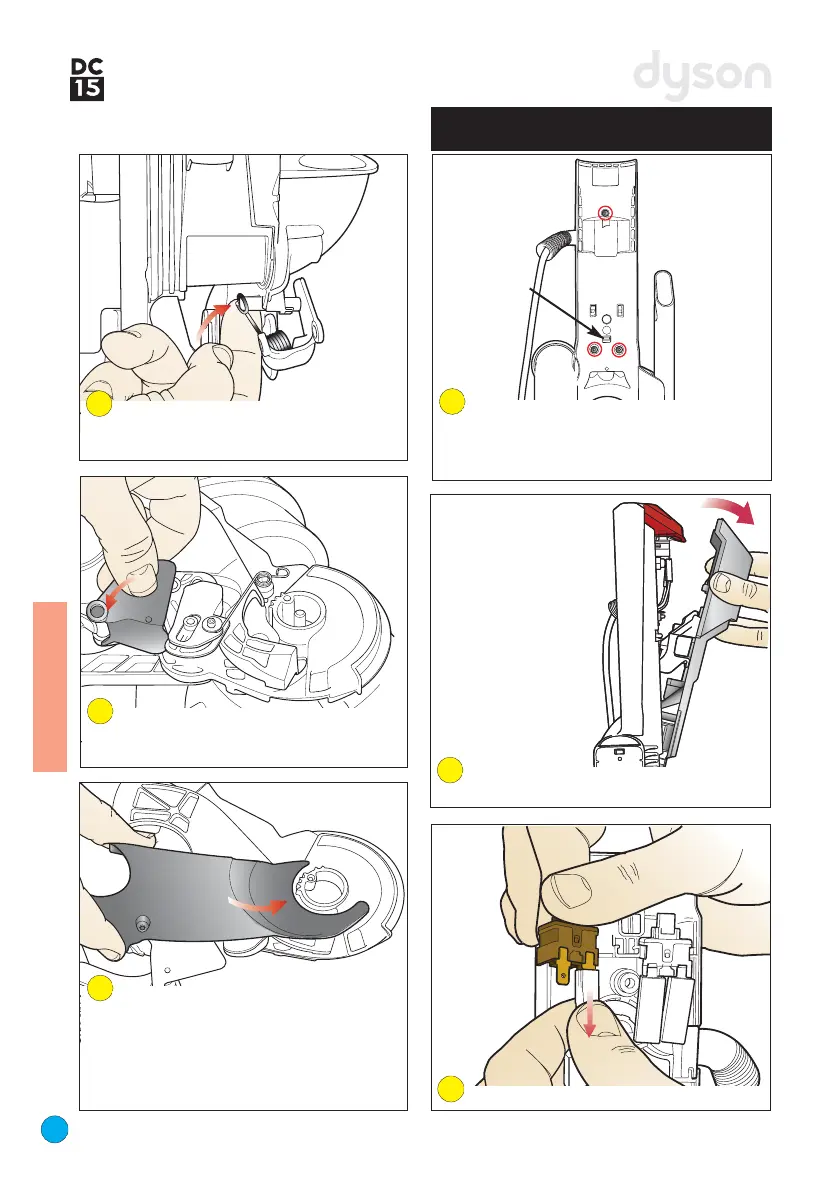

Fitting notes
Removing the powercord assembly
and switches
Refit the moving cover onto the rear
spring. Refit the rear spring onto the retaining
peg on the rear of the valve assembly.
Refit both locators on the moving cover
onto the retaining pegs on the rear of the
valve assembly.
Carefully remove all wires from both switches.
Pull the switch cover off the front of the
product. Lift out both of the switch buttons.
Remove the wand handle from the top of
the duct. Undo the three screws in the rear of
the duct. Gently push the switch cover release
catch using a torx screwdriver.
Refit the static cover onto the base of the
valve pipe. Refit the screw.
TThhee ffoolllloowwiinngg ppaarrttss sshhoouulldd tthheenn bbee
rreeffiitttteedd aass pprreevviioouussllyy sshhoowwnn::
mmoottoorr bbuucckkeett aanndd bbaallll,, ((ppaaggeess 2266-
-2277))
cclleeaanneerrhheeaadd aanndd yyookkee,, ((ppaaggeess 1199--2200))
158
161
162
159
160
163
Switch cover
release catch
