Dyson DC15 Service Manual

service manual
Issued 05/05
32

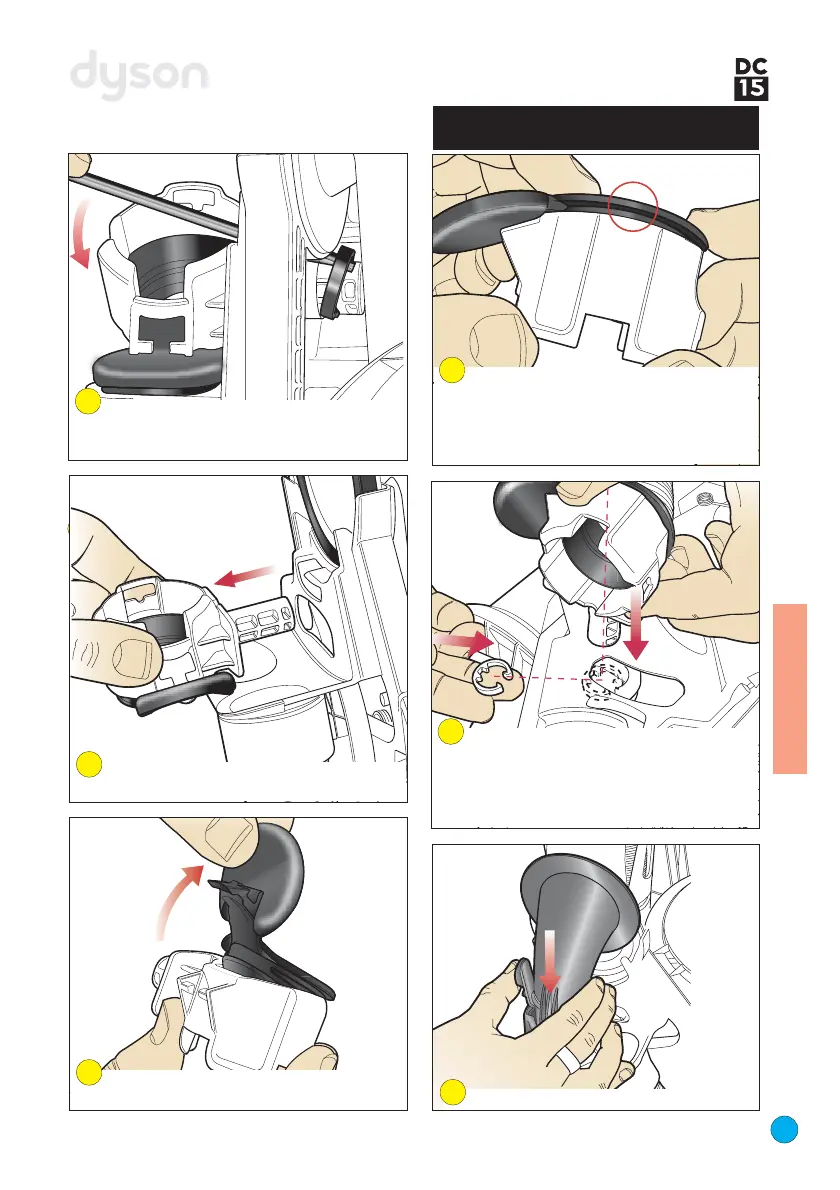

Fitting notes
Assembling and refitting the valve
cuff and valve seal
Firmly but carefully pull the valve seal out of
the valve cuff.
Locate the tab on the valve seal into the
retainer on the valve cuff. Lower the remainder
of the valve seal into the valve cuff. When
fitted correctly, there should be a gap between
the top of the valve cuff and valve seal.
Lower the valve pipe into the valve assembly.
Locate the end of the screwdriver under the
retaining clip. Prise the retaining clip off the
end of the valve cuff.
Slide the valve cuff and valve seal out of the
valve assembly.
Position the retaining clip behind the channel
below the duct valve seal. Lower the valve cuff
and valve seal into the channel. Locate the
retaining clip over the end of the cuff. Slide the
retaining clip onto the cuff until it locks in place.
140
143
144
141
145
142

Dyson DC15 Specifications

General

Type	Upright
Ball Technology	Yes
Cord Length	35 ft
Filter Type	HEPA
Filter	Lifetime HEPA
Special Features	Ball technology
Cyclone Technology	Root Cyclone™ technology
