Fitting notes
Removing and dismantling the
axlestand

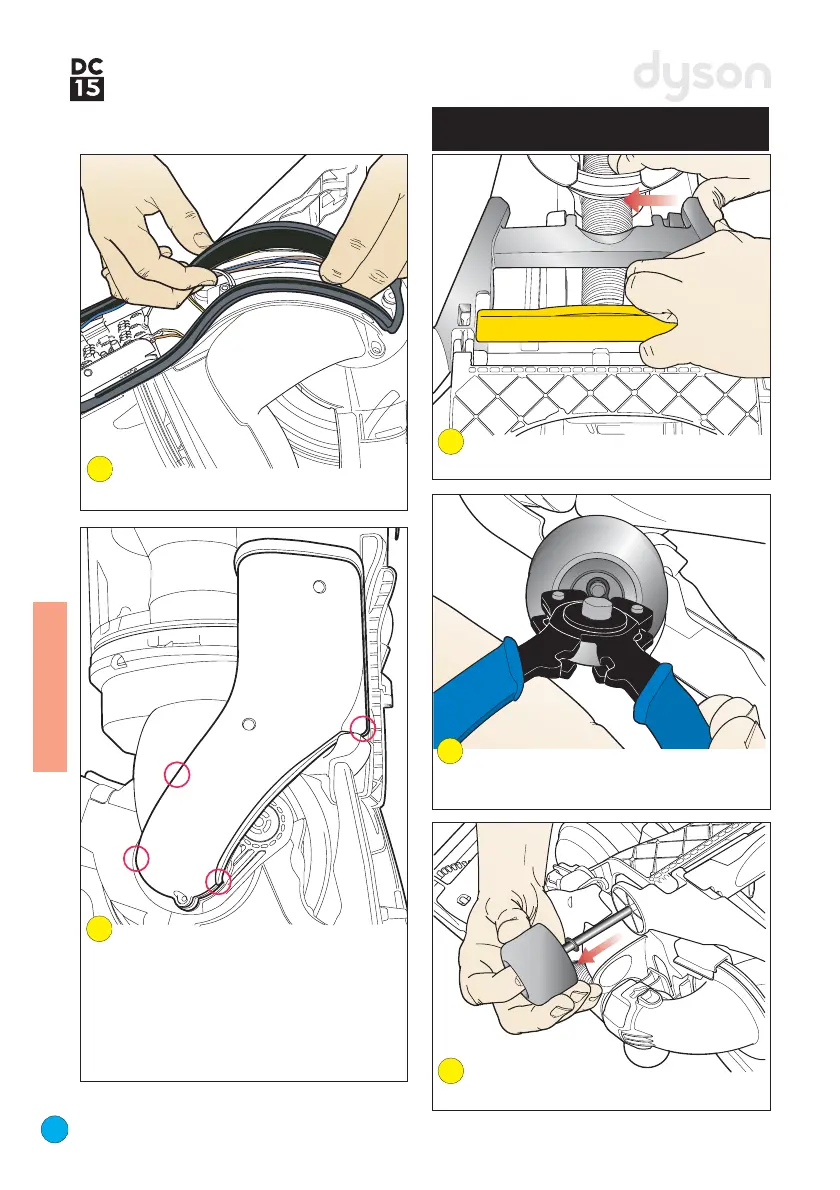

Fit the duct cover seal to the duct. Dress
the looms into the duct channel under the seal.
Locate the top of the duct cover into the top
of the duct cover seal. Lower the cover into the
seal ensuring it is adequately sealed around all
edges. Special care should be taken at the
points highlighted. Refit the 3 screws ensuring
the shorter one fits into the top hole.
Refit the cleanerhead and yoke as previously
shown.
Slide the other stabiliser wheel, axle, circlip
and two remaining washers out of the axlestand.
Carefully remove the circlip from the end of
the stabiliser axle using a pair of circlip pliers.
Remove the stabiliser wheel and two washers.
Firmly push the top of the axlestand out of
the channel in the rear of the duct.
