Dyson DC15 Service Manual

service manual
Issued 05/05
22
Fitting notes

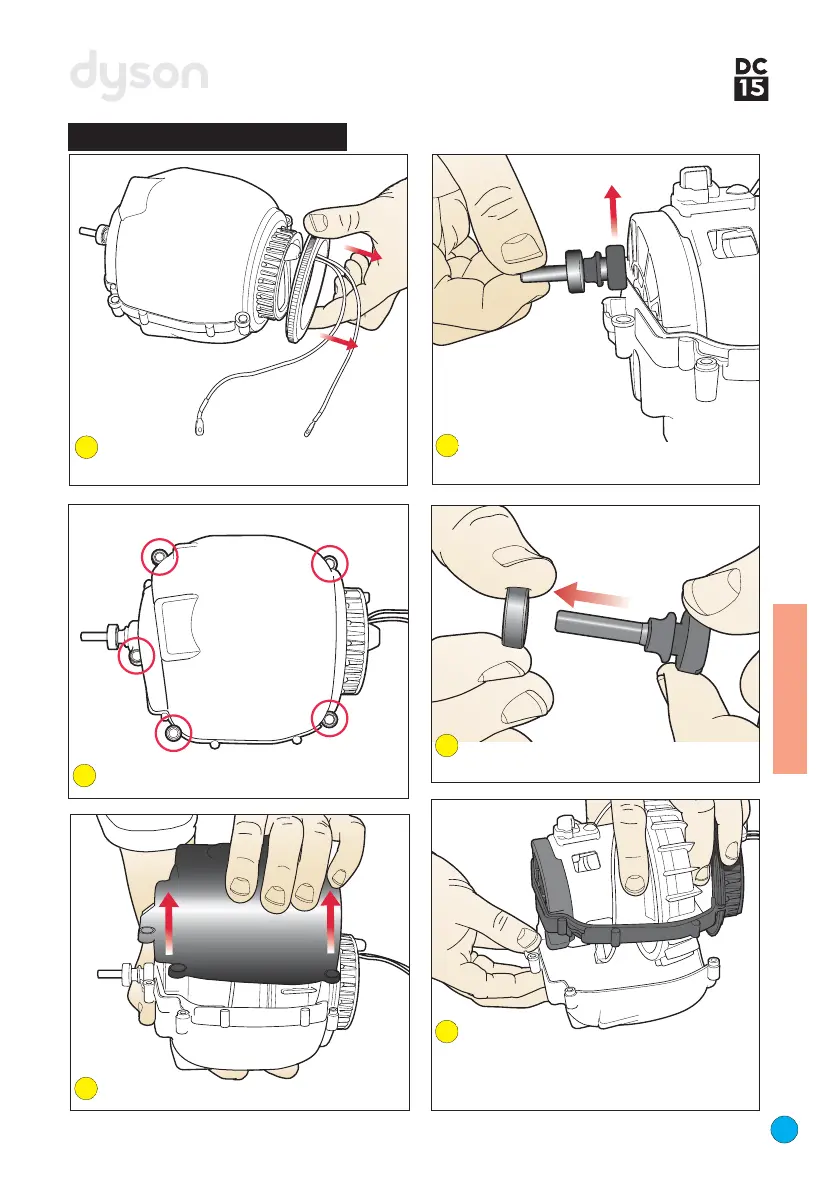

Dismantling the motor bucket
Lift the motor bucket top off the base.
Peel the motor seal/loom assembly off the
motor bucket base. Lift the motor and motor
bucket seal/loom assembly out of the motor
bucket base.
Slide the small bearing off the motor
bucket axle.
Lift the small bearing and motor bucket
axle out of the motor bucket base.
Undo the five screws in the motor bucket.
Remove the large bearing from the rear of
the motor bucket seal/loom assembly.
92
91
90
87
88
89

Dyson DC15 Specifications

General

Type	Upright
Ball Technology	Yes
Cord Length	35 ft
Filter Type	HEPA
Filter	Lifetime HEPA
Special Features	Ball technology
Cyclone Technology	Root Cyclone™ technology
