service manual
Issued 05/05
30
Fitting notes

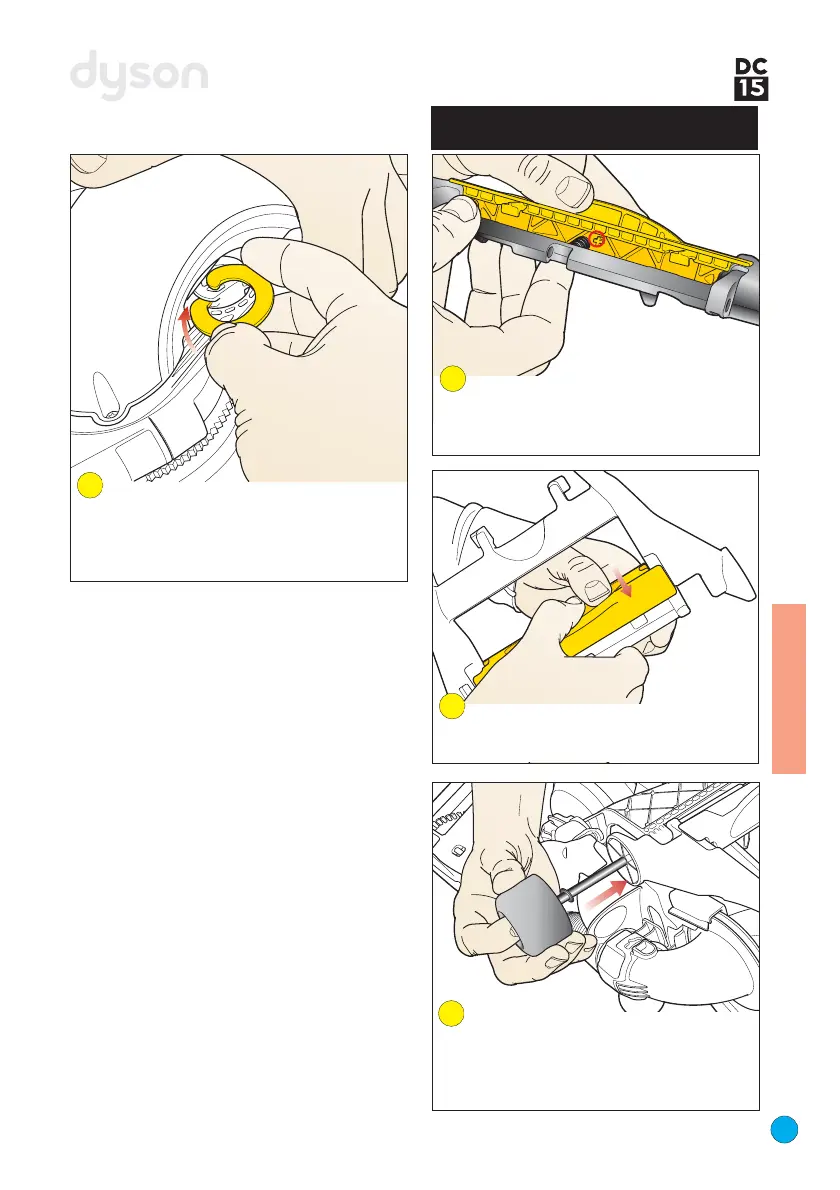

Assembling and refitting the
axlestand
Locate the end of the stabiliser circlip into
the channel on the end of the stabiliser. Keep it
held in place in the channel whilst twisting.
Continue to twist until the end of the circlip
protrudes around the other side of the channel.
Fit the pedal spring onto the cruciform on
the axlestand. Lower the pedal onto the
axle stand ensuring the cruciform on the base
of it aligns with the spring.
Press the pedal very firmly onto the
axlestand until both release catches snap over
the retainers.
Align the base of the axlestand with the
top of the stabiliser. Slide the stabiliser axle, a
washer, a stabiliser wheel, a second washer
and a circlip into the channel made by both
parts.
131
132
130
133
