Dyson DC15 Service Manual

service manual
Issued 05/05
34
Fitting notes

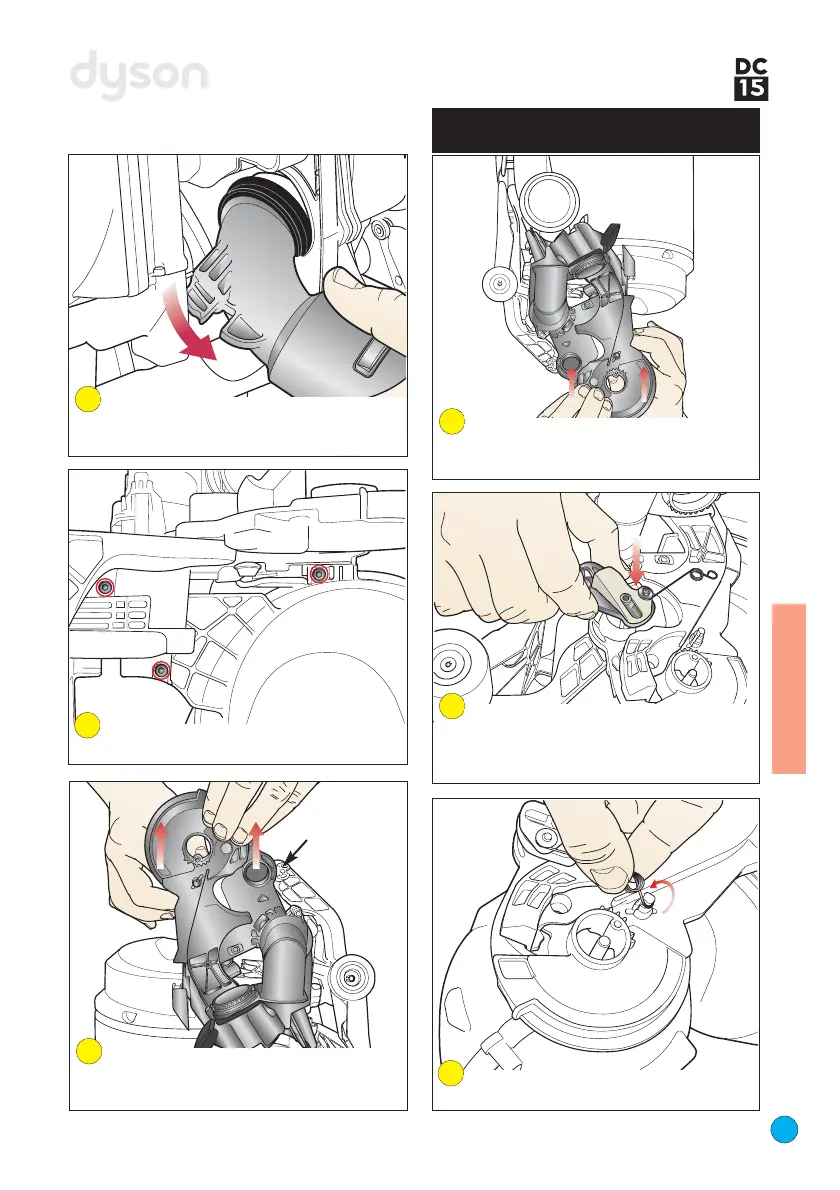

Assembling and refitting the valve
assembly
Remove the wand from the hose/u-bend
assembly. Lower the hose/u-bend assembly.
Then pivot it out of the retaining clip.
Undo the three screws in the base of the
duct.
Remove the end of the stabiliser from the
side of the valve assembly. Pull the valve
assembly out of the base of the duct.
Push the stabiliser to one side. Slide the
valve assembly into the base of the duct below
the duct valve seal. Refit the three screws.
Locate the stabiliser into the side of the
valve assembly. Slide the spring mount
assembly into the side of the stabiliser. Refit
the screw and washer.
Refit the front spring onto the peg on the
side of the valve assembly.
152
155
156
153
157
154
Stabiliser

Dyson DC15 Specifications

General

Type	Upright
Ball Technology	Yes
Cord Length	35 ft
Filter Type	HEPA
Filter	Lifetime HEPA
Special Features	Ball technology
Cyclone Technology	Root Cyclone™ technology
