Dyson DC15 Service Manual

service manual
Issued 05/05
36

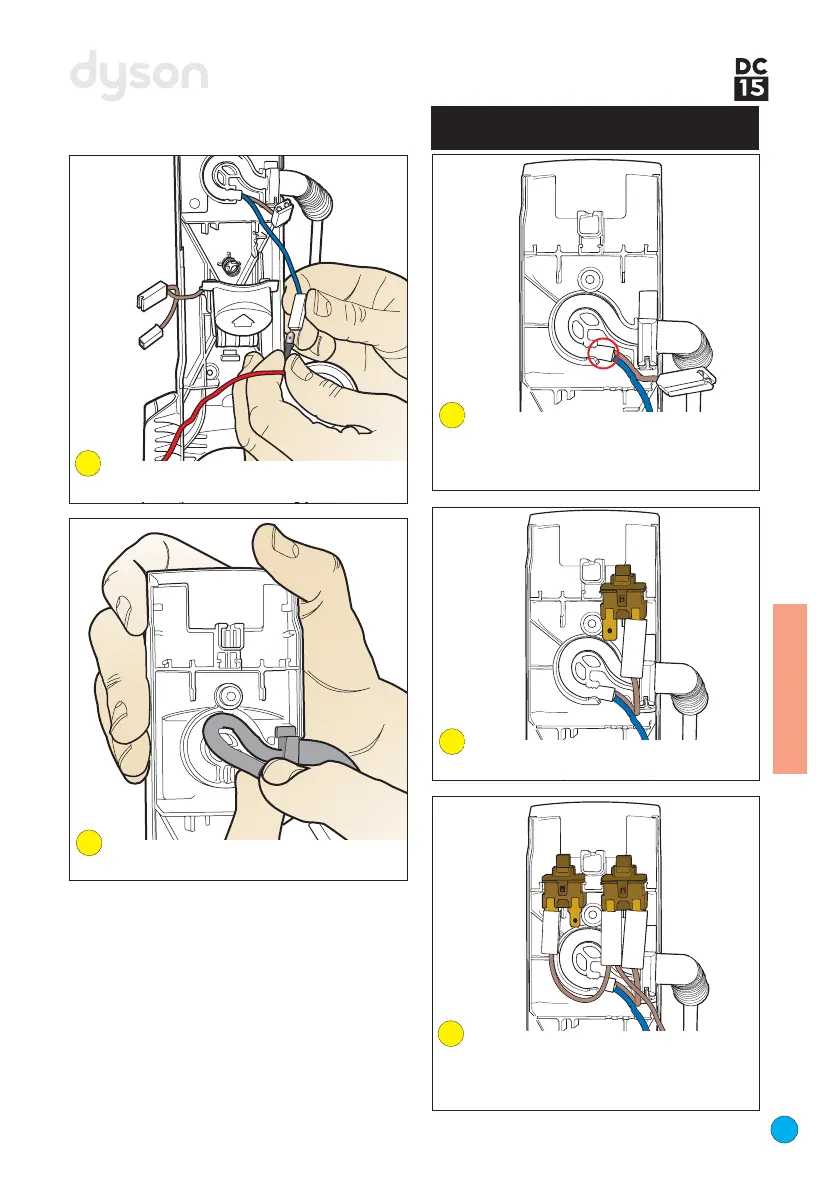

Fitting notes
Disconnect the neutral wire from the internal
cable.
Release the powercord protector from the
front of the duct.
Refitting the powercord assembly
and switches
Fit the powercord assembly into the duct
ensuring that the end of the outer insulation
extends past the screw boss. Slide the
protector into the side of the duct.
Fit the ON/OFF switch into the duct.
Re-attach the live wire to the switch.
Re-attach the live (brown) wire from the
internal cable to the ON/OFF switch. Fit the
brushbar switch into the duct. Attach the live
(brown) linked wire to the brushbar switch.
164
166
167
165
168
