Dyson DC15 Service Manual

service manual
Issued 05/05
21
Fitting notes

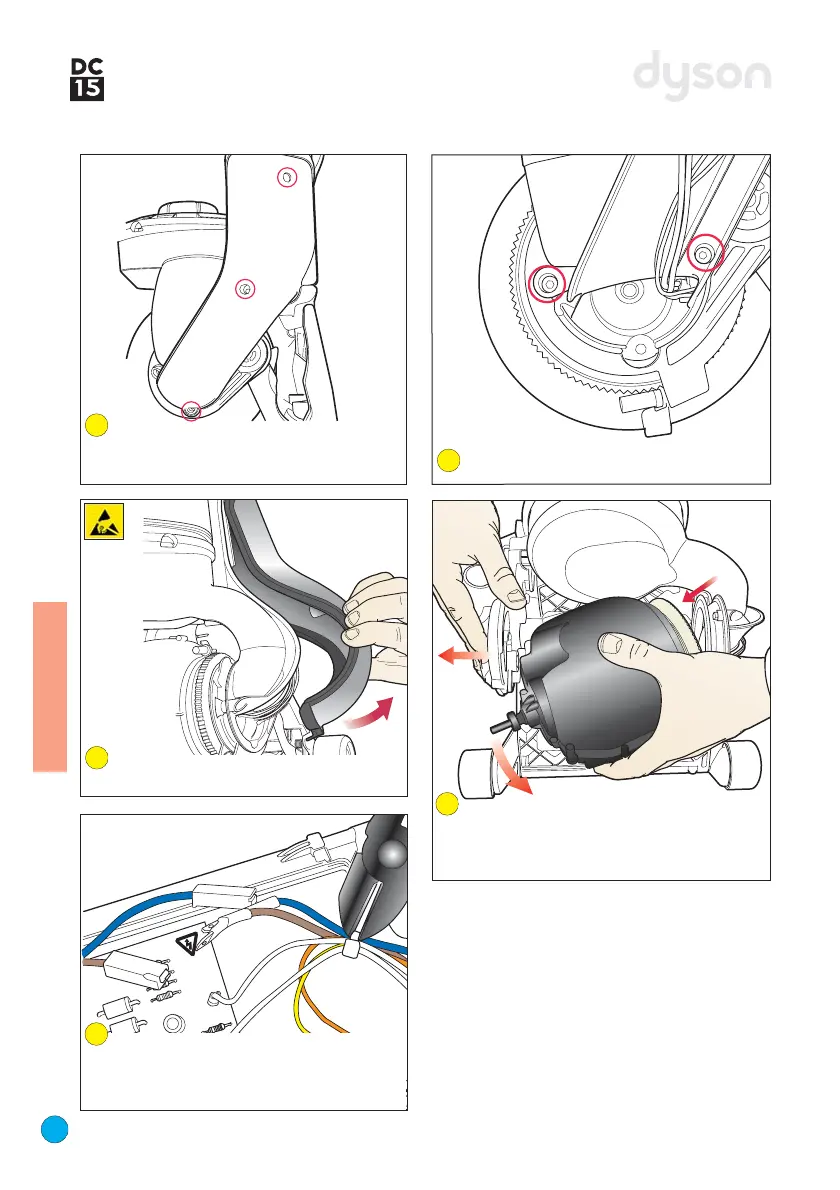

Undo the three screws in the side of the
duct cover noting that the top screw is shorter
than the other two.
Undo the two screws in the side of the duct.
Force the valve assembly over to one side.
Release the motor bucket axle from the hole in
the valve assembly. Firmly release the motor
bucket from the side of the duct.
Pull the duct cover and seal off the side of
the duct.
Disconnect the live and neutral wires
between the vac motor loom and the internal
cable. Carefully snip the cable ties that hold
the looms together.
82
85
86
83
84

Dyson DC15 Specifications

General

Type	Upright
Ball Technology	Yes
Cord Length	35 ft
Filter Type	HEPA
Filter	Lifetime HEPA
Special Features	Ball technology
Cyclone Technology	Root Cyclone™ technology
