Dyson DC15 Service Manual

service manual
Issued 05/05
10

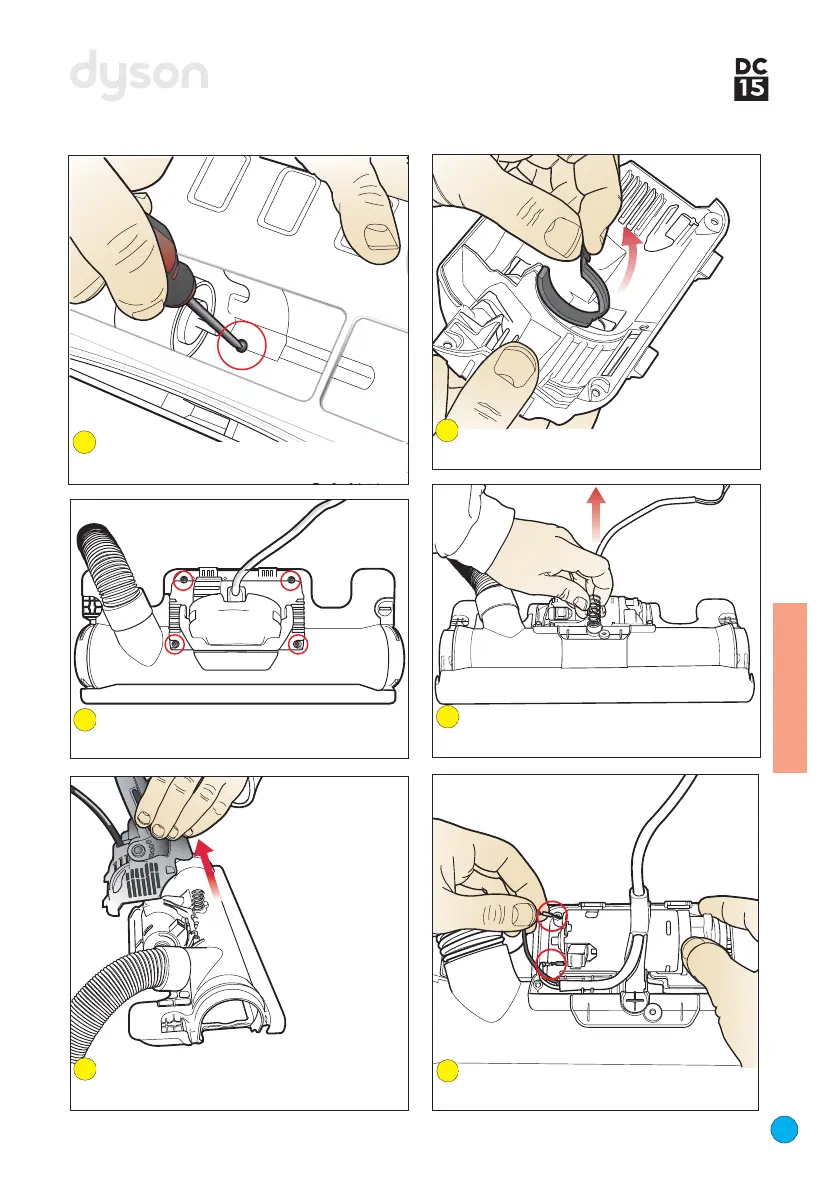

Fitting notes
Undo the screw in the underside of the brush
housing.
Undo the four black screws in the top of the
brushbar motor cover.
Remove the brushbar motor cover assembly
off the top of the brush housing.
Lift out the two brushbar motor top mounts
from inside the brushbar motor cover assembly.
Remove the cleanerhead spring from the
top of the brush housing.
23
24
22
21
20
Carefully unclip the yoke loom wires from
the end of the brushbar motor assembly.
25

Dyson DC15 Specifications

General

Type	Upright
Ball Technology	Yes
Cord Length	35 ft
Filter Type	HEPA
Filter	Lifetime HEPA
Special Features	Ball technology
Cyclone Technology	Root Cyclone™ technology
