Dyson DC15 Service Manual

service manual
Issued 05/05

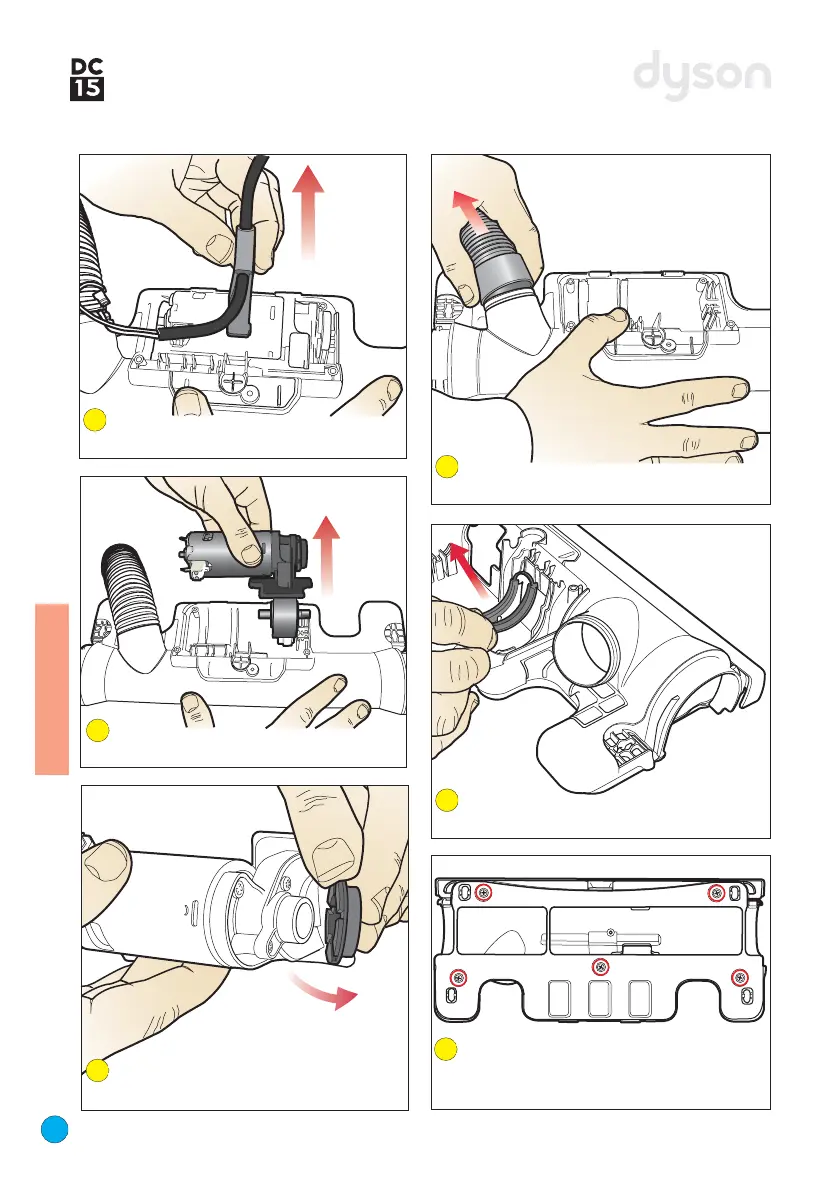

Undo the five Pozi screws in the soleplate.
Note that the central screw is shorter than the
other four.
31
11
Fitting notes
Lift the yoke loom off the top of the brushbar
motor.
Lift the brushbar motor assembly out of the
brush housing.
Remove the brushbar motor end mount
from the end of the brushbar motor assembly.
Firmly pull the cleanerhead hose off the rear
of the brush housing.
Carefully remove the brushbar motor bottom
mount from inside the brush housing.
28
29
30
27
26

Dyson DC15 Specifications

General

Type	Upright
Ball Technology	Yes
Cord Length	35 ft
Filter Type	HEPA
Filter	Lifetime HEPA
Special Features	Ball technology
Cyclone Technology	Root Cyclone™ technology
