Dyson DC15 Service Manual

service manual
Issued 05/05
7

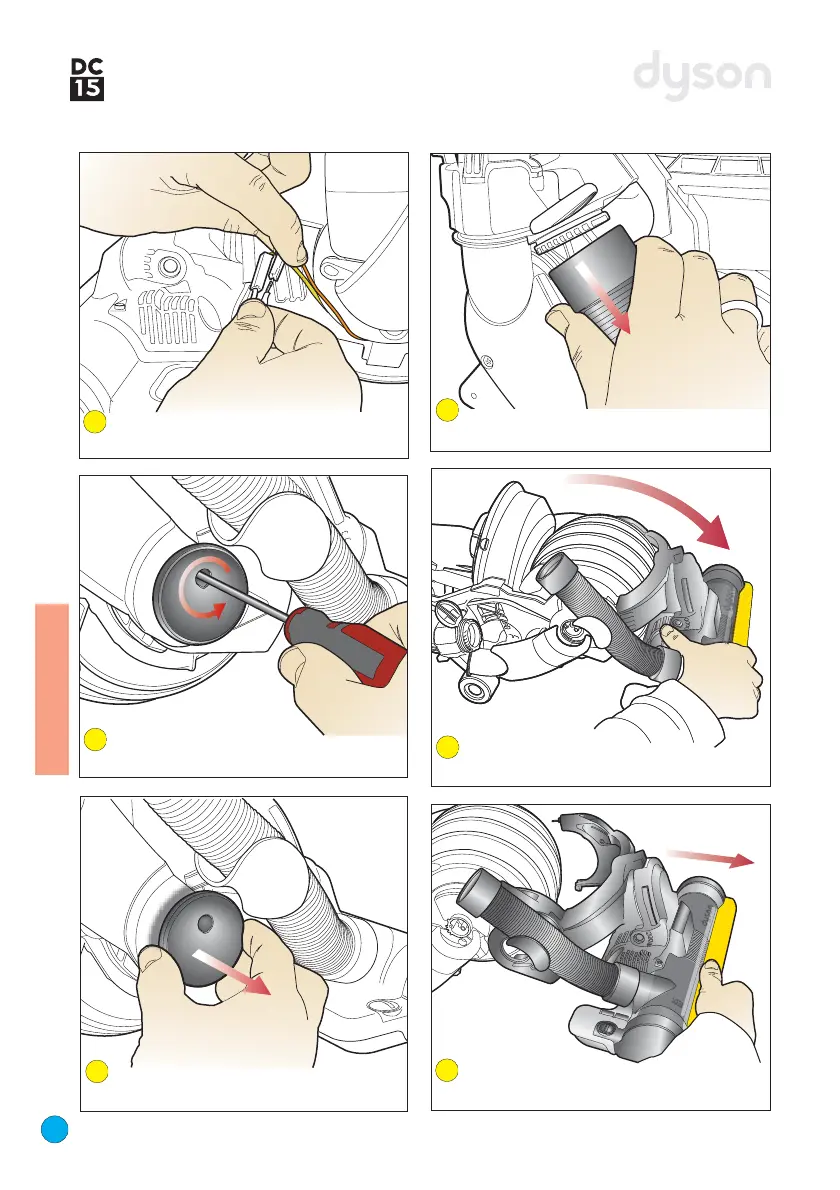

Fitting notes
Remove the yoke spigot from the side of
the product.
Pull the cleanerhead hose off the underside
of the valve assembly.
Drop the cleanerhead as far forward as
possible.
Pull the cleanerhead away from the front of
the product.
5
6
7
8
Turn the product around and undo the
screw in the yoke spigot.
4
Carefully disconnect the yoke loom from
the PCB to yoke loom.
3
