18 E-MU Systems
Setup

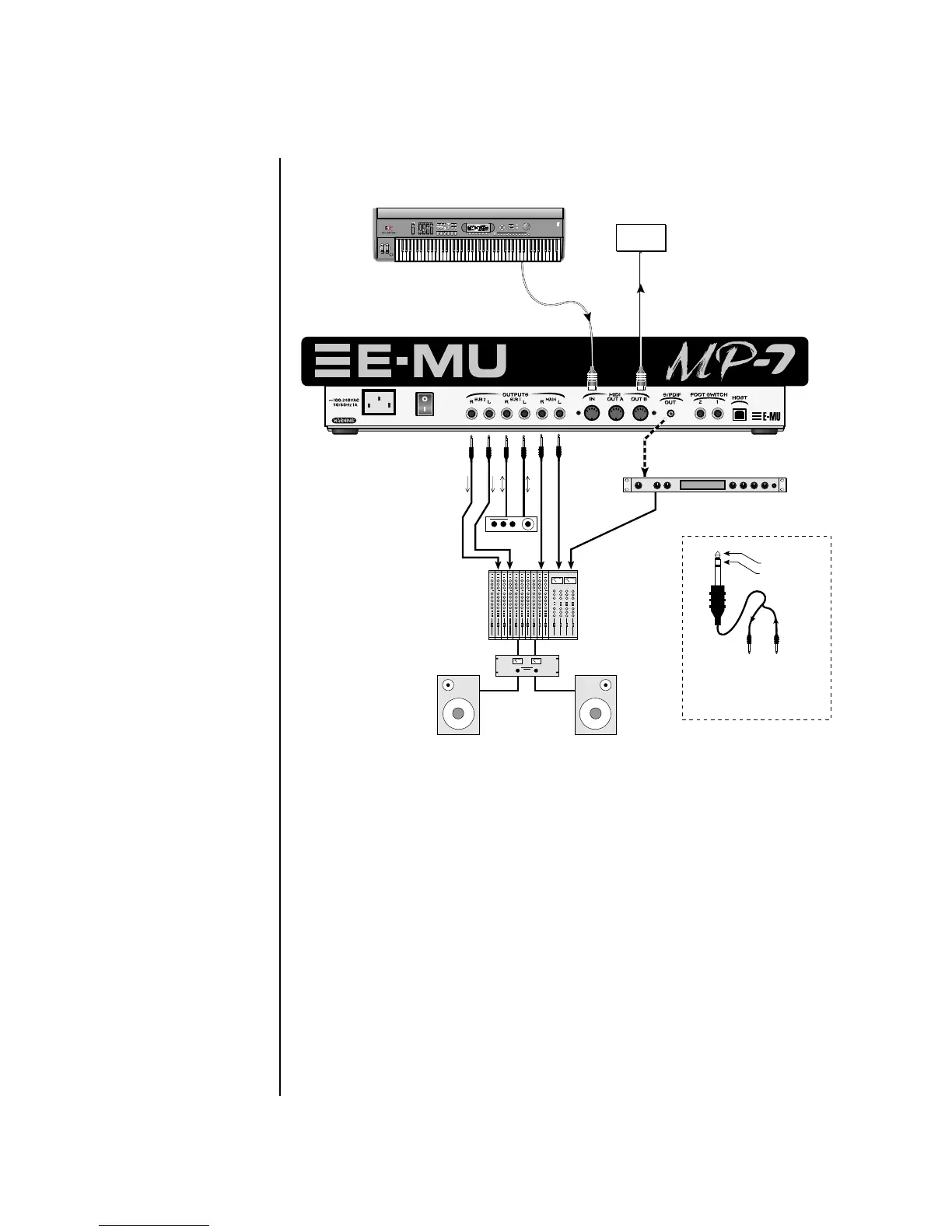

Performance Setup
Performance Setup
MIDI In
In this setup, MP-7 is additionally controlled by a MIDI keyboard.
MIDI Out
In this setup, MP-7‘s MIDI data and then be retransmitted out port B. See
page 163.
Audio Outputs
The Sub 1 and Sub 2 output jacks are stereo jacks. The tip of each jack
(accessed when a standard phone plug is inserted) connects to the left or
right output of that group. The S/PDIF output is a digital copy of the stereo
signal on the main outputs.
If you insert a stereo plug into one of the Sub Outputs, the ring of the plug
serves as a signal Return which sums into the Main outputs.
TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK,
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
Sub Output
Return
(To Main Output)
Tip Ring
To Effect From Effect
SEND/RETURN CABLE
Send/Return
Main Outs to Mixer In
Effect Device
Additional
MIDI
Devices
MIDI Controller
(MIDI Keyboard, Sequencer)
MIDI Out
MIDI In
S/PDIF In
Analog Out
Send
Signal is sent out on tip of plug and
returned to main outputs via ring of plug.
Volume Mix Data Entry Control 1 Control 2 Control 3 Control 4
Effect: Swirling Reverb
Parameter Edit
Digital Effect
EMULATOR
PRESET
SAMPLE
SEQUENCER
PAGE
LEVEL
PRESET SELECT
REAL TIME CONTROLLERS
ASSIGNABLE KEYS
ENTER
EXIT
RETURN
0.987654321
