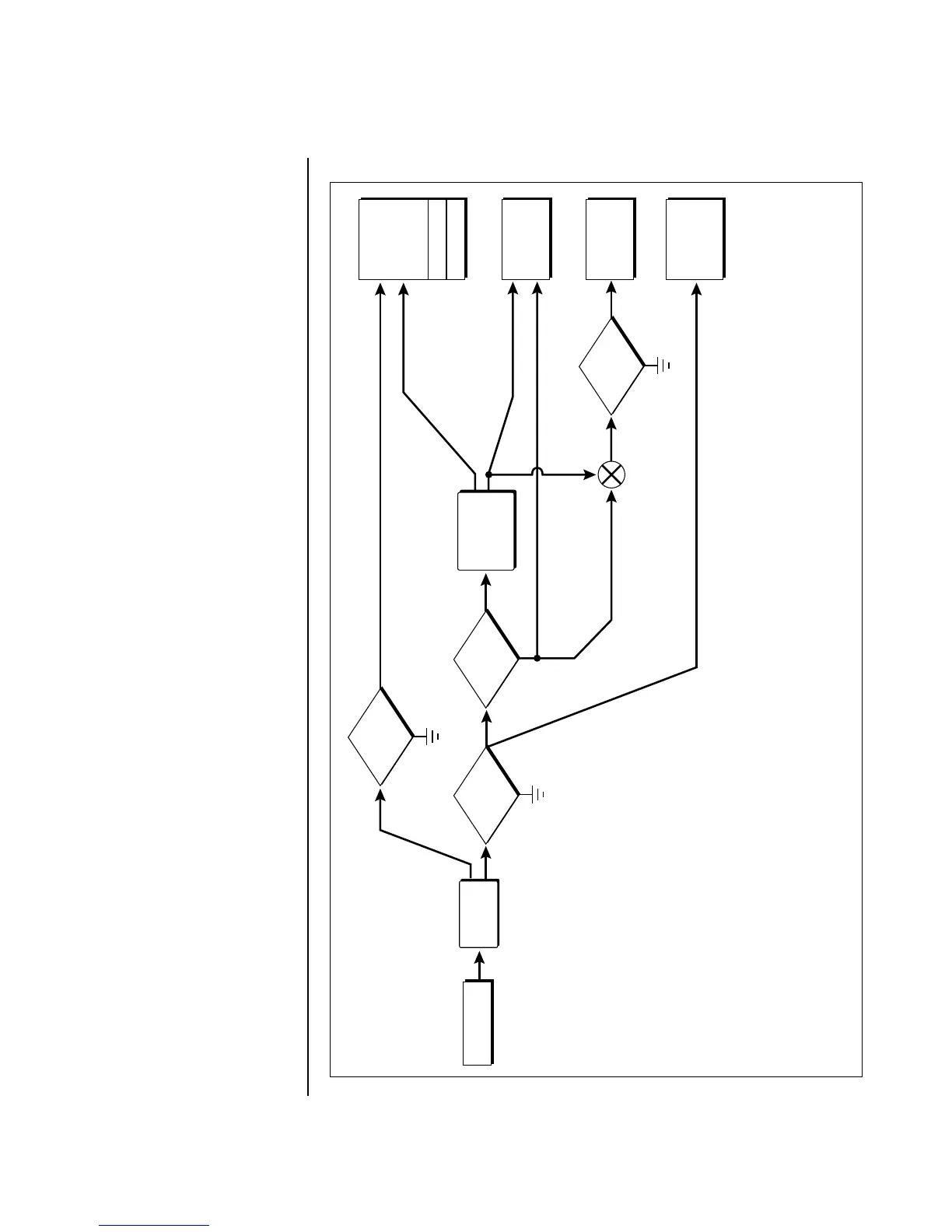

Quick Edit
Local
Control
Knobs
Transmit
MIDI
Synth
Engine
Preset
Edit
Sequencer
Recording
Input
Sequencer
Track
Routing
Basic
Channel
B
A
Off
On
Off
On
Rechan
On/Off
C
D
E
Off
Off
On
Knobs
Quick
Edit
On
Out A
Out B
MIDI Out
(0-31)
A - KNOBS OUTPUT MIDI (MIDI menu) B - LOCAL CONTROL (Controllers menu) C - RECHANNELIZE INPUT (MIDI menu) D - CHANNEL ASSIGN (Pattern/Song Edit menu) E - KNOBS PRESET QUICK EDIT (Controllers menu)
