PROGRAMMING BASICS
32 Proteus operation manual

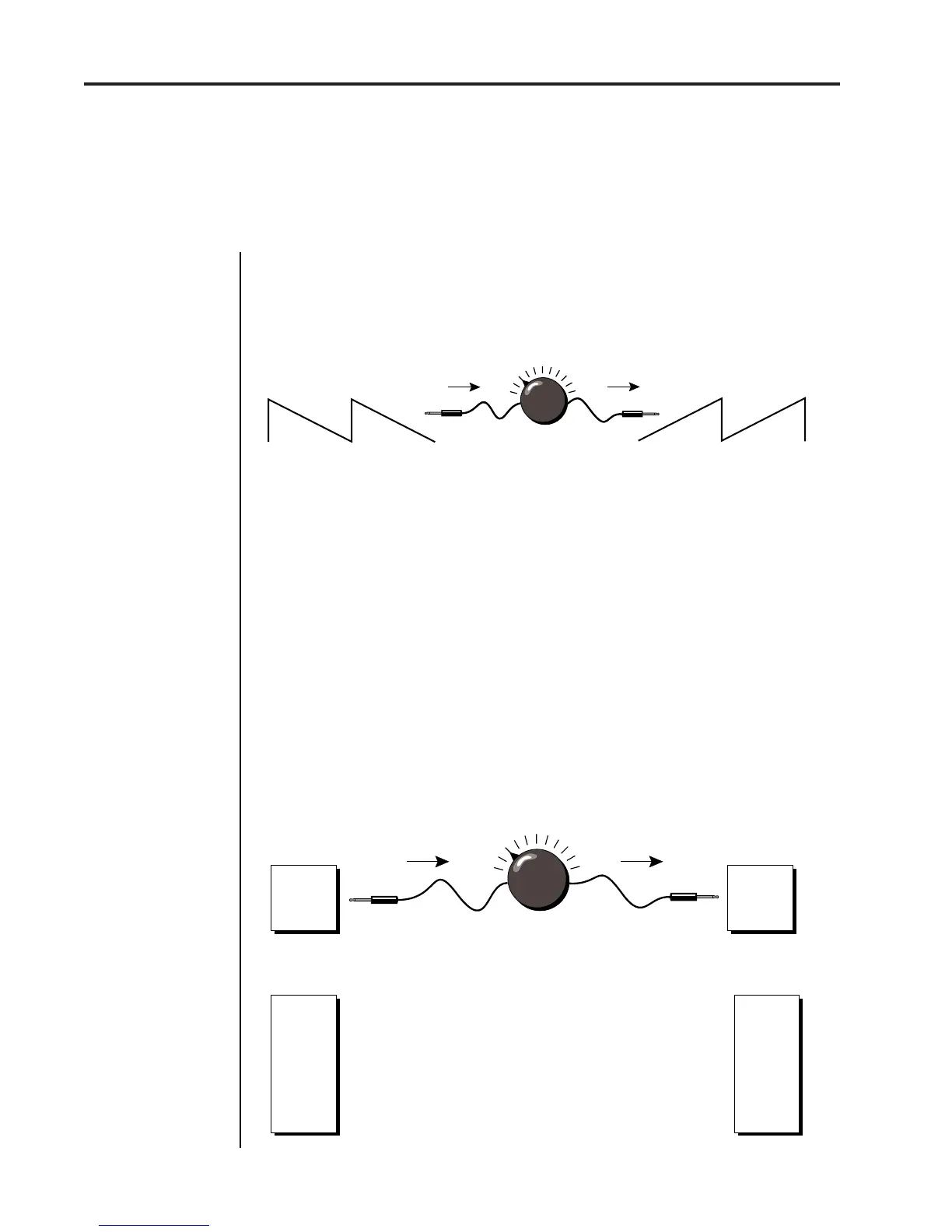

When the amount of an LFO is a negative value, the LFO shape will be
inverted. For example, inverting the sawtooth wave produces a wave that
smoothly increases, then instantly resets down.
Inverted Sawtooth
Negative Amount
+-
Sawtooth
MIDIPATCH
Connecting a modulation source to a destination is called a patch.
Proteus lets you connect the modulation sources in almost any possible
way to the modulation destinations. You can even modulate other
modulators. Each patch also has an amount parameter which determines
“how much” modulation is applied to the destination. The modulation
amount can be positive or negative and will either add or subtract from
the initial value. Keyboard and velocity sources can be simultaneously
patched to any 6 of the 33 destinations for each preset. Realtime modula-
tion sources can be simultaneously patched to any 8 of the 24 destinations
for each preset.
Sources
LFO 1
LFO 2
Aux Env
Wheel
Pressure
MIDI
etc.
Destinations
Pitch
X-Fade
Level
LFO Amt.
LFO Rate
Attack
etc.
Modulation
Source Destination
Amount +/-
LFO 1
Primary
Level
+-
Modulation "Patching"
