Proteus operation manual
9
Setup #1 BASIC SETUP
CONNECTION INSTRUCTIONS
Connection Instructions - Basic Setup
MIDI In
- Proteus is controlled by MIDI messages received at the MIDI In
connector. Connect the MIDI In of the Proteus to the MIDI Out connector
of a MIDI controller such as a MIDI keyboard, MIDI wind controller, or
MIDI guitar controller.
Outputs
- Proteus is a high quality, stereo audio device. In order to
reproduce its wide dynamic range and frequency response, use a high
quality amplification and speaker system such as a keyboard amplifier or
home stereo system. A stereo setup is highly desirable because of the
added realism of stereophonic sound. Headphones can be used if an
amplifier and speaker system is not available. Plug stereo headphones
into the Left Main output jack. The Right Main output jack serves as a
mono output when the left jack is not plugged in.
If Proteus does not
seem to be responding
correctly, make sure
that both Proteus and
your MIDI Controller
are set to the same
MIDI channel.
SUB 2
SUB 1
MAIN
IN OUT THRU
LLLR
STEREOMONO
MIDI
OUTPUTS POWER
RR
MIDI Controller
(MIDI Keyboard, Sequencer, etc.)
MIDI Out
Use the Left Main Output
for Stereophones
Mixer
Amp
Speakers
Aux. or
Tape In
Male RCA plug
to
Male Phono plug
Home Stereo
System
To
Main Outs
Home Studio
System

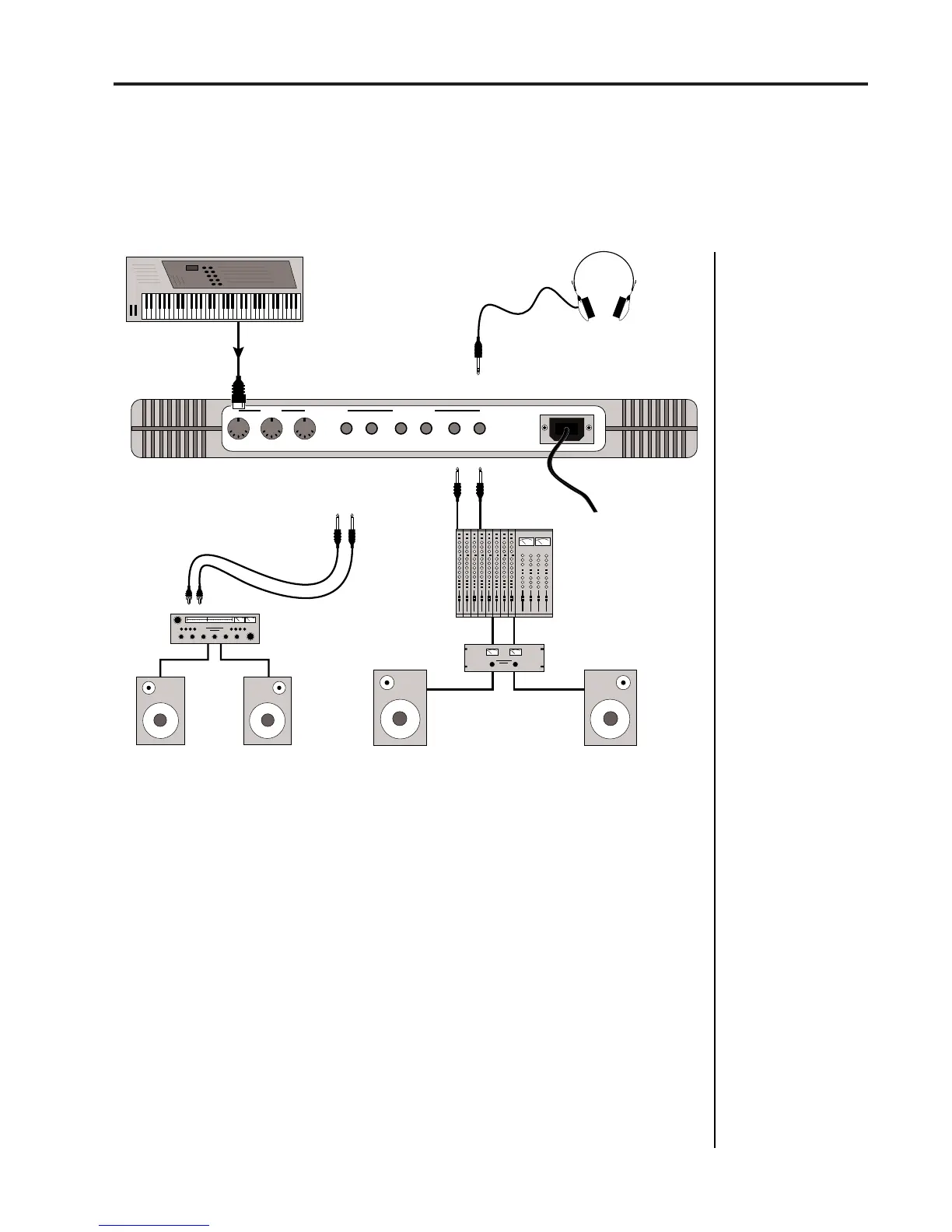

This diagram shows a typical equipment setup for the Proteus.
