HARMONIC WAVEFORMS
70. Oct 1 (Sine)
71. Oct 2 All
72. Oct 3 All
73. Oct 4 All
74. Oct 5 All
75. Oct 6 All
76. Oct 7 All
77. Oct 2 Odd
78. Oct 3 Odd
79. Oct 4 Odd
80. Oct 5 Odd
81. Oct 6 Odd
82. Oct 7 Odd
83. Oct 2 Even
84. Oct 3 Even
85. Oct 4 Even
86. Oct 5 Even
87. Oct 6 Even
88. Oct 7 Even
89. Low Odds
90. Low Evens
91. Four Octaves
Starting from the first octave (fundamental), the
harmonic waveforms contain the harmonics (odd,
even, or all) present in each octave. In each succes-
sive octave the number of harmonics doubles. By
combining (pri/sec or link) the harmonic wave-
forms in various amounts (volume), and transpos-
ing them (coarse/fine tuning), a vast range of tim-
bres may be produced.

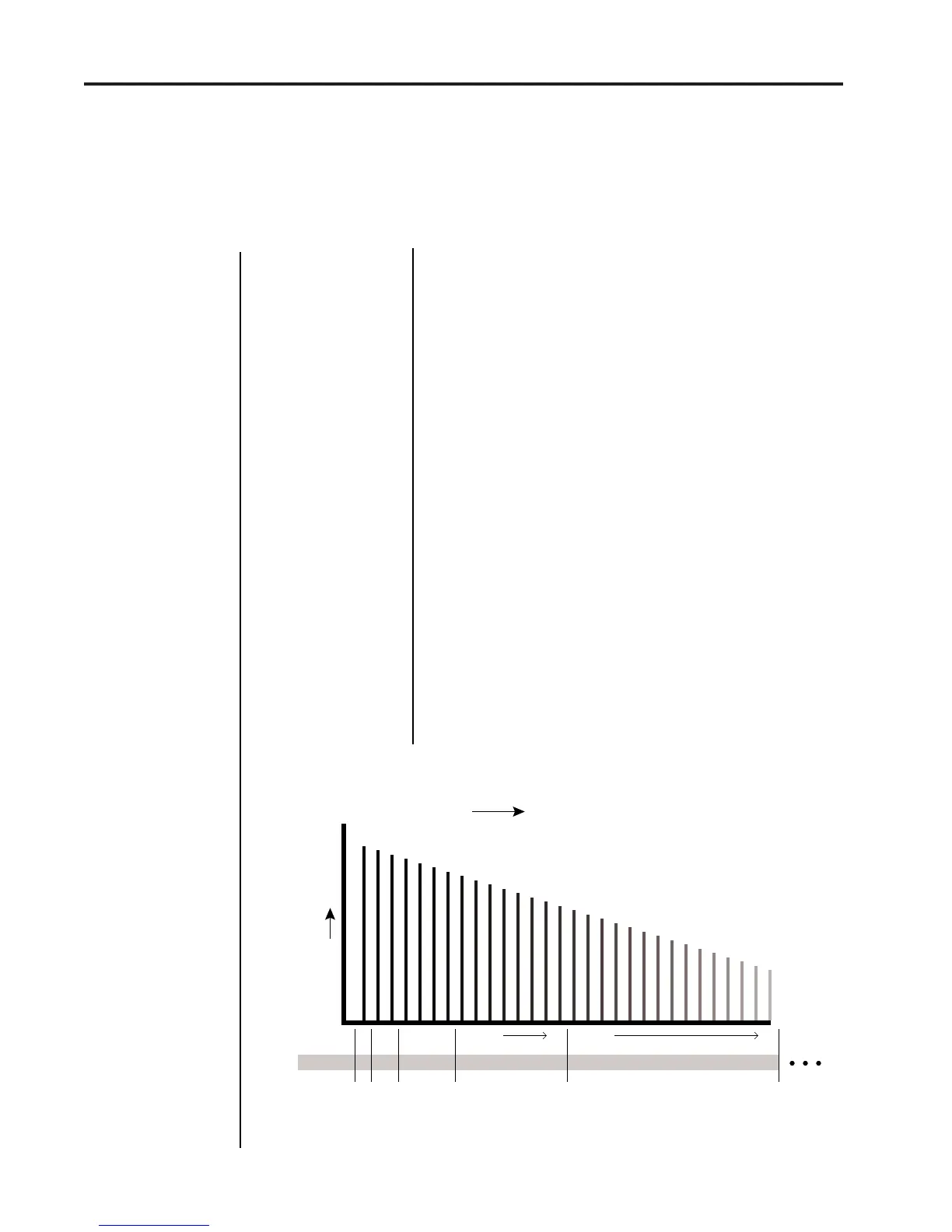

The Harmonic Waveforms have been designed so that almost any harmonic combination may
be assembled.
12345678910 151617 3118
12 3 4 5
Harmonic
Octave
Frequency (log)
Level
PROTEUS/1 INSTRUMENTS
Proteus/1 Harmonic Waveforms
