4.4.2 Assembly
Connect an appropriate antenna or sensor to the Signal connector of the UHFR1.
• Antennas can be connected either directly or using a coaxial cable.
• The Signal Connector is a BNC connector. Push the sensor or cable onto the Signal Connector then
twist clockwise one quarter turn.

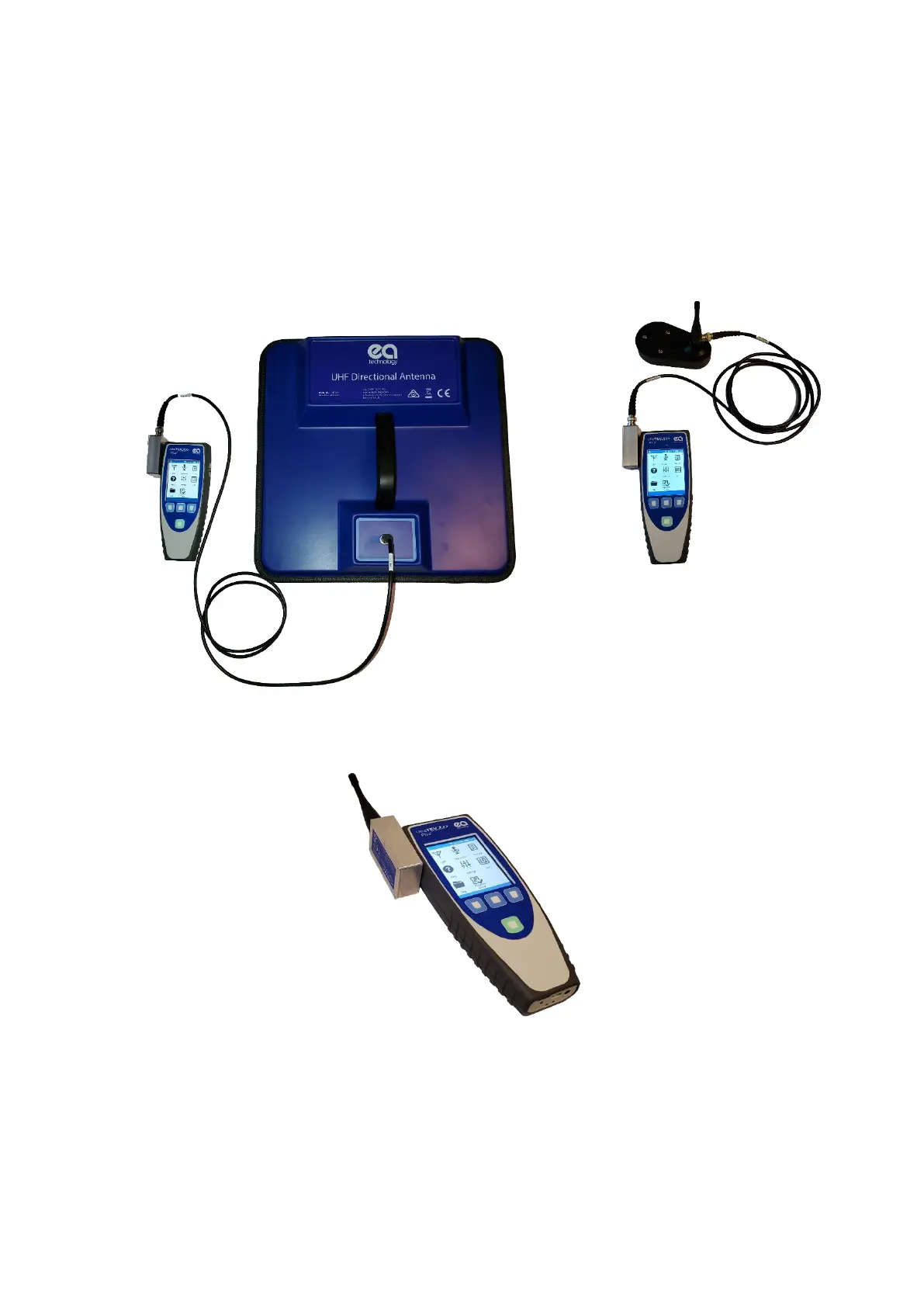

Antenna connected to the UHFR1 using a coaxial cable
Antenna connected directly to the UHFR1
