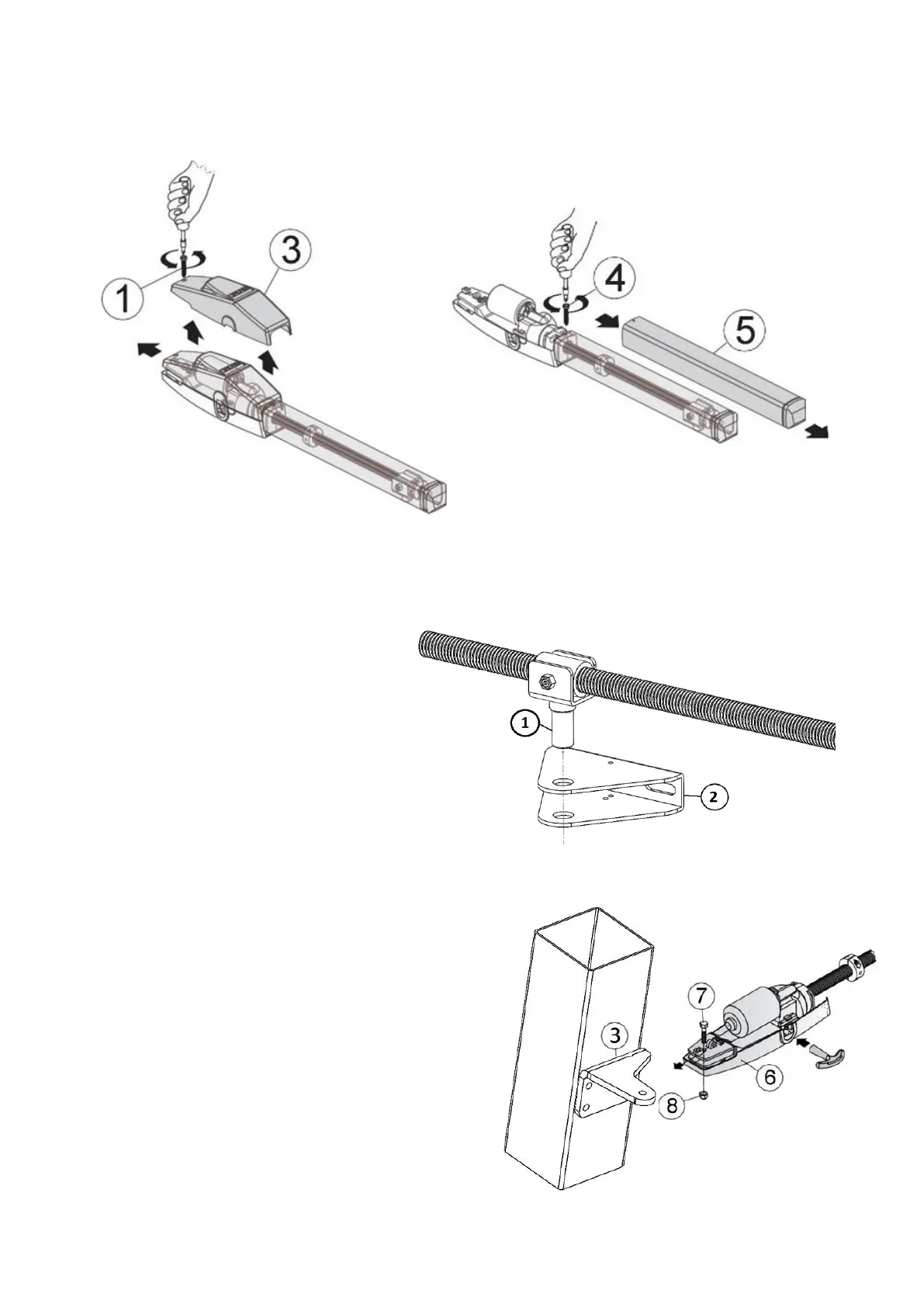

The motor cover (3) can be removed by unscrewing the bolt (1).
Remove the motor cover without damaging the securing clamps.
Remove the bolt (4) and slide the cover off the worm gear (5).
Insert the actuator pin (1) into the hole in the
front connector (2).
Slide the actuator arm (6) on the bracket (3) and align
the holes axially.
Insert the M8x40 bolt (7) and push it through the gear
motor arm and the hole in the rear bracket. Secure the
bolt with a Teflon nut (8).
