22 Eaton 9155 UPS (8–15 kVA) User’s Guide 164201553—Rev H0

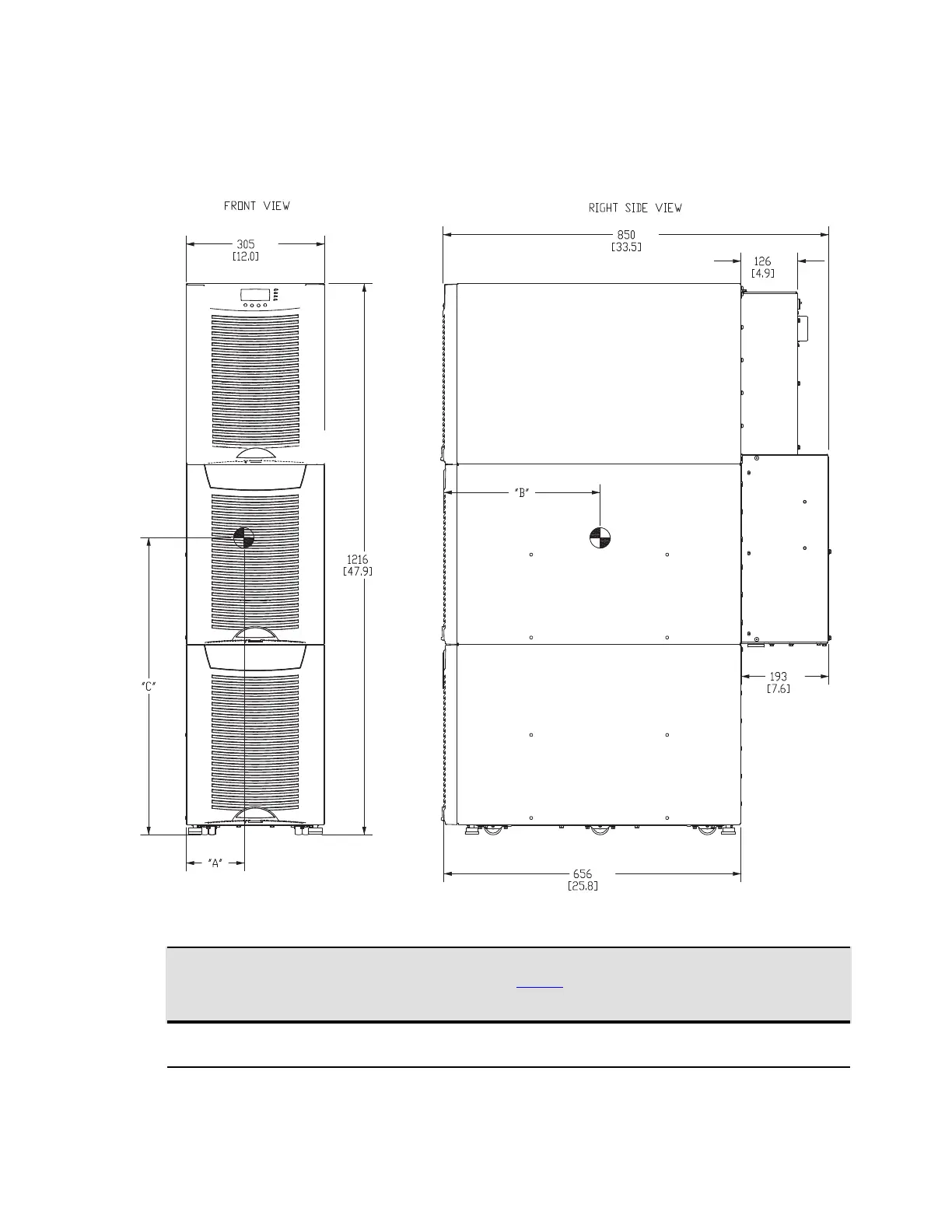

Figure 10. 3-High UPS Cabinet Center of Gravity
Dimensions are in millimeters [inches]
Weight and Center of Gravity
Dimensions mm [in]
See Figure 10.
Weight
kg [lb]
A B
C
Eaton 9155 8–15 kVA UPS 3-
High
81 [3.2] 452 [17.8] 610 [24.0] 276 [609]
UPS Installation Plan and Unpacking
