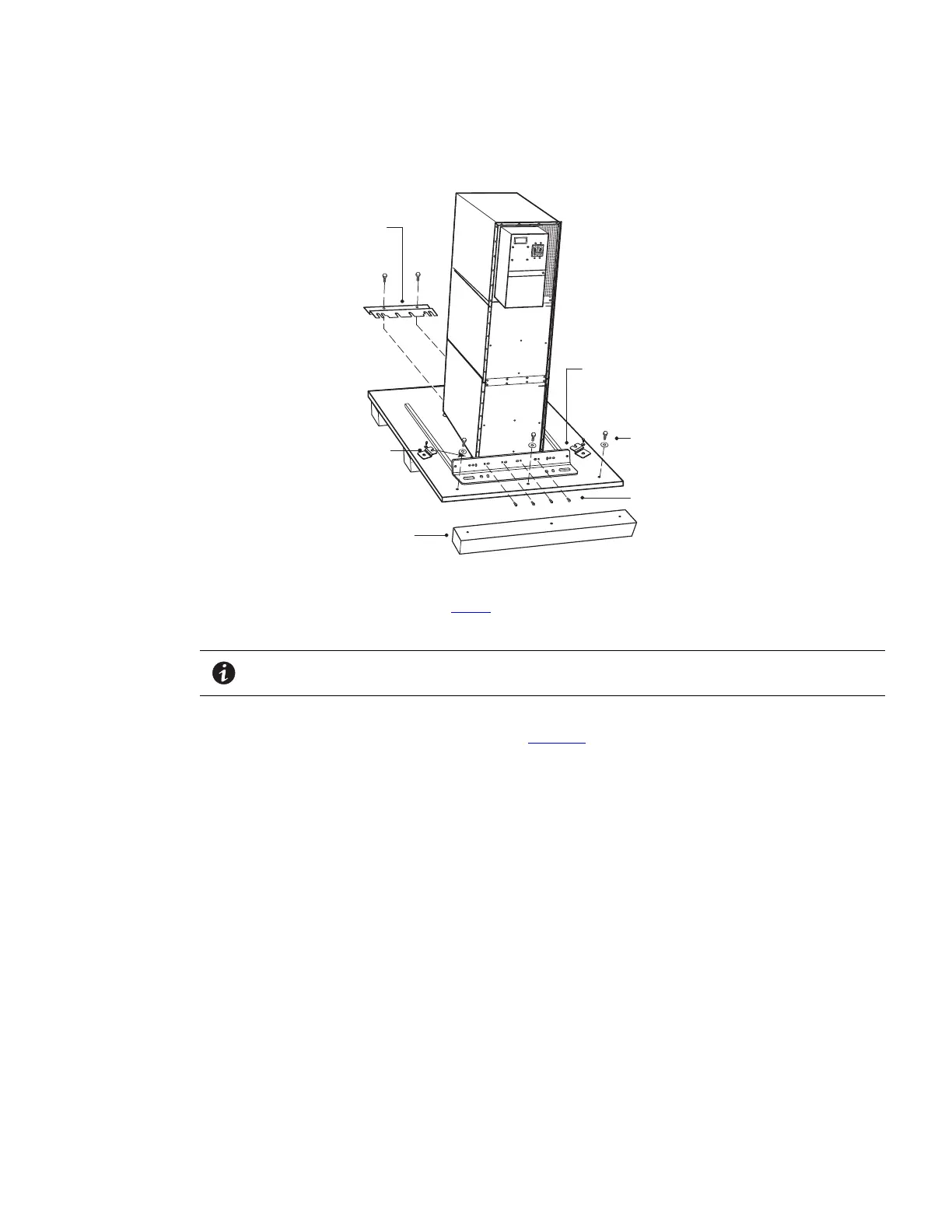

Figure 13. Removing the Brackets and Shipping Pad
Stabilizing Bracket
Front Shipping
Bracket
Shipping Pad
M4 Screws
M10 Bolts
M10 Bolts
Pallet Bracket (x2)
(Secures the rear UPS
leveling feet to the pallet)
7. Reinstall the front cover removed in Step 4.
Hang the top edge of the cover on the cabinet first, then lower the bottom edge and snap into place.
NOTE Be sure to support the front and back of the cabinet when rolling it off the pallet to
prevent tipping.
8. Slowly roll the cabinet toward the rear of the pallet. Once the pallet tilts, continue rolling the cabinet down
the pallet until the cabinet touches the floor (see Figure 14).
If needed, adjust the leveling feet so that the cabinet will roll.
