30 Eaton 9155 UPS (8–15 kVA) User’s Guide 164201553—Rev H0

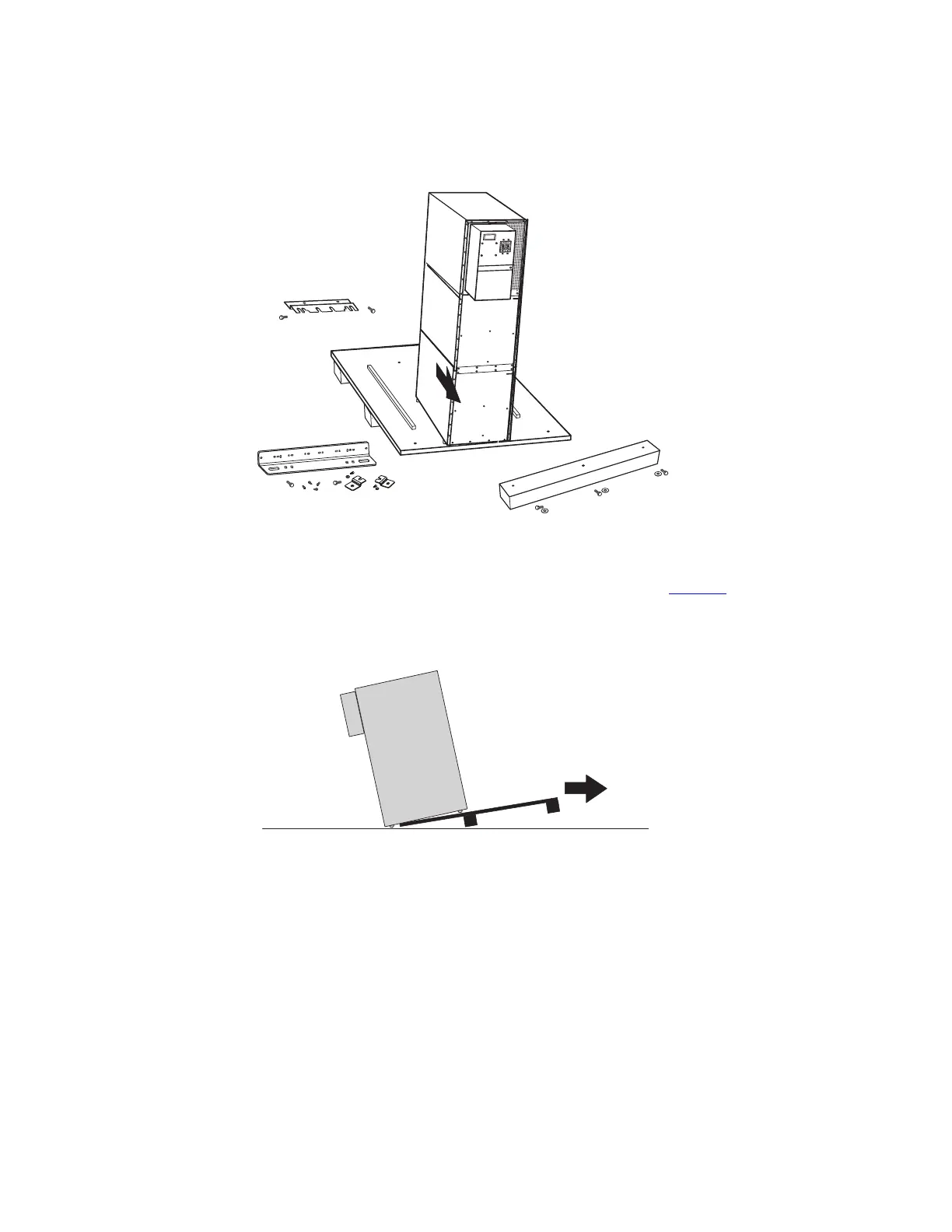

Figure 14. Unloading the Cabinet
9. With the cabinet supported, slowly pull the pallet away from the cabinet (see Figure 15).
Figure 15. Removing the Pallet
10. Roll the cabinet to the desired location.
44..33 EExxtteerrnnaall AACC PPoowweerr WWiirriinngg IInnssttaallllaattiioonn
44..33..11 SSeelleeccttiinngg aann IInnssttaallllaattiioonn OOppttiioonn
You are now ready to install the Eaton 9155 UPS. Select one of the following installation options according to
your UPS configuration:
UPS System Installation
