Eaton 9355 UPS (10/15 kVA) User’s Guide 164201594—Rev H0 63

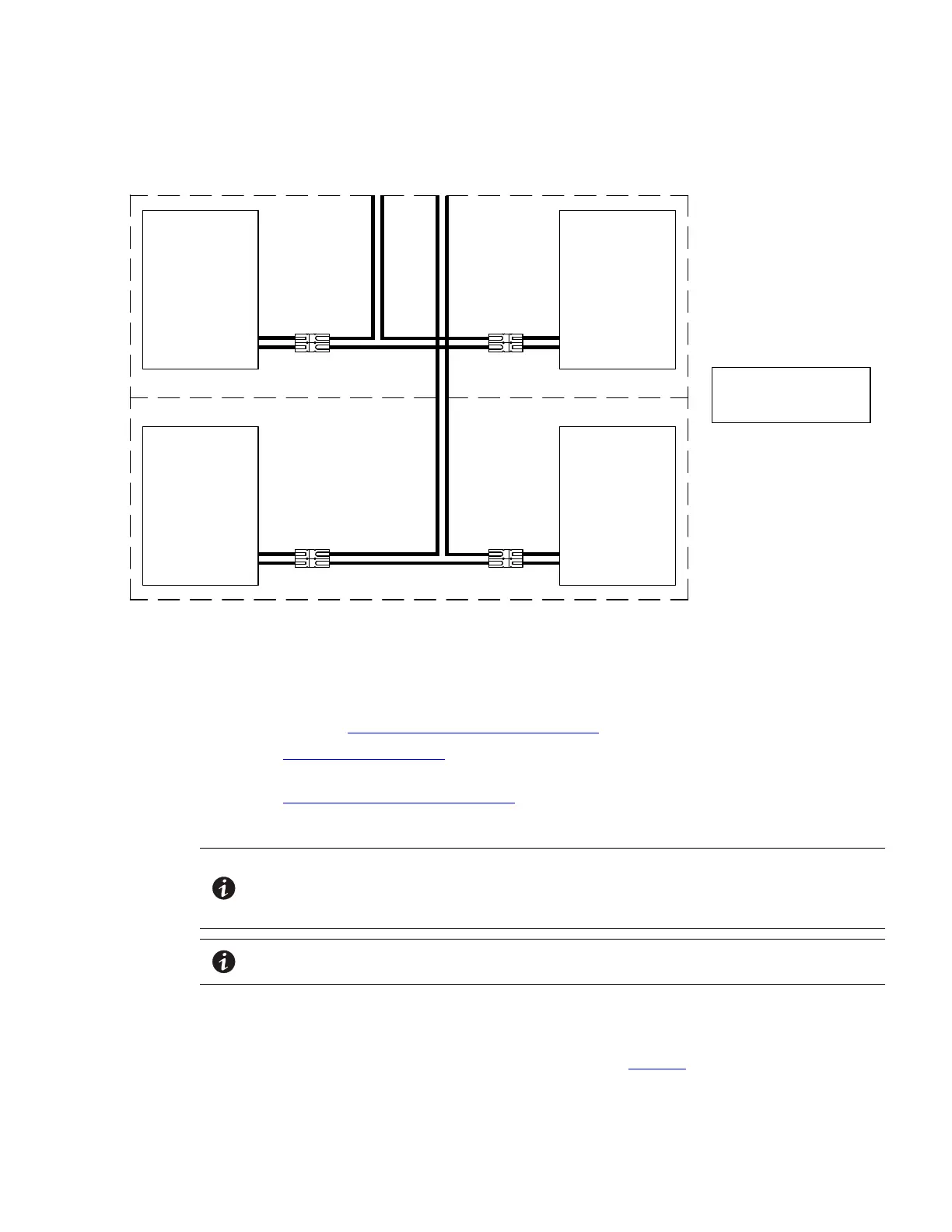

Figure 49. Internal Battery Tray Wiring Diagram
Battery Tray
Assembly
Battery Tray
Assembly
Battery Tray
Assembly
Battery Tray
Assembly
DIAGRAM REPRESENTS
EACH TWO-SHELF
CABINET MODULE
RED
BLACK
WHITE
BLACK
RED
RED
BLACK
WHITE
BLACK
RED
RED
BLACK
RED
BLACK
5. Repeat these steps to connect each battery tray to the UPS-Battery wiring harness.
6. Continue to one of the following sections:
• See paragraph 4.6 Extended Battery Module Installation to install optional EBMs.
• See Chapter 6 Communication to install UPS communication options, such as X-Slot cards or remote
emergency power-off (REPO).
• See Chapter 7 UPS Operating Instructions to start up the UPS.
44..66 EExxtteennddeedd BBaatttteerryy MMoodduullee IInnssttaallllaattiioonn
NOTE A maximum of 22 battery strings can be installed in one configuration, including UPS
batteries (4 EBM-64 models or 3 EBM-96 models). UPS-32 models contain 2 strings;
UPS-64 models contain 4 strings; EBM-64 models contain 4 strings; and EBM-96
models contain 6 strings.
NOTE For non-seismic installations, you MUST install the stabilizing bracket on all 3-high
cabinets. The stabilizing bracket is optional for 2-high cabinets.
To install the optional Extended Battery Module (EBM):
1. Position the EBM adjacent to the next cabinet.
2. Verify that all battery circuit breakers are in the OFF position (see Figure 50).
3. Remove the two ground straps from the EBM rear panel.
UPS System Installation

Eaton 9355 Specifications

General

Efficiency	91 %
Noise level	58 dB
Output power	27000 W
Input frequency	50/60 Hz
Audible alarm(s)	Yes
Input power factor	0.99
Output power factor	0.9
Output power capacity	30 kVA
Input operation voltage (min)	220 V
Input current Total Harmonic Distortion (THD)	5 %
RS-232 ports	1
AC outlet types	-
AC outlets quantity	- AC outlet(s)
Safety	IEC 62040-1-1, IEC 60950, EN 62040-1-1, UL 1778, NOM-0190SCP8-1993
Form factor	Tower
Display type	LCD
Certification	EN 50091-2 Class A\\r UL, cUL, NOM-NYCE
Product color	Black
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	- min
Operating altitude	0 - 3000 m
Storage temperature (T-T)	0 - 25 °C
Operating temperature (T-T)	10 - 40 °C

Weight and Dimensions

Depth	866.14 mm
Width	508 mm
Height	1676.4 mm
