7.3.5 Power Maps Screen (Bypass Mode)
Figure 7-11 shows the Bypass screen. The Bypass screen displays only when the system is in Bypass mode.
The Bypass screen shows a real-time graphical representation of the operating status.
Touching any of the buttons on the right side of the screen takes the user directly to that information screen.

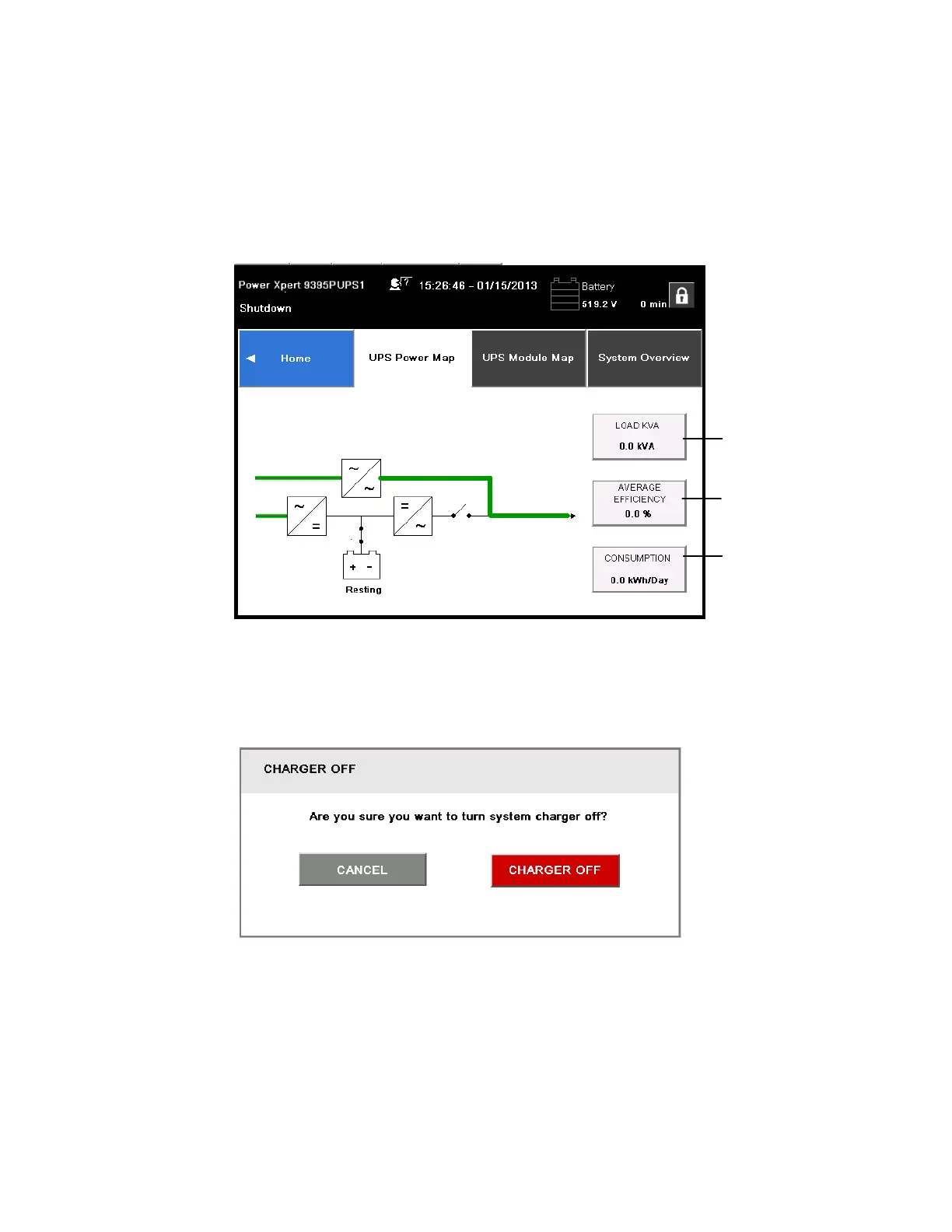

Figure 7-11. Bypass Screen
7.3.6 Command Confirmation Pop-Up
Figure 7-12 is an example of a command request confirmation pop-up screen. This type of pop-up allows the
user to confirm that the requested command is valid.
Figure 7-12. Typical Command Confirmation Screen (Charger Off)
Figure 7‐8
Figure 7‐9
Figure 7‐10
