Eaton Power Xpert 9395P-900 Series - Figure 4-10. ISBM Section Battery Input Power Terminal Detail; Figure 4-11. ISBM Section Output Power Terminal Detail

UPS System Installation
4-14 Eaton
®
Power Xpert
®
9395P-900 UPS Installation and Operation Manual P-164000501—Rev 09 www.eaton.com/powerquality

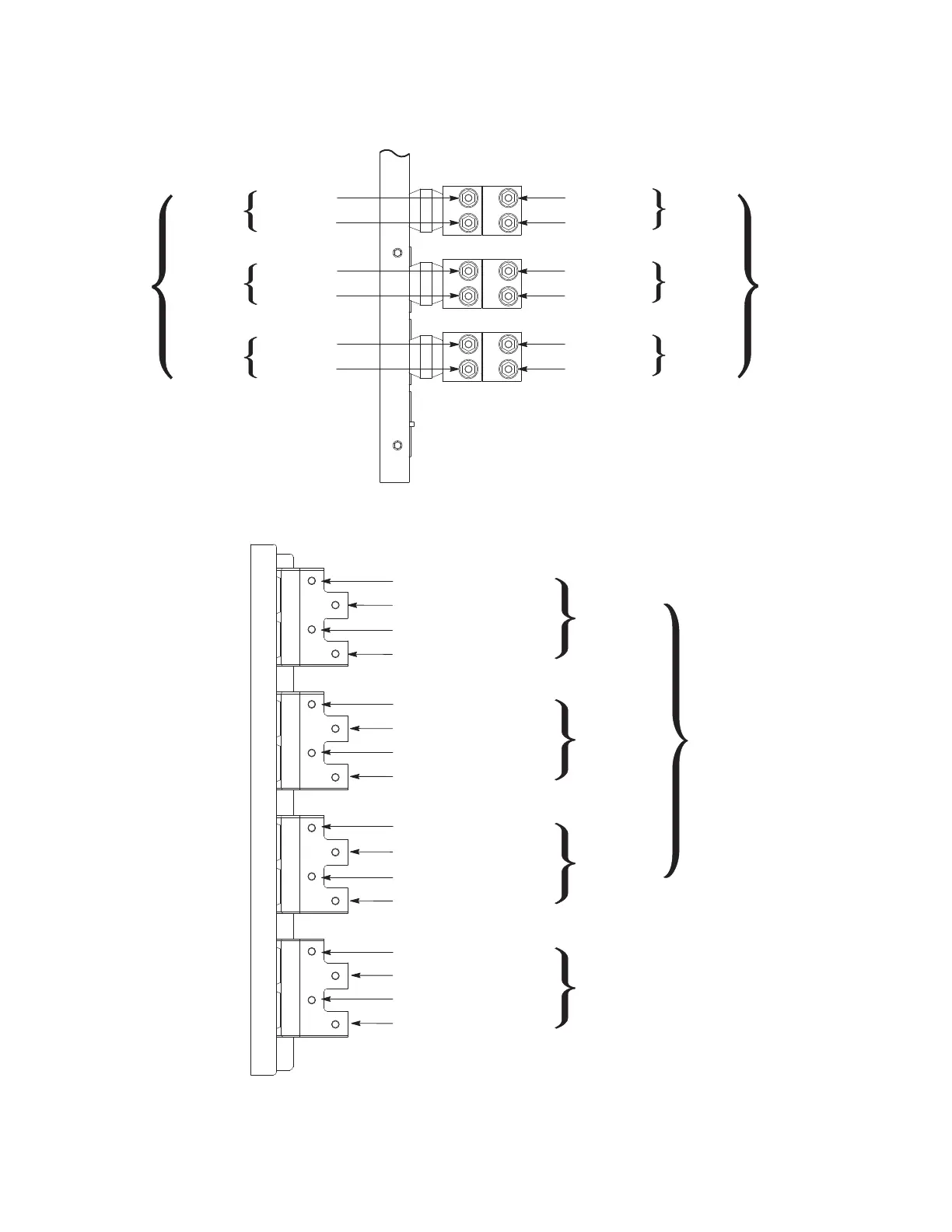

Figure 4-10. ISBM Section Battery Input Power Terminal Detail
Figure 4-11. ISBM Section Output Power Terminal Detail
DC Input to UPMs
+
Cable 1G3 Black
UPM 1 (1E5A)
Cable 1G3 Black
DC Input to UPMs
Cable 1G3 Red
UPM 1 (1E4A)
Cable 1G3 Red
–
Cable 2G3 Black
UPM 2 (2E5A)
Cable 2G3 Black
Cable 3G3 Black
UPM 3 (3E5A)
Cable 3G3 Black
+
+
+
–
–
–
Cable 2G3 Red
UPM 2 (2E4A)
Cable 2G3 Red
Cable 3G3 Red
UPM 3 (3E4A)
Cable 3G3 Red
AC Output
from UPMs
UPM 1 Cable 1G4 & 1G5 Orange
Phase A (E9A)
UPM 2 Cable 2G4 & 2G5 Orange
UPM 3 Cable 3G4 & 3G5 Orange
UPM 1 Cable 1G4 & 1G5 Brown
UPM 2 Cable 2G4 & 2G5 Brown
UPM 3 Cable 3G4 & 3G5 Brown
UPM 1 Cable 1G4 & 1G5 Yellow
UPM 2 Cable 2G4 & 2G5 Yellow
UPM 3 Cable 3G4 & 3G5 Yellow
UPM 1 Cable 1G4 & 1G5 Gray
UPM 2 Cable 2G4 & 2G5 Gray
UPM 3 Cable 3G4 & 3G5 Gray
Phase B (E10A)
Phase C (E11A)
Neutral from
UPMs (E12A)
UPM 4 Cable 4G4 & 4G5 Gray
UPM 4 Cable 4G4 & 4G5 Yellow
UPM 4 Cable 4G4 & 4G5 Brown
UPM 4 Cable 4G4 & 4G5 Orange
For 4-wire systems only
