UPS System Installation
4-8 Eaton
®
Power Xpert
®
9395P-900 UPS Installation and Operation Manual P-164000501—Rev 09 www.eaton.com/powerquality
7. Using a forklift with the forks in the front forklift slots, position the ISBM section adjacent to the left side
of the previously installed UPM section. Verify that the ISBM section right side is against the UPM section
left side and the front of the cabinet bases are flush with each other (see Figure 4-6).
8. Reinstall the corner channel (see Figure 4-5) and secure using the retained hardware.
9. Reinstall the left middle panel (see Figure 4-5) and secure using the retained hardware.

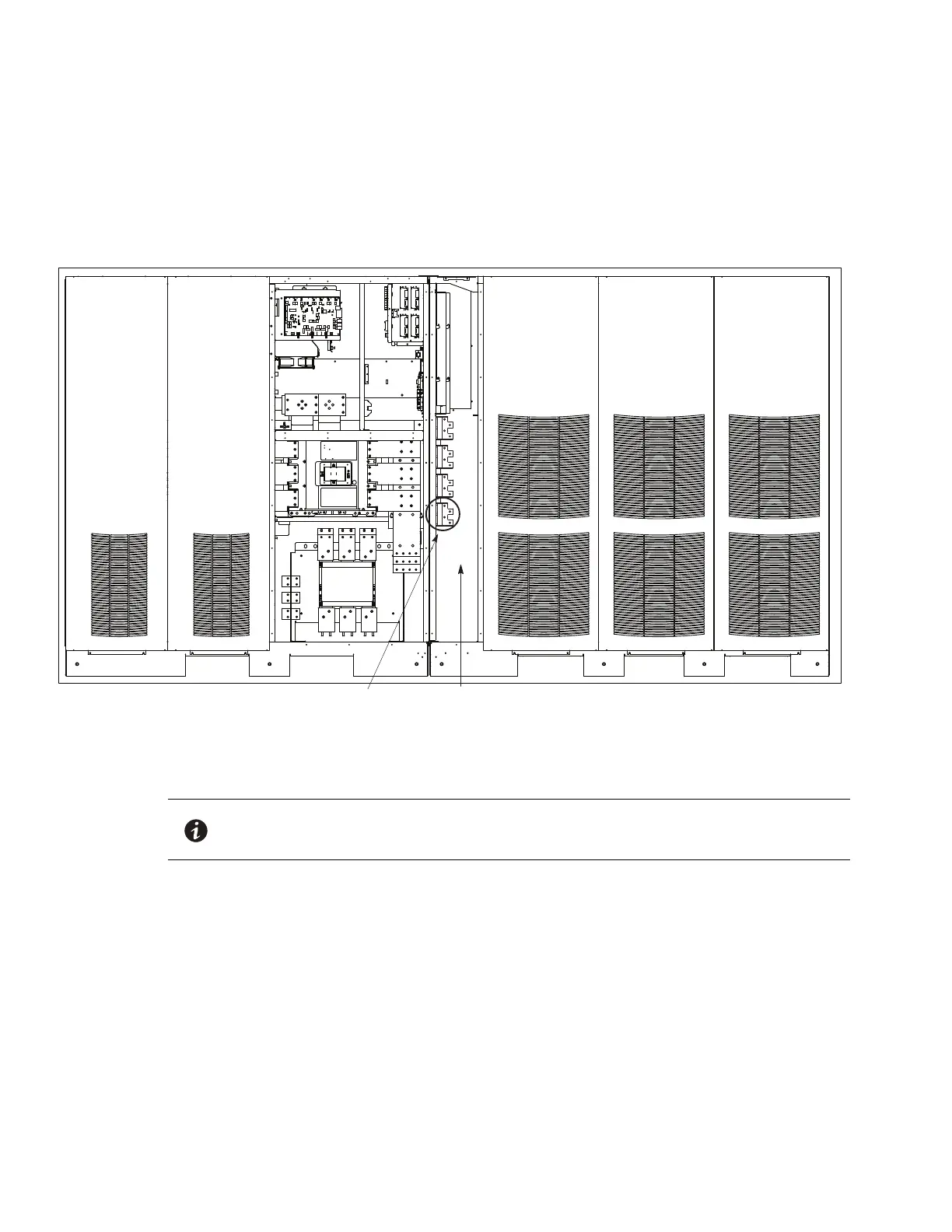

Figure 4-6. ISBM and UPM Sections Joined
10. Reinstall the left top panel (see Figure 4-5) and secure using the retained hardware.
11. Locate the hardware kit (packed inside a drawstring bag tied to the left middle panel of the UPM section).
Locate two flat brackets and screws from the hardware kit. Align the holes in the flat brackets over holes
in the top rear and top front of the ISBM and UPM sections. Secure the brackets with the screws from the
hardware kit (see Figure 4-7).
12. Locate one flat bracket and screws from the hardware kit. Align the holes in the flat bracket over holes in
the front base of the ISBM and UPM sections. Secure the bracket with the screws from the hardware kit
(see Figure 4-7).
13. Proceed to paragraph 4.4.
UPM Wireway
(Power wiring harnesses are coiled in this area.)
For 4-wire
systems only
NOTE Three flat cabinet joining brackets are provided in the hardware kit for securing the
ISBM and UPM sections at the top front, top rear, and front base (see Steps 11 and
12).
