NOTE Treat the electronics module with care to avoid damaging the fans, connectors, or internal circuitry.
16. Replace the electronics module by sliding it carefully into the cabinet. Push the
electronics module firmly to seat the connectors.
17. Reinstall the electronics module locking screw (see Figure 21 on page 34).
18. On the UPS rear panel, plug in the supplied communication terminal block
connectors as shown in Figure 25.
19. Optional but recommended. Press the two supplied wire saddles into the holes on
the rear panel, as shown in Figure 25. During wiring installation, secure any wires
to the connectors within the saddles.
3-Pin Connector
2-Pin Connector
2-Pin Connector
2-Pin with Jumper
2-Pin Connector
2-Pin with Jumper
Wire Saddle
Wire Saddle

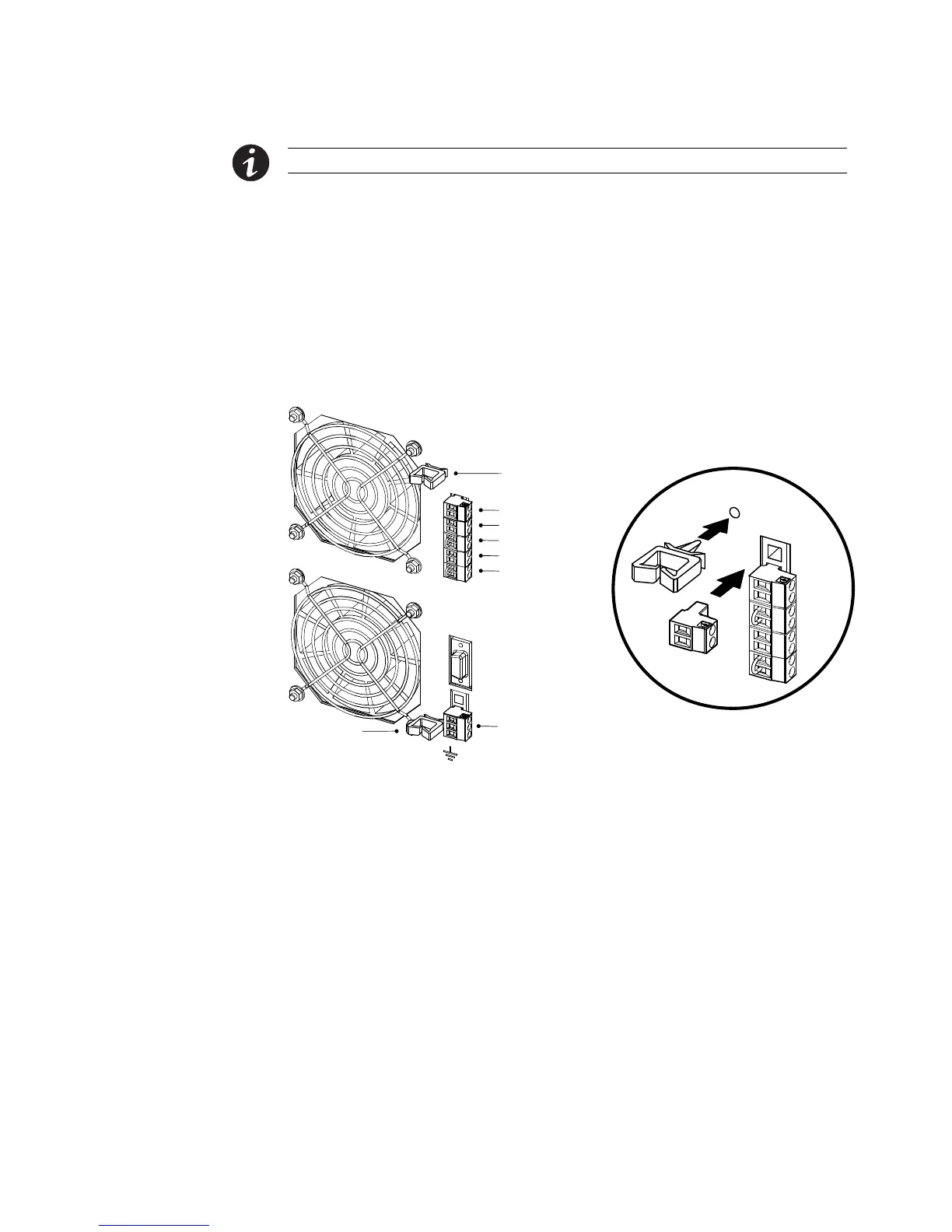

Figure 25. Installing the Communication Terminal Block Connectors
20. Continue to the following section, “Installing the UPS Internal Batteries.”
