Eaton PVM045 - Housing, Valve Plate, and End Cover Assembly

EATON PVM Piston Pump Service Manual E-PUIO-II001-E4 December 201744
Assembly

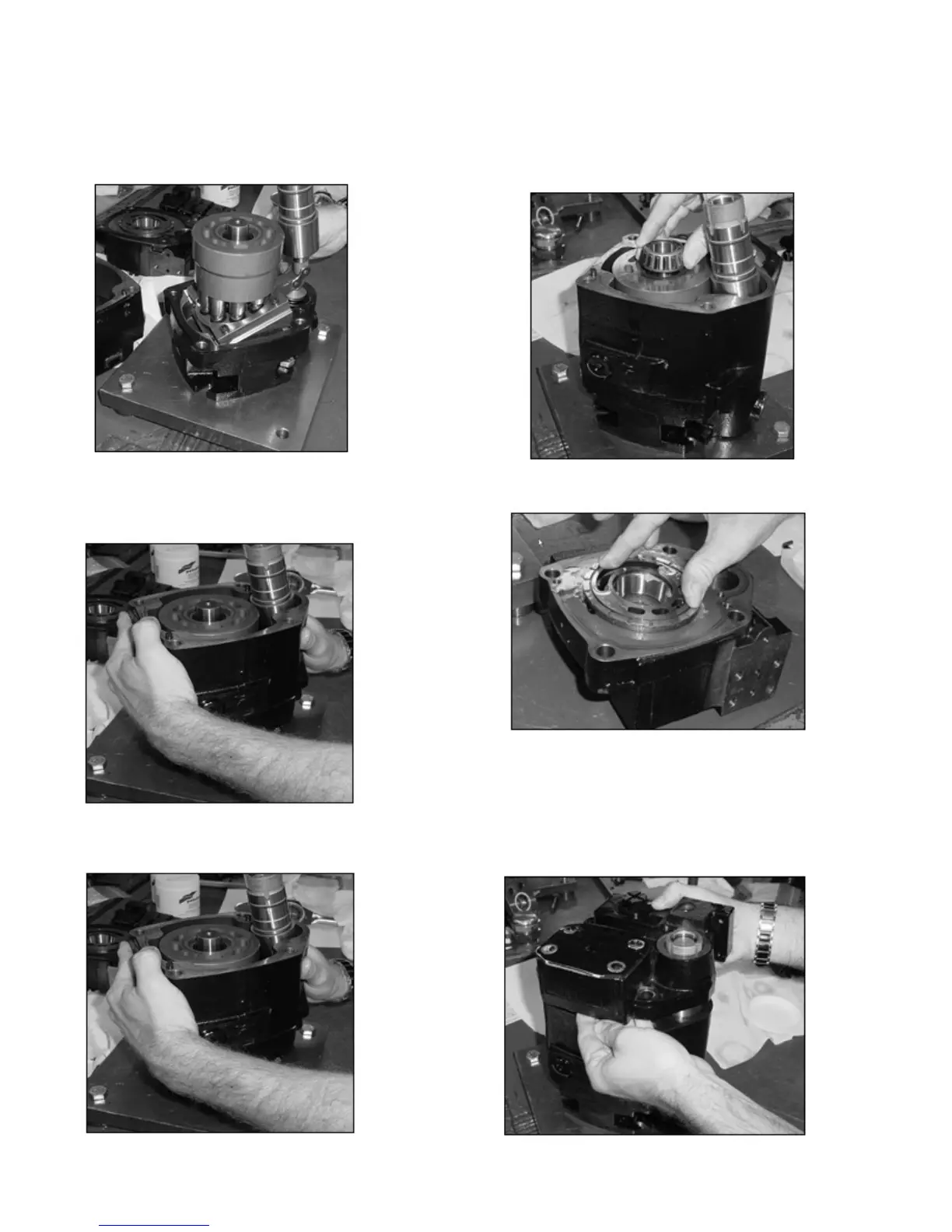

9. Installation of Swash Plate and Rotating Group
Note: The swash plate must be properly seated in the saddle bearings
10. Install Flange Gasket and Housing to the Flange
11. Assemble Screws Attaching Housing to Mounting
Flange
12. Install the Shaft Bearing Spacer and Trail Bearing
Cone
13. Install Valve Plate on End Cover
Note: Lightly coat the back plate side of the valve plate with petroleum jelly
for retention during assembly. Install the valve plate over the bearing race
aligning the small slot on the outside of the valve plate with the dowel pin
of the back plate.
14. Install the End Cover Gasket
