Eaton PVM045 - Shaft, Bearing, and Seal Installation

EATON PVM Piston Pump Service Manual E-PUIO-II001-E4 December 2017 43

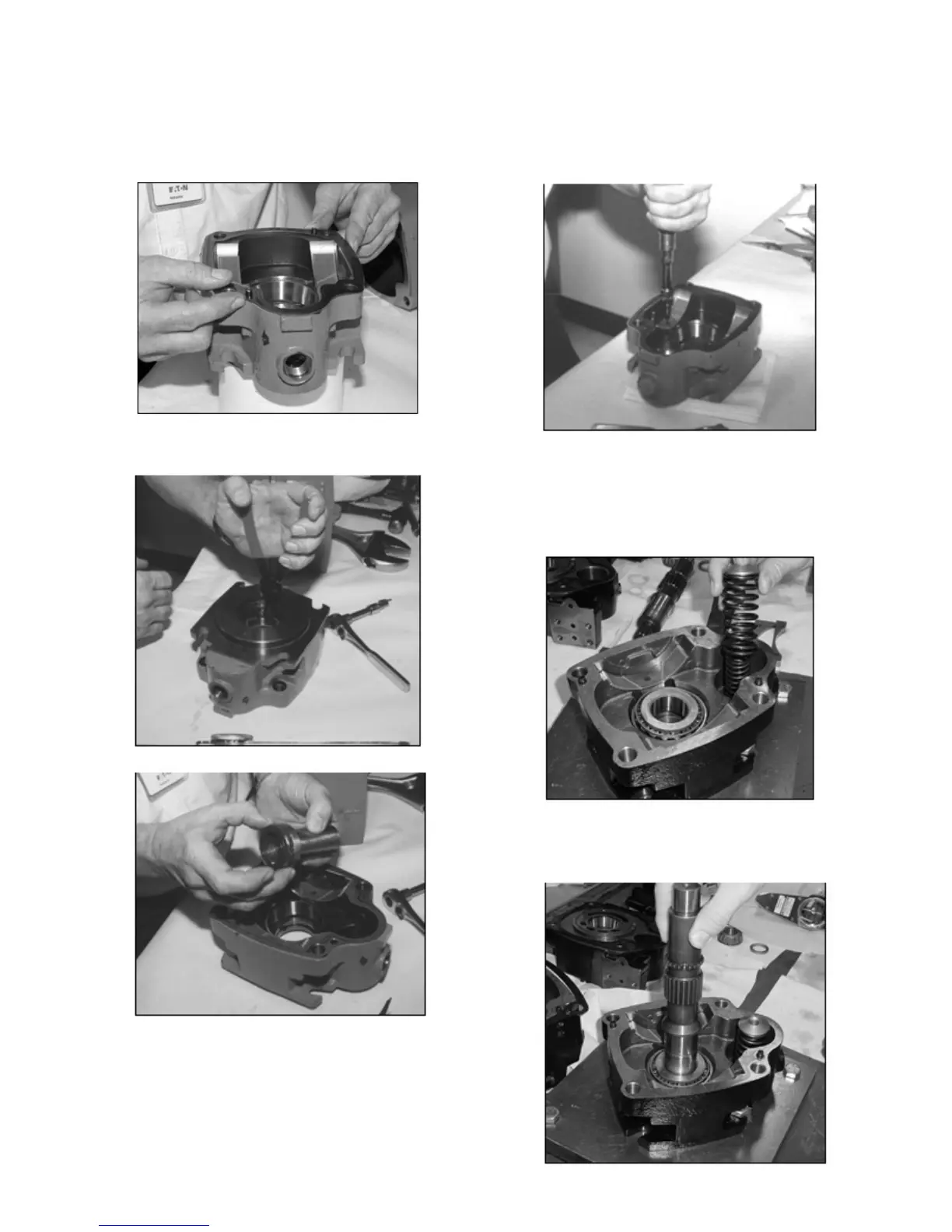

4. Flange Gasket and Alignment Pin Assembly
5. Install Shaft Seal and Shaft Bearing
6. Installation of Saddle Bearings
Note: Torque retaining screws to specied torque. The bearings should be
fully seated in the ange journals.
7. Install Bias Spring and Spring Guide
8. Install Shaft and Front Bearing Cone Sub-assembly in
to the Flange
Assembly
