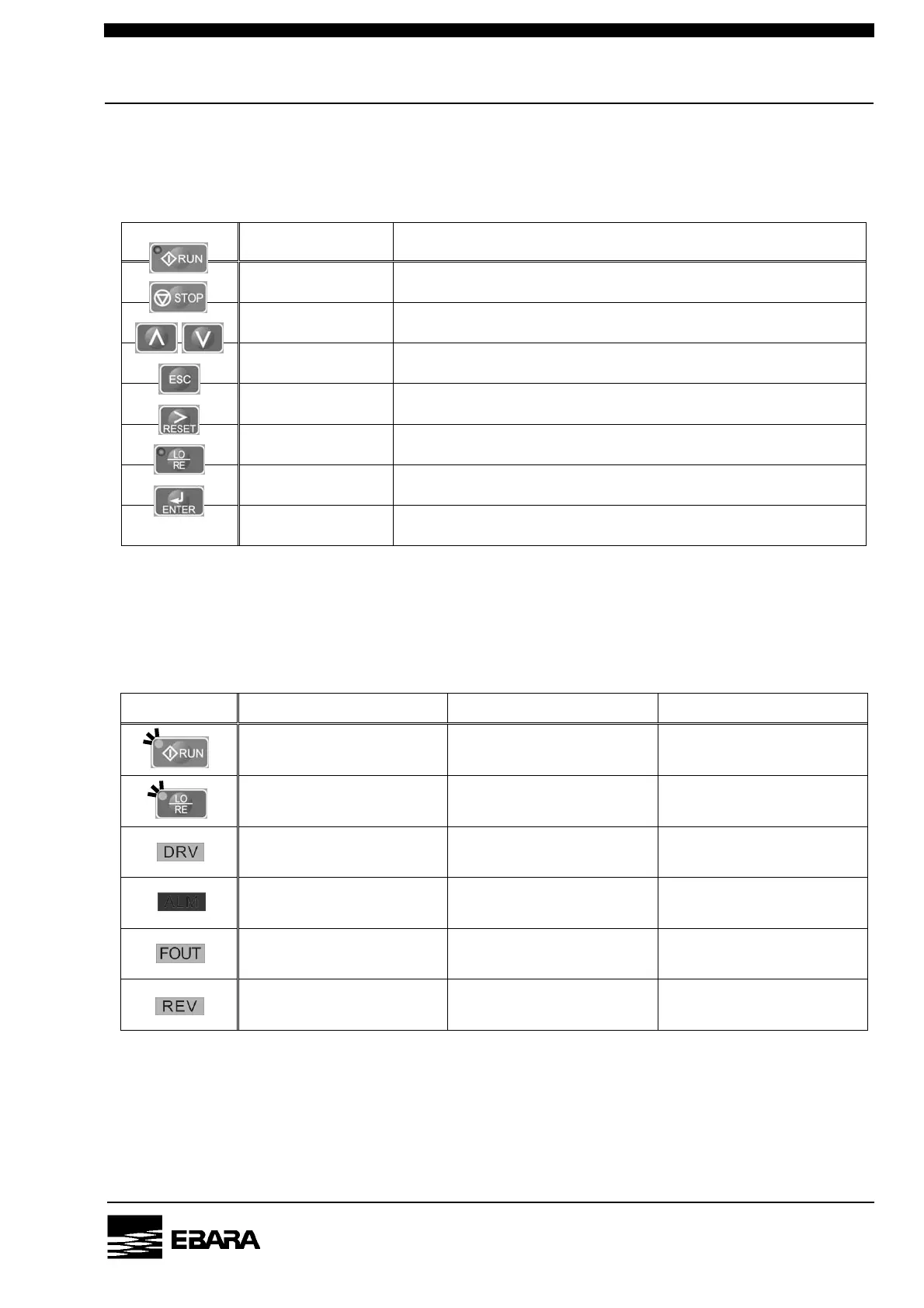

Table 4.2 LED Lamp on the operation panel
LED Lit Flashing OFF
Pump is running. During deceleration to stop During stop
The operation mode is
LOCAL.
---
The operation mode is
REMOTE.
Pump is ready. ---
Pump is not ready.
[note 1]
ALARM condition is
occurred.
Minor failure is occurred.
Normal state (no fault or
alarm)
During displays the Rotation
speed of the pump [min
-1
]
--- ---
Never lit. [note 2] --- ---
[note 1] If the lamp is turning off, push ESC button several times and turn on.
[note 2] If the lamp is turning on, stop the pump immediately and contact us.
Table 4.1 Push button switches on the operation panel
Button Name Function
RUN button
Start the pump.
[note] This button works in the LOCAL mode.
STOP button
Stop the pump.
[note] This button works in the both mode LOCAL and REMOTE.
UP/DOWN button Change data screen
ESC button Return the previous menu.
RESET button Reset a fault situation.
LO/RE button Switch between LOCAL and REMOTE.
ENTER button Non-used
