-P Probe Installation (Insertion Mounting - Oval Ducts - Type C)
Installation_-P_Oval_TypeC_Insertion_r1d -P Probe Physical Installation (Rectangular Ducts)Page 1
EBTRON, Inc • 1663 Hwy 701 S., Loris, SC 29569 • Toll Free: 800-2EBTRON (232-8766) • Fax: 843-756-1828 • EBTRON.com
Step 1. Select a location in the duct or plenum opening that meets or exceeds EBTRON’s recommended
placement guidelines.
If the location does not meet or exceed placement guidelines the installed accuracy may be
compromised and field adjustment may be necessary.
Step 2. Probes are ordered and labeled Probe Length x Adjacent Side Length. Probes are installed through
the major axis (longer dimension) dimension, ‘c’, of the duct. Verify that the duct size matches the
size ordered.
If the probe length ordered is incorrect, the sensors will not be located in the proper location, thus
affecting the installed accuracy. Contact EBTRON customer service for more information.
If the actual size of the duct is not equal to the size ordered, the AREA parameter must be changed in
the transmitter to display the proper airflow rate in CFM [l/s].
Do not cut the probe! Cutting the probe will void warranty.

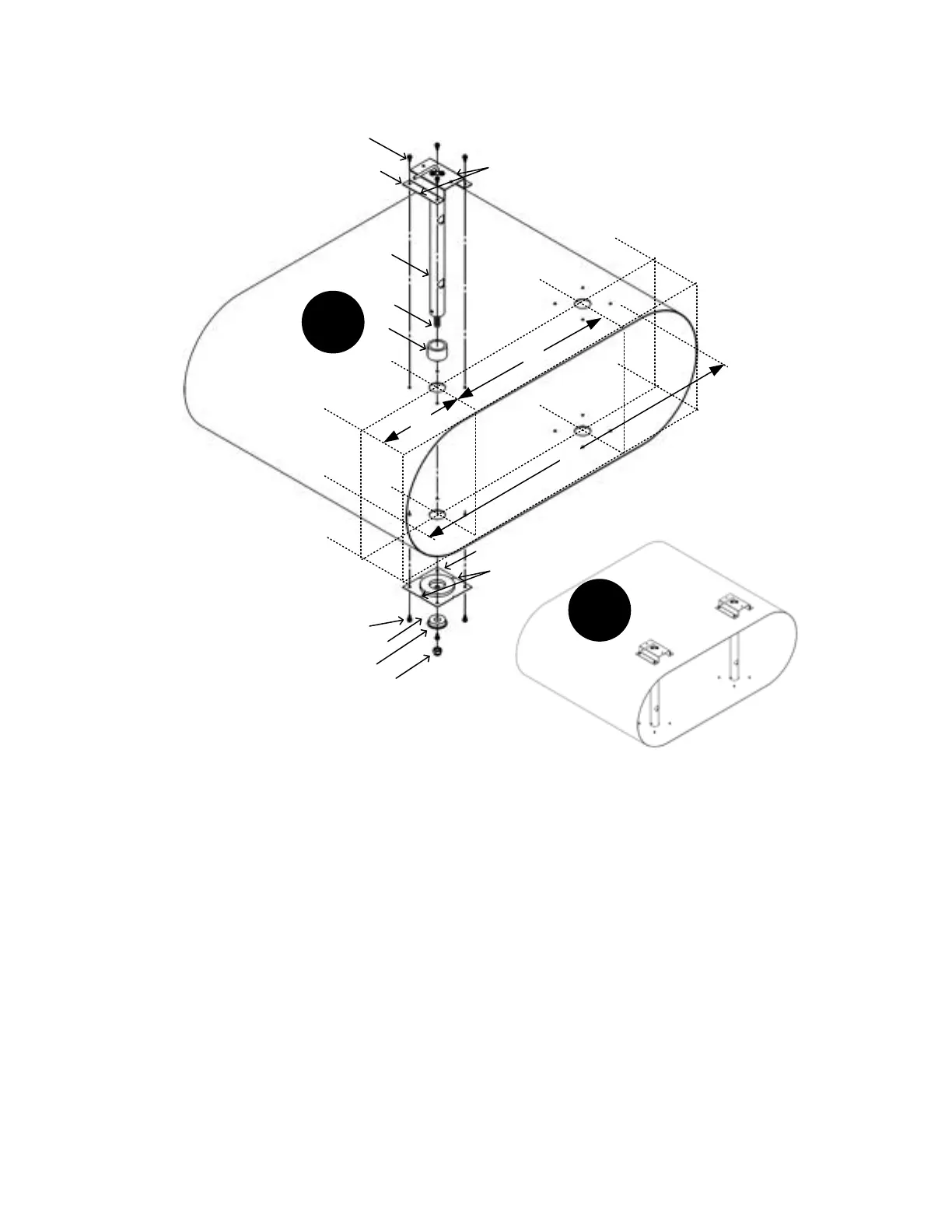

REFER TO FIGURE “A” WHEN COMPLETING STEPS 3 TO 22.
A
B
(x 4)
Alignment
Notches
a
c
(x 4)
Alignment
Notches
b
To Next Page
