The SETTINGS menu is displayed. Press the ENT pushbutton to select the top of the SETTINGS submenu
category.
Parameters can be modified unless the transmitter has been locked using the LOCK TOOL (See Section 4).
Press the ENT pushbutton to modify a parameter. The parameter is displayed without the “*” prefix and the
parameter value flashes. Use the ↑ or ↓ pushbutton to modify the value of the parameter and press the ENT
pushbutton to accept the modified value. The modified value is displayed with the “*” prefix. Press the ESC
pushbutton instead of the ENT pushbutton to discard changes. After changes are complete, press the ESC
pushbutton until the device returns to normal operation.
The SETTINGS menu block diagram is shown below.

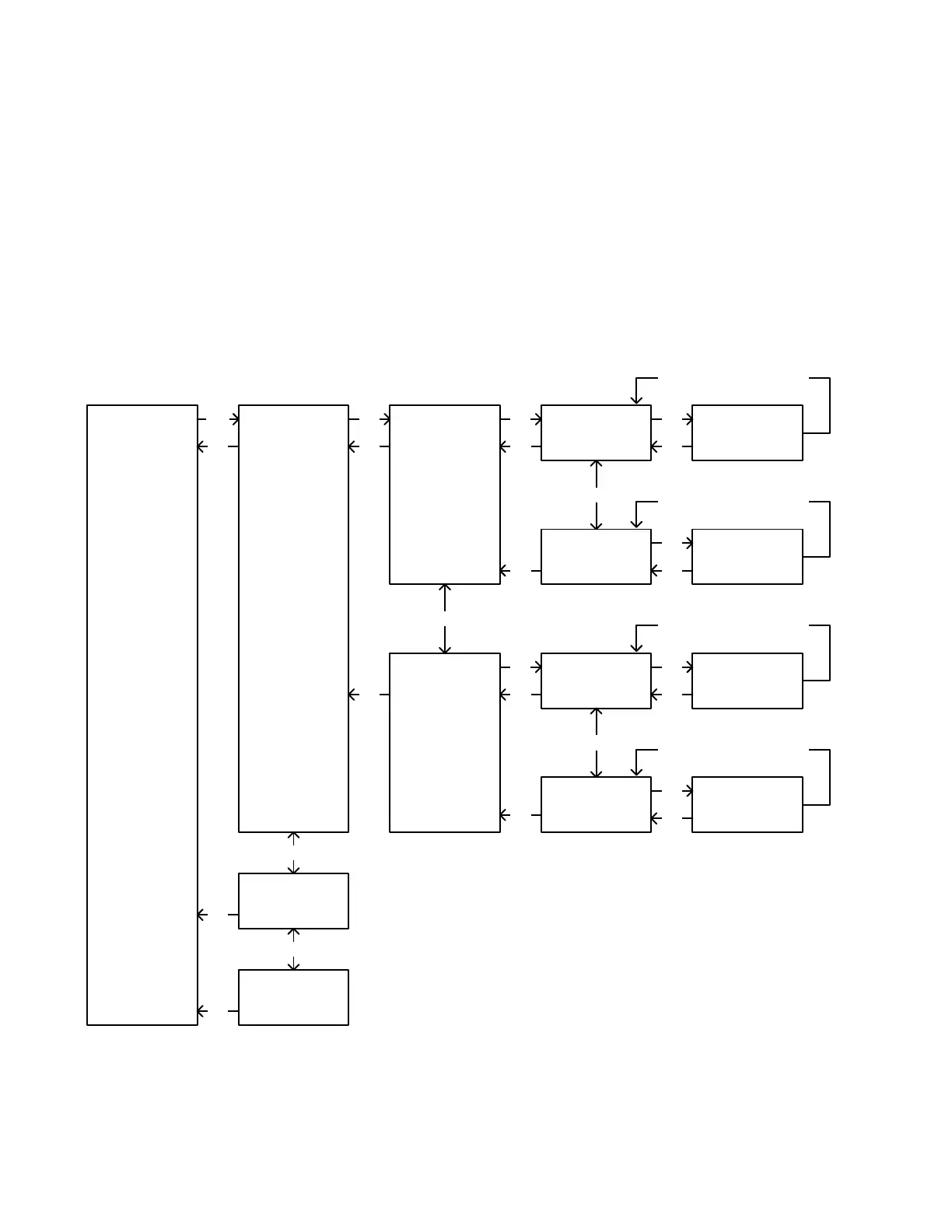

FIGURE 3-1 SETTINGS MENU BLOCK DIAGRAM
SETTINGS
SETTINGS SUBMENU
ITEM 1
ENT
ESC
*{Parameter 1}
={current value}
ENT
ESC
{Parameter 1} ={new
value (flashes)}↑↓
ENT
ESC
*{Parameter n}
={current value}
ESC
{Parameter n} ={new
value (flashes)}↑↓
ENT
ESC
ENT {current value} = {new value}
ENT {current value} = {new value}
SETTINGS SUBMENU
ITEM n
ESC
*{Parameter 1}
={current value}
ENT
ESC
{Parameter 1} ={new
value flashes}↑↓
ENT
ESC
*{Parameter n}
={current value}
ESC
{Parameter n} ={new
value (flashes)}↑↓
ENT
ESC
ENT {current value} = {new value}
ENT {current value} = {new value}
TOOLS
DIAGNOSTICS
↑ or ↓
↑ or ↓
↑ or ↓
↑ or ↓
↑ or ↓
NORMAL
OPERATION
↑ + ↓
ESC
ESC
ESC
