IGNITION SYSTEM
CS-2511TES
251Ts, 251TCs
13

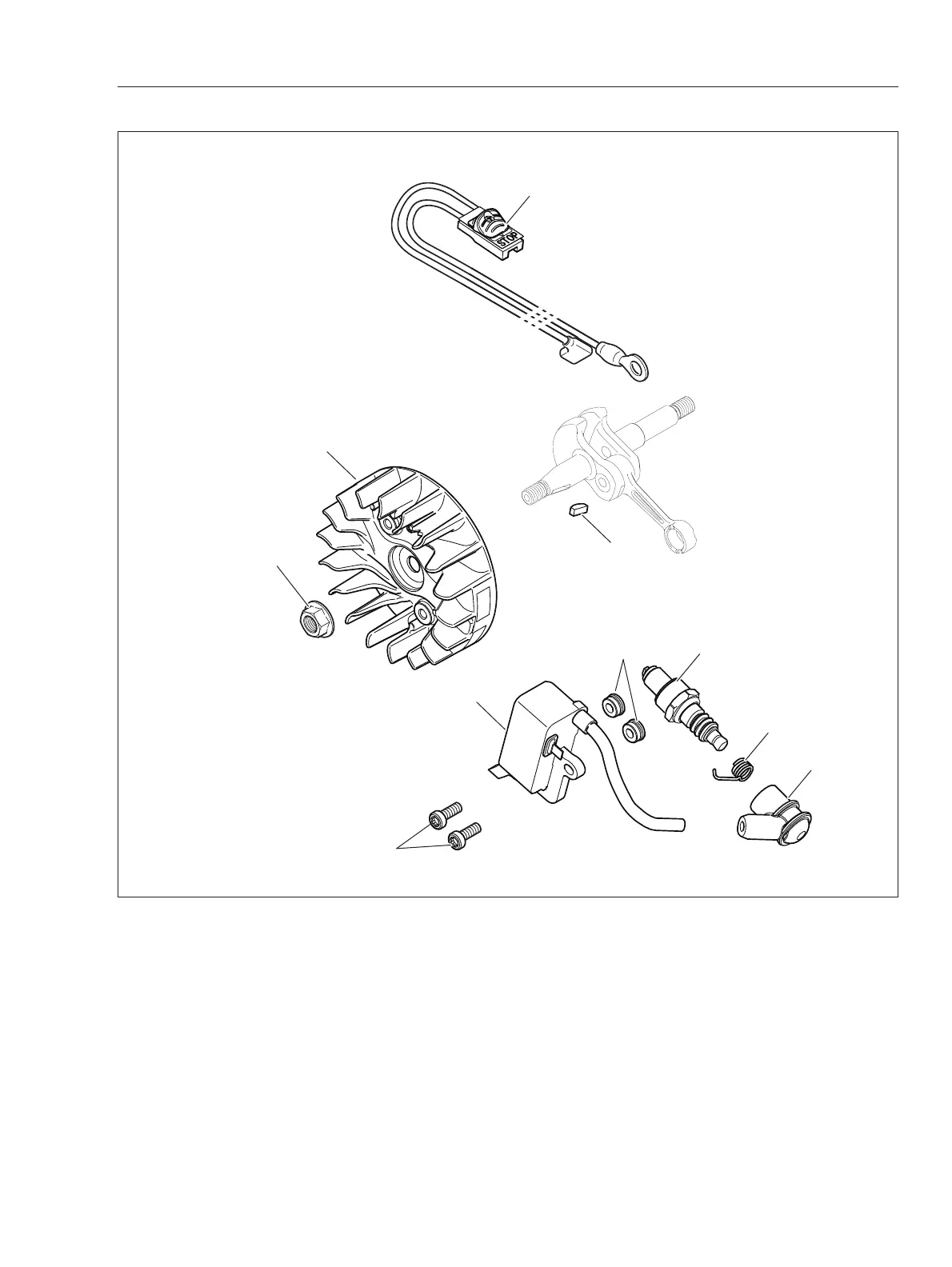

3 IGNITION SYSTEM
(A) Ignition switch
(B) Spark plug
(C) Spark plug cap coil
(D) Spark plug cap
(E) Ignition coil
(F) Bolt (M4)
(G) Collar
(H) Flywheel
(J) Nut (M8)
(K) Woodruff key
(B)
(C)
(D)
(E)
(H)
(J)
(F)
(A)
(G)
(K)
