HANDLE AND CONTROL SYSTEM
CS-2511TES
251Ts, 251TCs
73

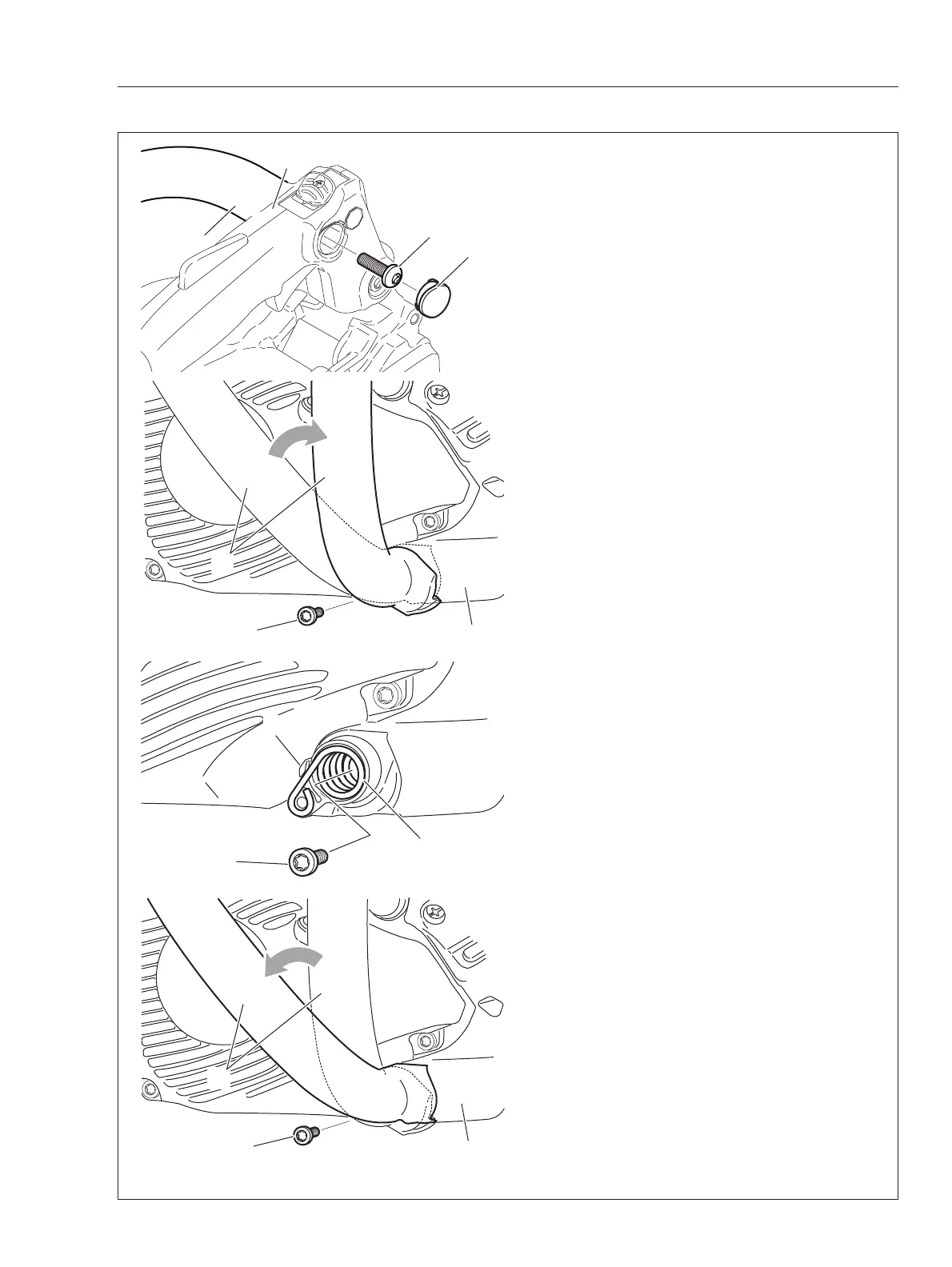

9-3Replacingfronthandleandspring
{Disassembling}
1. Remove plug (A) and screw (B).
NOTE : If throttle rod is placed over the bolt (B),
pull throttle trigger downward.
2. Disconnect front side (c) of front handle (C) from
rear handle (D).
3. Remove bolt (E).
4. Turn front handle (C) as shown and remove it
from rear handle (D).
5. Remove bolt (F) and spring (G)
{Assembling}
6. Install spring (G) to rear handle (D) and tighten
screw (F) as shown.
NOTE : Make sure to set spring (G) inside projec-
tion (H)
7. Install front handle (C) to rear handle (D) and
turn as shown.
8. Insert front side (c) of front handle (C) to rear
handle (D).
9. Tighten bolt (E) and (B).
NOTE : If throttle rod is placed over the boss for
bolt (B), pull throttle trigger downward.
10. Install plug (A) to rear handle (D).
STOP
STOP
B
A
E
C
c
D
D
F
G
E
C
D
H
