FUEL SYSTEM
CS-2511TES
251Ts, 251TCs
41
4-15Installingcarburetor

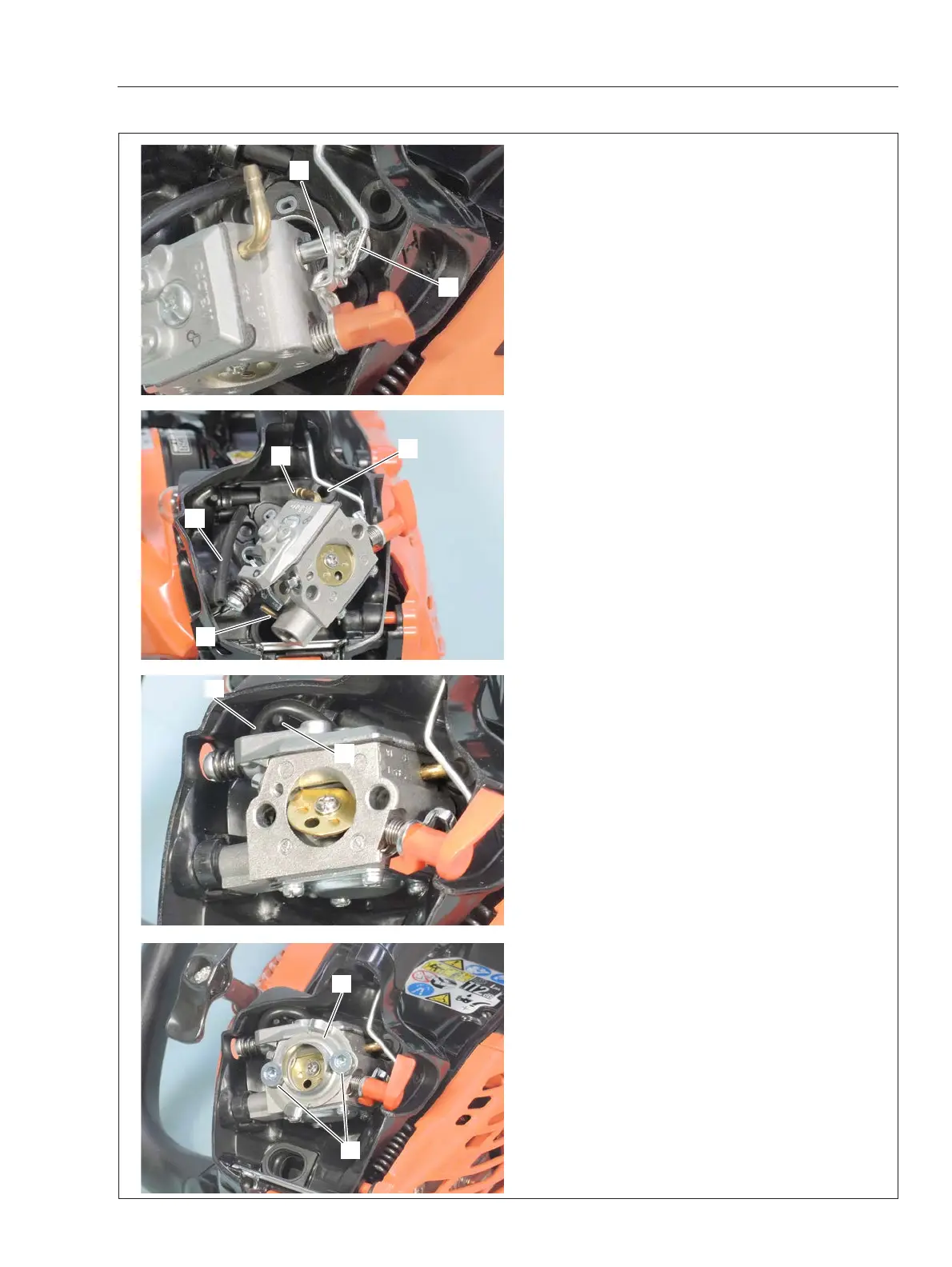

1. Connect throttle rod (A) to throttole lever (B).
2. Connect purge line (C) and joint (D) on carbure-
tor and install fuel inlet (E) to fuel line (F).
3. Pass purge line (C) through tab (G) as shown.
4. Fasten carburetor and carburetor elbow (H) with
two bolts (J).
5. Reassemble removed parts.
A
B
C
E
D
F
H
J
C
G
