Echo CS-2511TES User Manual

MAINTENANCE GUIDE
CS-2511TES
251Ts, 251TCs
82

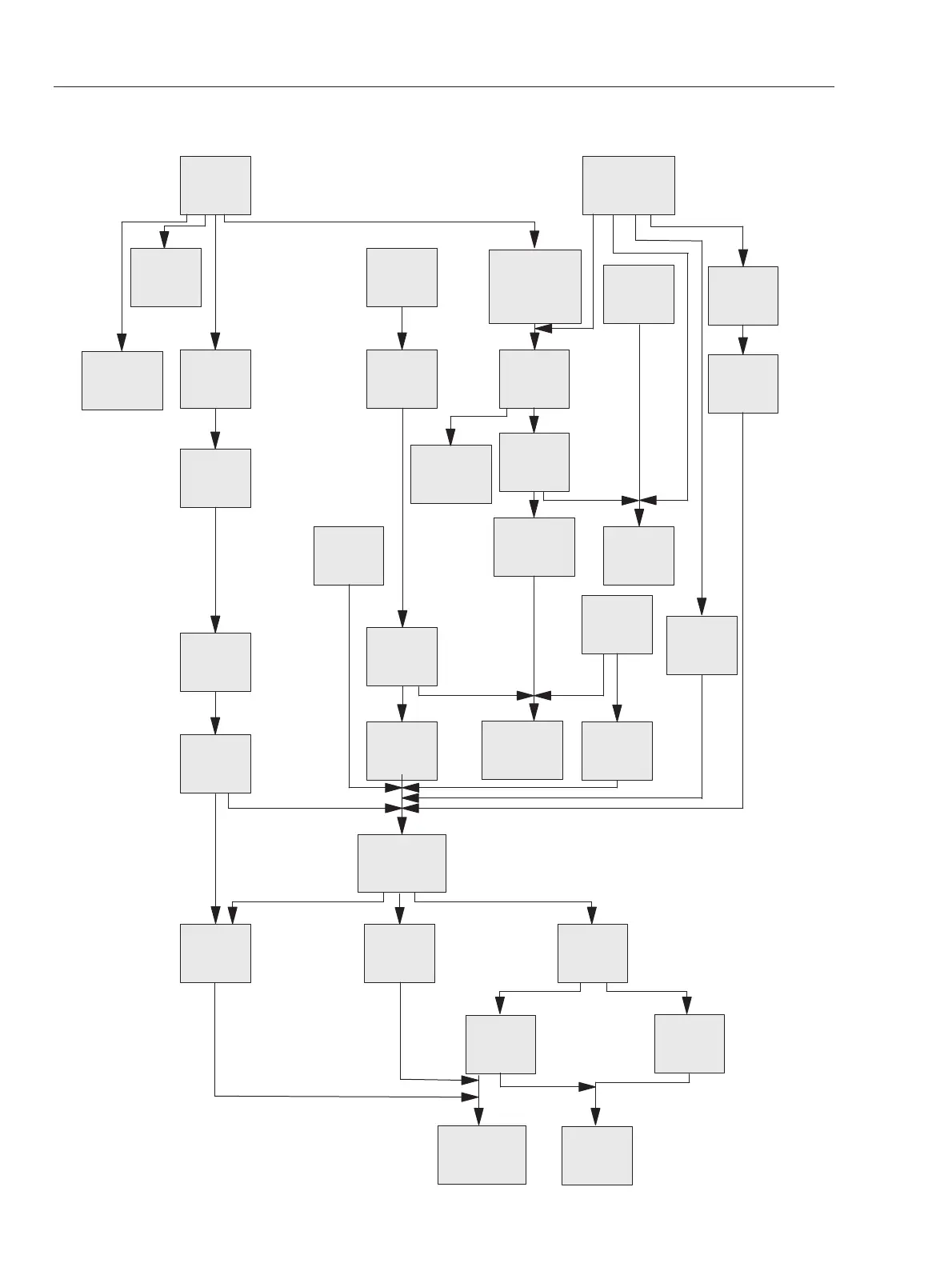

11-2Disassemblychart
Air cleaner
cover
Starter
ASY
Dust
cover
(3-9)
(8-5)
(8-7)
Piston,
Piston ring
Starter
pawl
(2-4)
(2-1)
Intake
bellows
Auto-oiler
ASY
(7-5)
(3-6)
(8-8, 8-10)
Clutch side
oil seal
(8-8, 8-10)
Starter side
oil seal
Air filter
(4-1)
Carburetor
(4-9, 4-15)
Clutch
drum
( 5-1, 5-3)
Ignition
switch
(6-1)
Brake
lever
Rear
handle lid
(9-2)
(8-9, 8-11)
Crankshaft
Spark plug
(3-2, 3-3)
Clutch
ASY
( 5-1 to 5-3)
Sprocket
guard
Throttle
control parts
(9-2)
(7-4)
Worm
gear
Flywheel
Chain brake
parts
Engine block
(8-5)
Cylinder
(8-6)
(3-7)
Ignition
coil
(8-9, 8-11)
Crankcase
(8-10)
Ball bearing
Sprocket guard
plate,
Chain catcher
(6-1)
(6-2)
(10-1)
Chain
tensioner
(9-4)
Rear handle,
springs
Muffler
(8-3)
Muffler
cover
(9-3)
Front handle,
spring

Echo CS-2511TES Specifications

General

Brand	Echo
Model	CS-2511TES
Category	Chainsaw
Language	English
