Echo CS-2511TES User Manual

ENGINE
CS-2511TES
251Ts, 251TCs
56

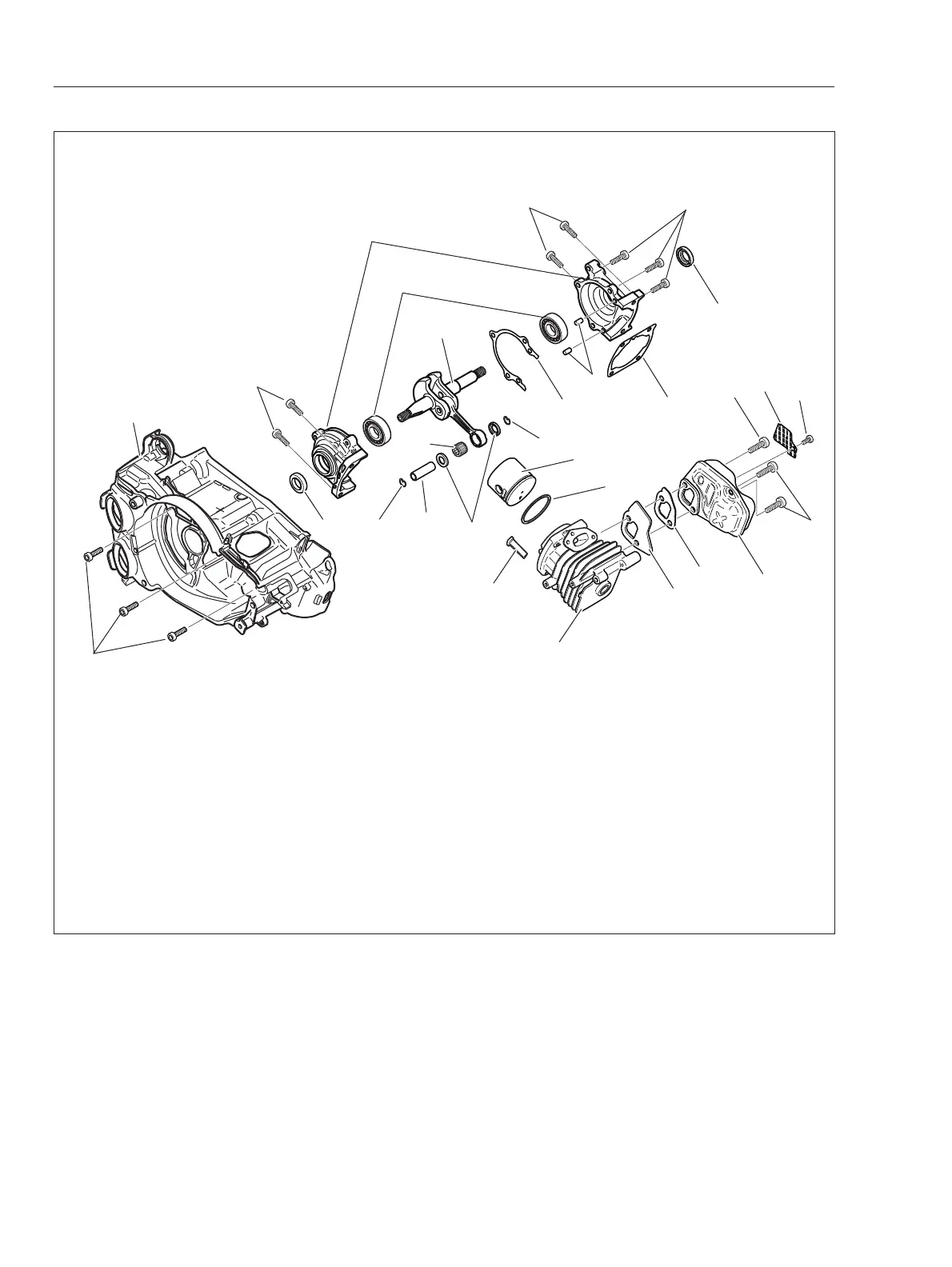

8 ENGINE
(A) Crankcase
(B) Oil seal
(C) Ball bearing
(D) Gasket (Crankcase)
(E) Pin
(F) Bolt (M4)
(G) Crankshaft
(H) Needle bearing
(J) Piston pin spacer
(K) Piston pin
(A)
(D)
(F)
(H)
(K)
(E)
(J)
(L)
(L)
(M)
(N)
(O)
(P)
(R)
(R)
(Q)
(S)
(T)
(U)
(V)
(V)
(W)
(X)
(Y)
(Z)
(L) Snap ring
(M) Piston
(N) Piston ring
(O) Cylinder
(P) Cylinder piece
(Q) Gasket (Cylinder)
(R) Bolt (M4)
(S) Exhaust plate
(T) Exhaust gasket
(U) Mufer
(V) Bolt (M5)
(W) Spark arrester screen
(X) Screw (M4)
(Y) Engine cover
(Z) Bolt (M4)
(B)
(B)
(C)
(G)

Echo CS-2511TES Specifications

General

Brand	Echo
Model	CS-2511TES
Category	Chainsaw
Language	English
