Echo CS-2511TES - Saw Chain Lubrication System; 7-1 Inspecting oil cap and strainer

SAW CHAIN LUBRICATION SYSTEM
CS-2511TES
251Ts, 251TCs
49

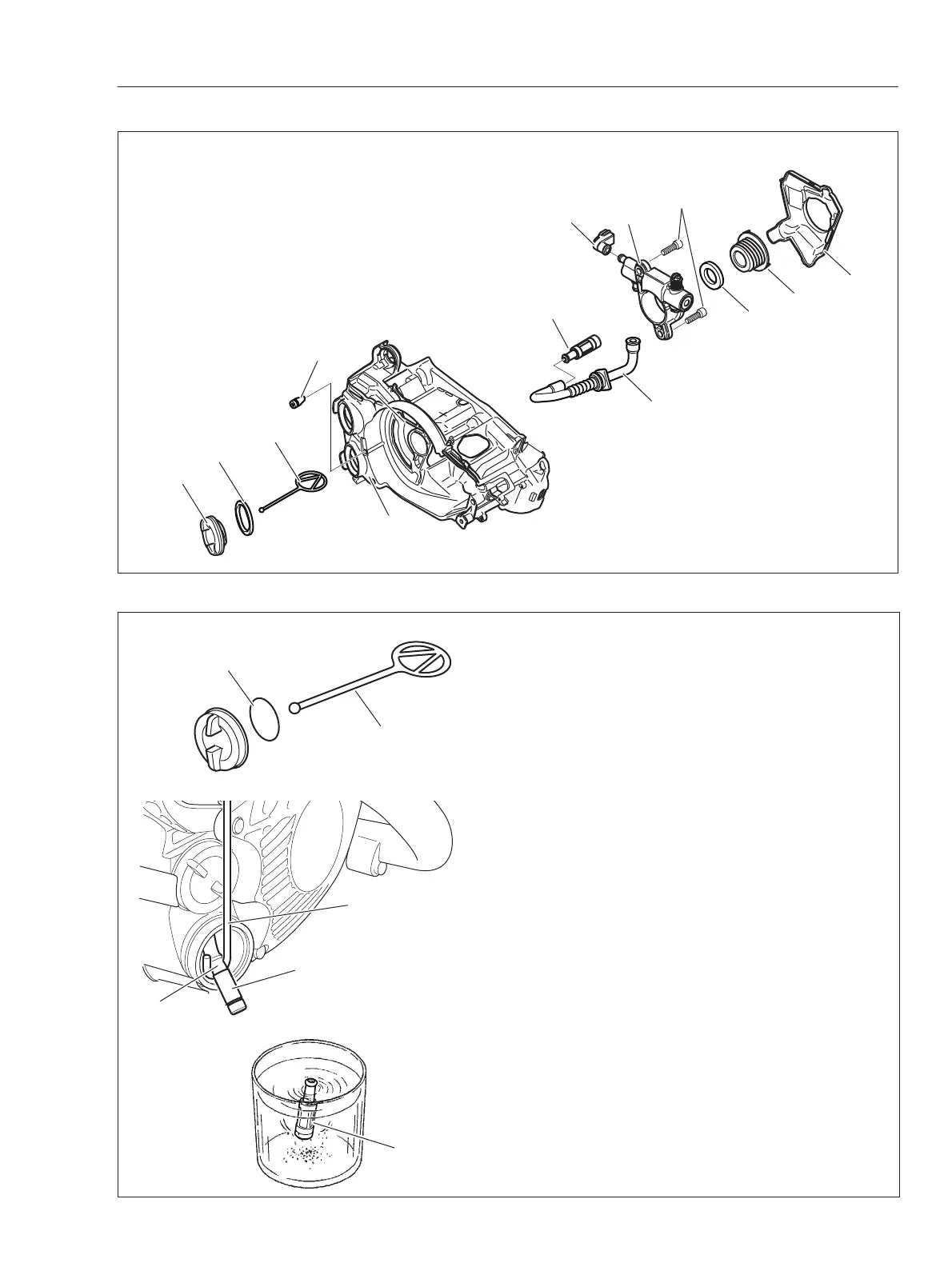

7 SAW CHAIN LUBRICATION SYSTEM
(A) Oil cap
(B) Gasket
(C) Connector
(D) Oil tank
(E) Oil tank vent
(F) Oil strainer
(G) Oil line
(H) Auto-oiler assembly
(J) Oil line
(K) Bolt (M4)
(L) Circular washer
(M) Worm gear
(N) Oiler cover
(F)
(G)
(H)
(A)
(K)
(L)
(K)
(B)
(C)
(E)
(M)
(N)
(D)
7-1 Inspectingoilcapandstrainer
1. Remove oil cap.
2. Inspect oil cap for cracks and gasket (A) for cuts
or damage. Replace worn or damaged parts as re-
quired.
3. Replace connector (B) if damaged.
4. Pull oil strainer (B) from oil tank using a wire
hook (C).
5. Remove oil strainer (B) from oil line (D) and
clean oil strainer in suitable solvent, or replace if
damaged.
B
A
B
B
C
(J)
D
