Echo CS-2511TES User Manual

FUEL SYSTEM
CS-2511TES
251Ts, 251TCs
34
A
b
D
K
A
B
D
K
View : R
R
A
B
K

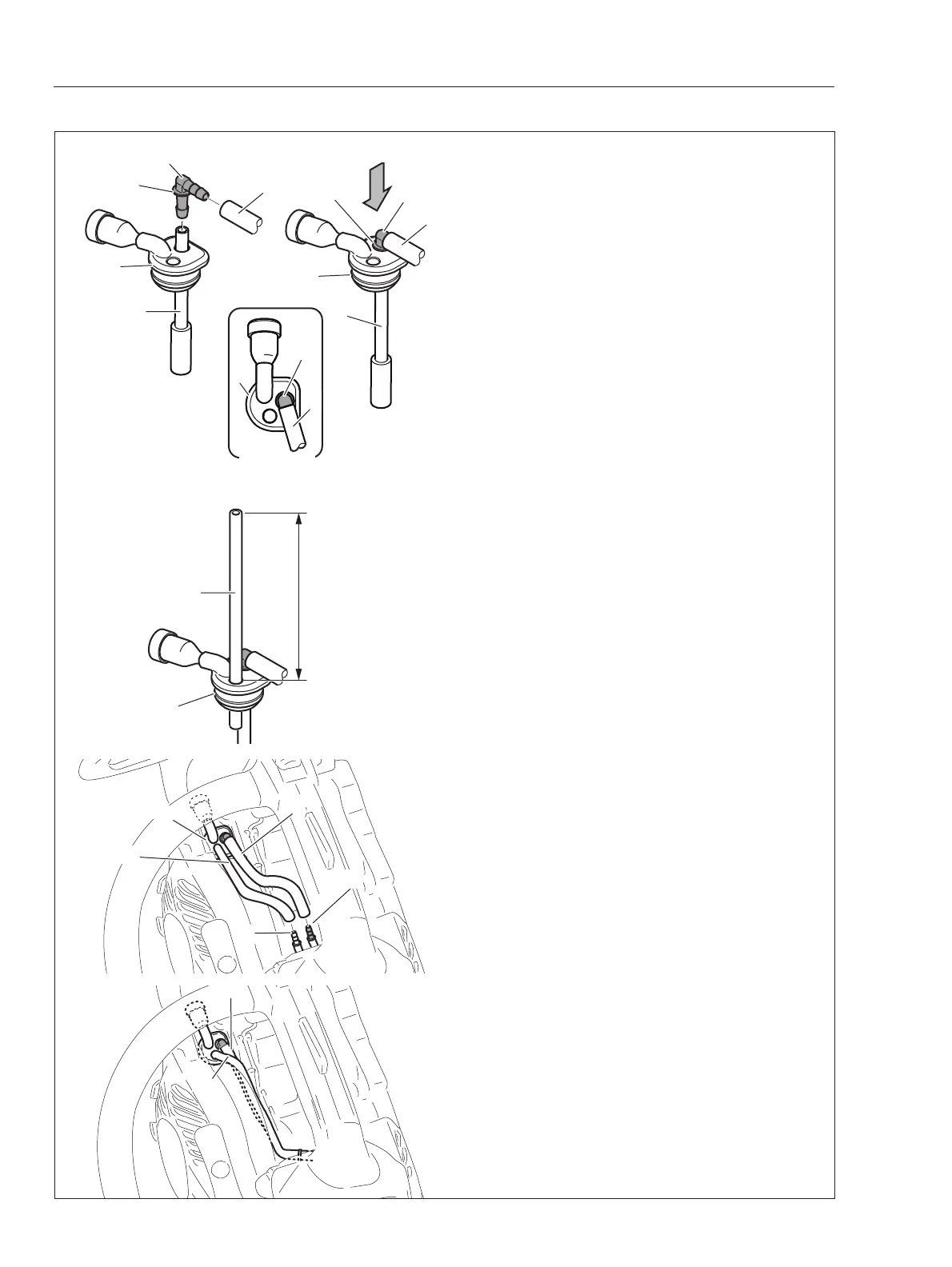

4-7 Replacing fuel line and fuel return line (continued)
13. Reinstall fuel line (D) through grommet (K) as
shown.
14.Connect black joint (B), fuel line (A) and (D),
respectively.
NOTE : Make sure of black joint (B) direction.
15. Pull fuel line (D) toward fuel tank side.
NOTE: Push black joint (B) in grommet (K) as brim
(b) of joint (B) touches grommet (K).
16. Adjust direction of fuel line (A) and joint (B) as
view (R).
17. Reinstall fuel return line (H) through grommet
(K) as shown.
18. Reinstall assembled grommet (K) on the unit
as shown. And connect fuel line (A) to black joint (C)
and fuel return line (H) to white joint (J), respec-
tively.
19. Pass fuel line (A) as shown, then fuel return
line (H) over the fuel line (A).
20. Reassemble removed parts.
H
95 mm (3.7 in)
K
A
C
H
J
K
A
H
B
b
