CHAIN BRAKE SYSTEM
CS-2511TES
251Ts, 251TCs
46

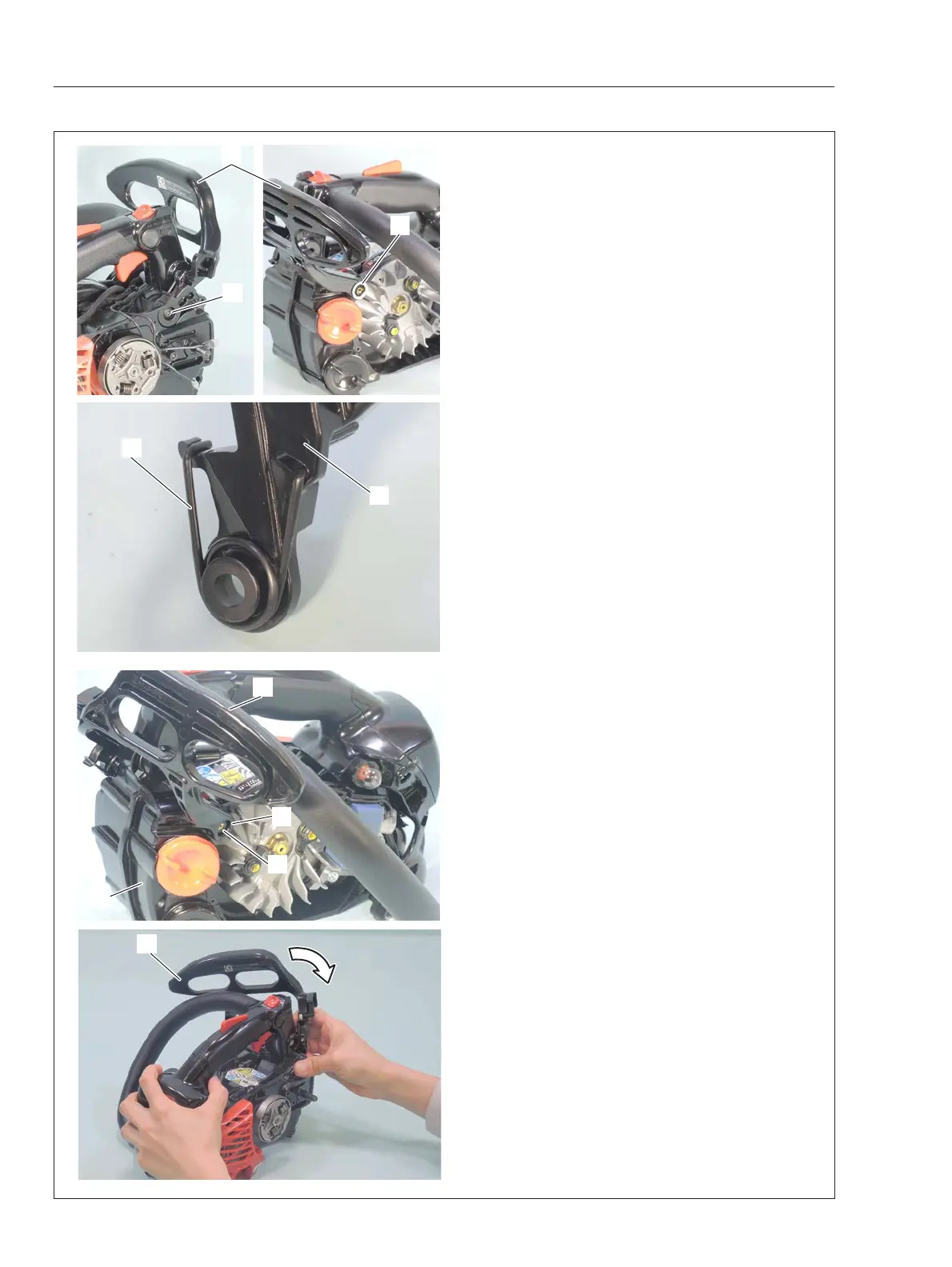

6-1 Replacing brake lever and torsion spring (continued)
3. Remove bolt (D) , collar (E) and brake lever (F).
4. Remove torsion spring (G) from brake lever (F)
5. Check brake lever (F) if broken, and torsion
spring (G) if deformed or broken. Replace with new
part(s) if defective.
{Assembling}
6. Assemble torsion spring (G) as shown.
7. Put hole (f) of brake lever (F) on boss (g) of en-
gine cover (G).
8. Assemble brake lever (F) pulling in direction of
arrow.
9. Tigten bolt (D) and insert collar (E).
10. Reassemble removed parts.
D
F
E
G
F
F
f
g
G
F
