GUIDE BAR MOUNTING SYSTEM
CS-251
1TES
251T
s, 251TCs
76
9-4

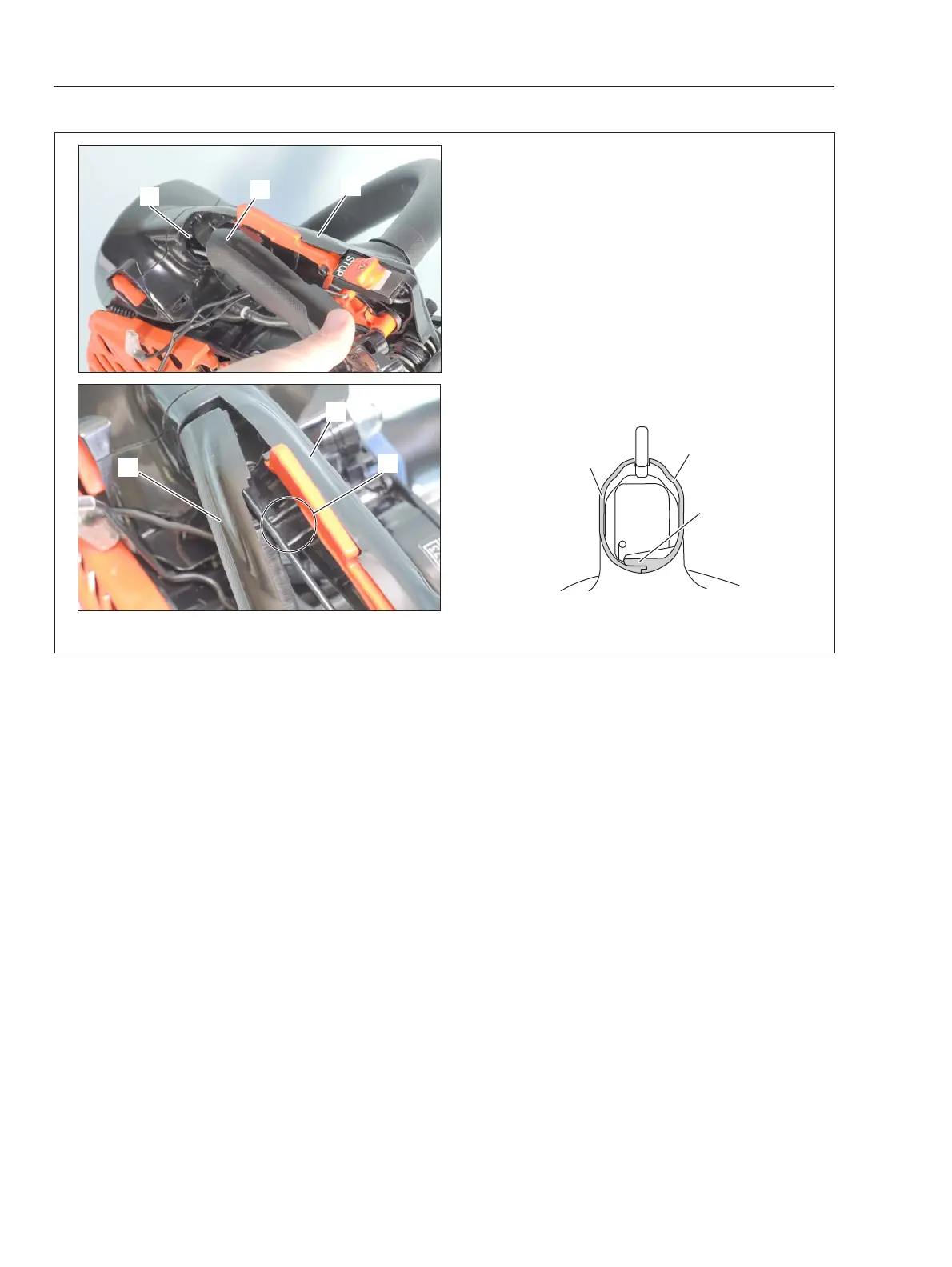

Replacing rear handle and springs (continued)
25. Insert rear part of rear handle lid (N) to hole (g4)
on rear handle (G) as shown.
26.
Assemble rear handle lid (N) as rib (g5) on rear
handle (G) enters into rear handle lid (N)
27.
Assemble removed parts.
Section view
N
g4
G
g5
N
G
g5
N
G
77
79
Table of Contents
Table of Contents
3
Service Information
4
Specifications
4
Technical Data
5
Torque Limits
6
Special Maintenance Materials
6
Service Limits
7
Special Tools
8
STARTER SYSTEM (ES-Start / S-Start)
9
Disassembling Starter Assembly
10
Replacing Starter Rope
11
Assembling Starter
12
Replacing Starter Pawl
14
Ignition System
15
Troubleshooting Guide
16
Testing Spark
17
Inspecting Spark Plug
18
Replacing Spark Plug Cap and Coil
18
Inspecting Ignition Switch
19
Replacing Ignition Switch
19
Replacing Ignition Coil
24
Setting Pole Shoe Air Gaps
25
Inspecting Flyweel and Key
25
Fuel System
27
Inspecting Air Filter
28
Replacing Air Cleaner Cover Latch
30
Inspecting Fuel Cap and Fuel Strainer
30
Inspecting Fuel Tank and Line
31
Inspecting and Replacing Tank Vent
32
Replacing Purge Bulb
34
Replacing Fuel Line and Fuel Return Line
35
Adjusting Carburetor
37
General Adjusting Rules
37
Initial Setting Throttle Adjust Screw, L Mixture Needle and H Mixture Needle
37
Adjusting Carburetor
38
Testing Carburetor
39
Inspecting Crankcase Pulse Passage
40
Inspecting Metering Lever Height
40
Inspecting Inlet Needle Valve
41
Inspecting Diaphragm and Others
42
Replacing Welch Plug
42
Installing Carburetor
43
Clutch System
44
Inspecting Clutch Parts
44
Replacing Clutch Parts
46
Installing Clutch Assembly
46
Chain Brake System
47
Replacing Brake Lever and Torsion Spring
47
Inspecting Chain Brake Parts
49
Saw Chain Lubrication System
51
Inspecting Oil Cap and Strainer
51
Inspecting Oil Tank Vent
52
Inspecting and Replacing Oil Line
53
Inspecting Worm Gear
54
Cleaning and Replacing Auto-Oiler Assembly
55
Engine
58
Testing Cylinder Compression
59
Cleaning Cooling Air Passages
60
Inspecting Muffler and Exhaust Port
61
Testing Crankcase and Cylinder Sealings
62
Removing Engine Block
63
Inspecting Cylinder
64
Inspecting Piston and Piston Ring
65
Replacing Oil Seal
66
Inspecting Crankcase and Crankshaft
67
Replacing Oil Seal and Ball Bearing
68
Assembling Crankshaft and Crankcase
69
Installing Piston Ring and Cylinder
70
Handle and Control System
71
Replacing Lifting Hook
72
Replacing Throttle Control Parts
74
Replacing Front Handle and Spring
75
Replacing Rear Handle and Springs
76
Guide Bar Mounting System
79
Replacing Nut for Fixing Guide Bar
79
Replacing Chain Tensioner
80
Replacing Guide Bar Stud
81
Maintenance Guide
82
Troubleshooting Guide
82
Disassembly Chart
84
Service Intervals
85
