Eclipse 500 User Manual

Section 6. Ice Protection Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
Version 2.0 April 2007 101
6.5.4 Engine Anti-Ice
Engine anti-ice protection is provided by pressurized bleed air directed into a
perforated tube on the inside of each engine inlet cowl. Bleed air entering the tube
heats the cowl, preventing ice formation. This air is then exhausted overboard.

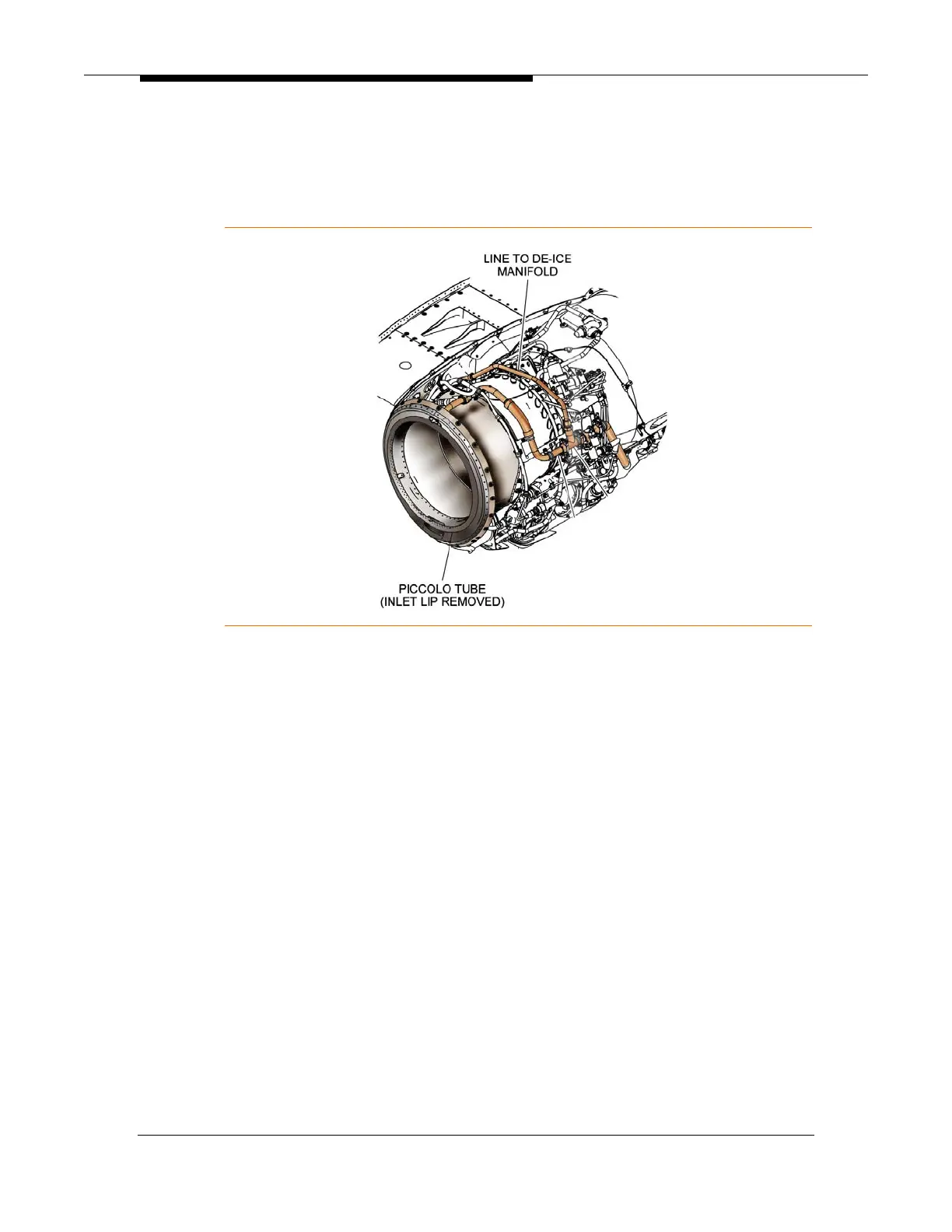

Figure 67. Engine Inlet Anti-Ice
Engine anti-ice is activated by selecting engine anti-ice only (ENG) or both engine
anti-ice and wing de-ice (ENG/WING) on the center switch panel.
An ENG A/ICE ON status message indicates only engine anti-ice is activated. An
ENG/WING ICE PROT ON status message indicates both engine anti-ice and wing
de-ice are activated. Normal operation of the engine anti-ice system is indicated on
the ICE protection synoptic by green engine inlets on the airplane graphic display.
When the system is off, the engines are displayed in black with a white outline.

Eclipse 500 Specifications

General

Manufacturer	Eclipse Aerospace
Model	Eclipse 500
Type	Very Light Jet
Engines	2 × Pratt & Whitney Canada PW610F turbofans
Thrust per engine	900 lbf (4.0 kN)
Wingspan	37.9 ft (11.6 m)
Height	11.0 ft (3.4 m)
Avionics	Avio NG
First Flight	August 26, 2002
Maximum Speed	430 mph
Range	1, 125 nautical miles
Service Ceiling	41, 000 ft (12, 500 m)
Crew	1 or 2
Max Takeoff Weight	6, 000 pounds
Seating Capacity	4-6
Length	33 feet 6 inches
Empty Weight	3, 550 pounds
Payload	Varies with configuration and fuel load
