Section 2. Avio Avionics Suite Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
28 Version 2.0 April 2007

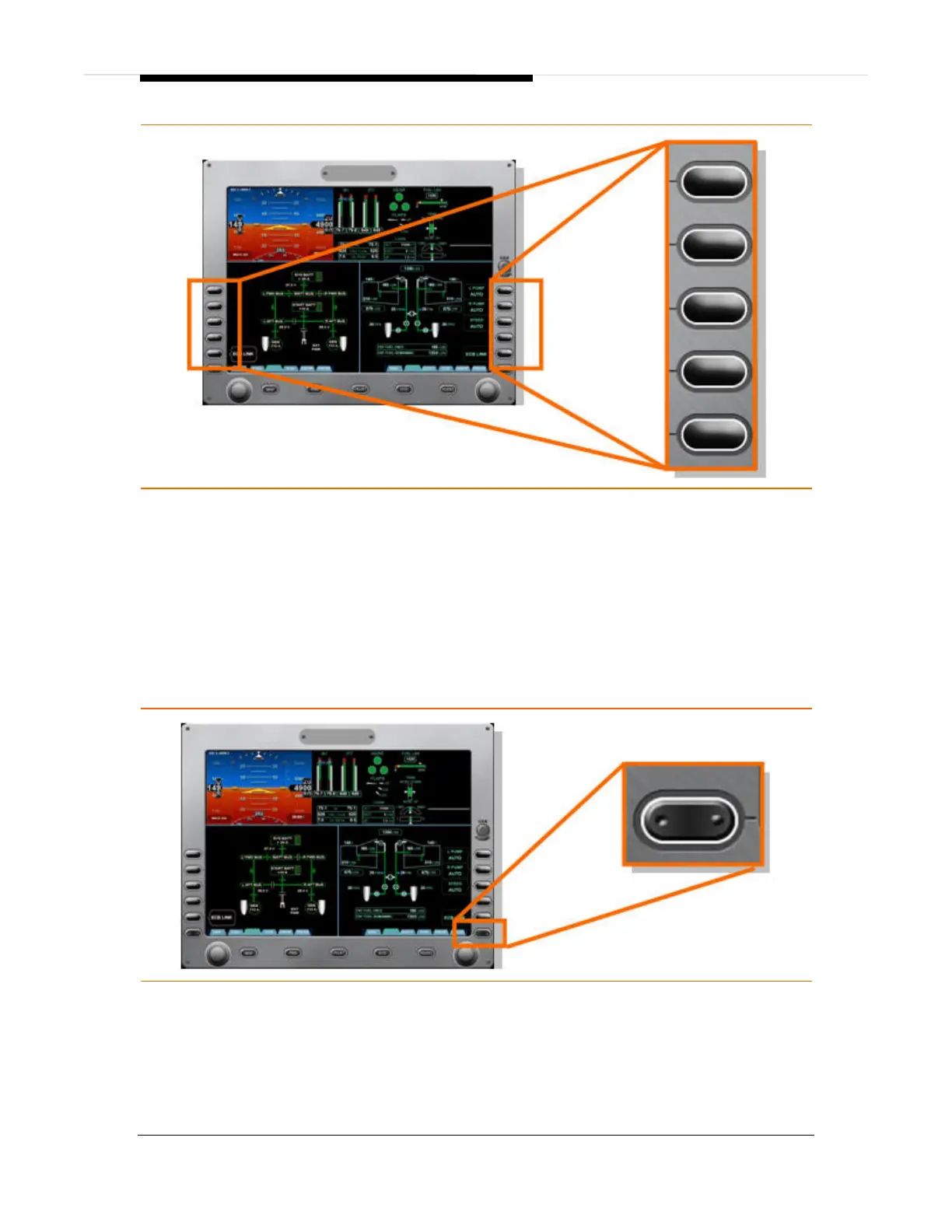

Figure 20. Line Select Key
j. Rocker Keys
The left and right rocker keys allow the pilot to select several pages at the
bottom of the lower right and lower left tiles of the PFD and MFD. These
keys can be pressed once to move the selected page left or right. Holding
down the key allows slow, steady scrolling through the available pages.
Scrolling is not a looping function and once the end of a particular set of
pages is reached, the pilot must scroll back to return to the first page in the
sequence.
Figure 21. Rocker Key
